3-36
Confidential

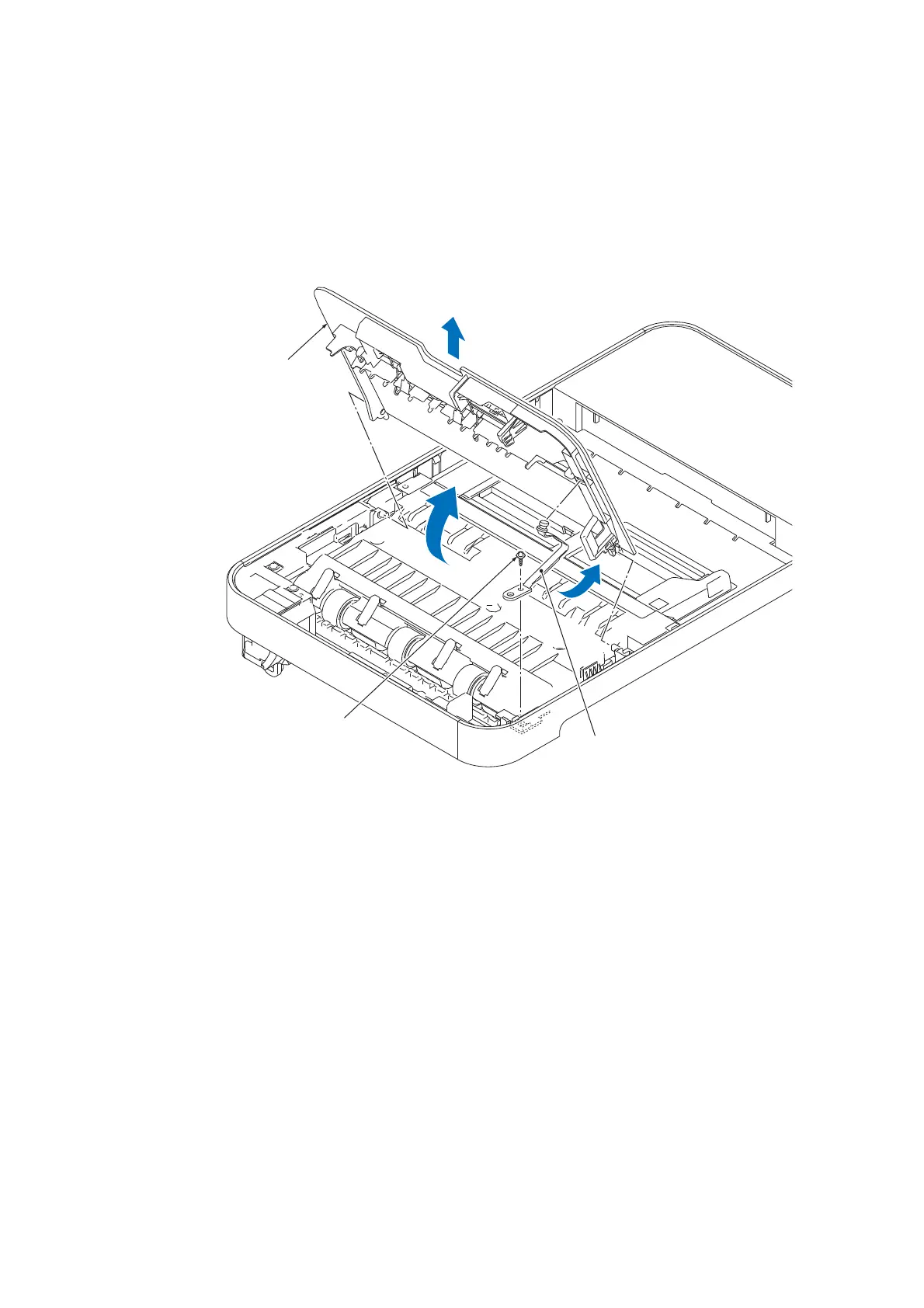

9.3.3 ADF Cover ASSY
(1) Open the ADF cover ASSY, remove the screw (TAPTITE CUP B M3x10), turn the ADF
cover support band 90 degrees and pull it down.
Note: After removing the ADF cover support band, do not open the ADF cover ASSY
exceeding 80 degrees.
(2) Warp the ADF cover to release it from the bosses and remove the ADF cover ASSY.
TAPTITE CUP B M3x10
(3_011_1_E)
ADF cover ASSY
ADF cover support band
