9.33 Paper Feed Motor

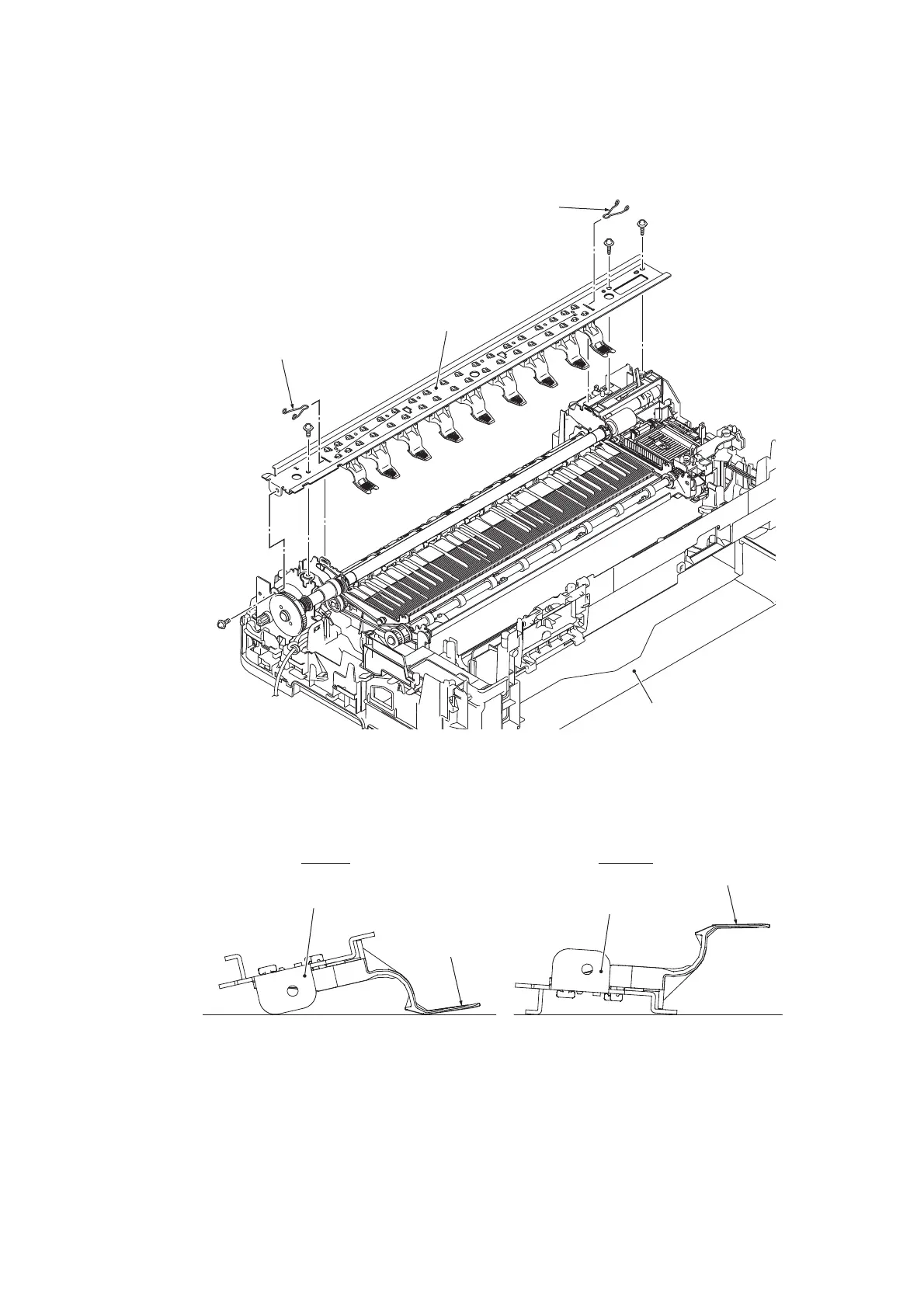

(1) Remove the two screws (TAPTITE CUP B M3x10) and two screws (SCREW BIND
M3x6), remove the two CR guide rail springs, and remove the CR guide rail.
"a": TAPTITE CUP B M3x10
"b": SCREW BIND M3x6
Note: Do not place the removed CR guide rail with the recording paper holder down.
"a"
"a"
"b"
"b"
(Rear)
CR guide rail spring
CR guide rail spring
CR guide rail
(Front)
Lower cover
(3_098_E)
Recording paper holder
Recording paper holder
CR guide rail
CR guide rail
CorrectWrong
(3_099_E)
