3-51
Confidential

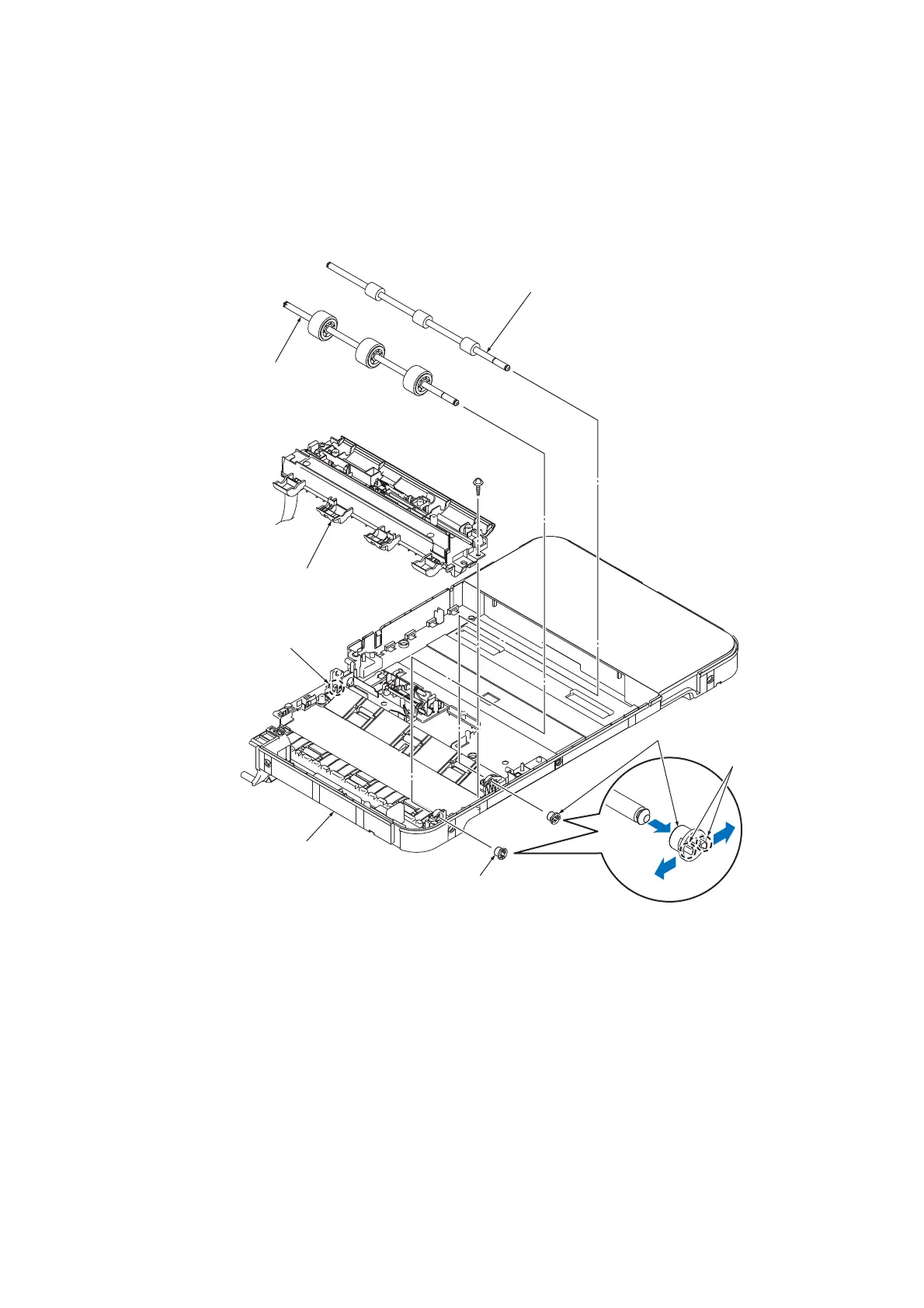

9.3.11 Second Side CIS Unit (Duplex scanning models only)
(1) Release two hooks and remove the lock bushing and document feed roller 1.
(2) Release two hooks and remove the lock bushing and document feed roller 2.
(3) Remove the screw (TAPTITE CUP B M3x10), release the left rear hook, and remove the
lower document chute.
Hooks
Hook
Lock bushing
Lower document chute
Lock bushing
Document feed roller 2
Document feed roller 1
TAPTITE CUP B
M3x10
ADF unit
(3_133_1_E)
