3-37
Confidential
9.3.4 ADF Back Cover, ADF Side Covers R and L, and ADF Front Cover

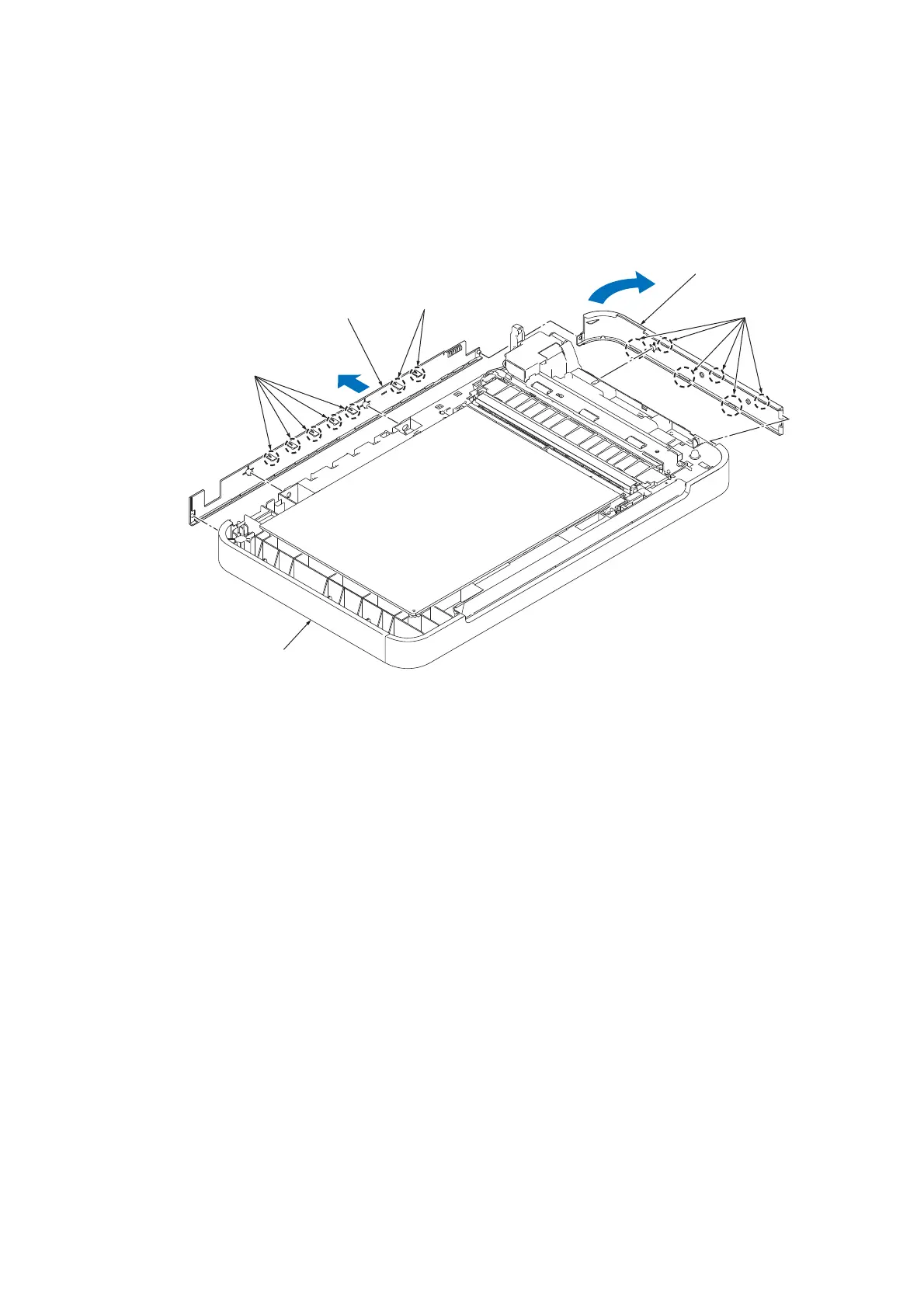

(1) Turn the ADF unit upside down, release the seven hooks on the ADF back cover with a flat
screwdriver, and remove the ADF back cover from the ADF unit.
(2) Hold the rear end of the ADF side cover L and turn it to the front to release the hooks
starting from the rear side, and remove the ADF side cover L.
ADF unit
ADF back cover
ADF side cover L
Hooks
(3_012_E)
Hooks
Hooks
