3-29
Confidential
9.3 ADF Unit

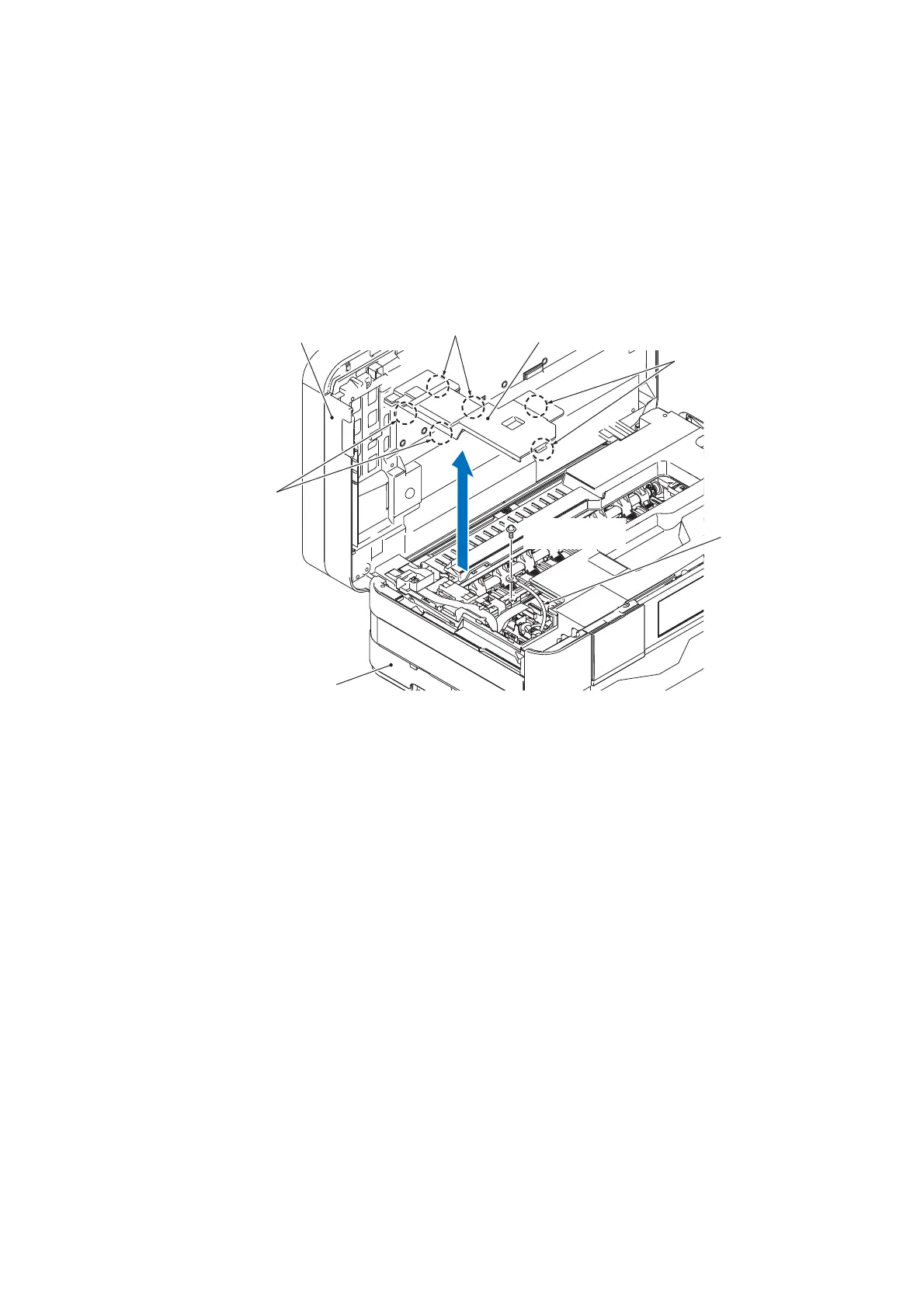

(1) Open the scanner cover, insert the tip of a flat screwdriver into the hooks and lift the
harness cover up and off, starting from the rear and finally pulling out the tab.
(2) Remove the screw (TAPTITE CUP S M3x6) from the grounding wire of the ADF motor
harness.
(3) Disconnect the document detection/document scanning position sensor harness, ADF
motor harness, scanner motor harness and CIS flat cable.
Duplex scanning models: Disconnect also the second side CIS flat cable.
Machine body
Scanner cover
Hooks
Hooks
Grounding
wire
Harness cover
Hooks
TAPTITE CUP S
M3x6
(3_005_E)
To Next Page
