9.32 PF Encoder Disk and PF Encoder Sensor PCB ASSY
(1) Remove the PF encoder disk.
Note: Once removed, the PF encoder disk should be replaced with a new one.
Assembling Note: When attaching the PF encoder disk, using a spatular tool makes the job
easier. Put on clean gloves to protect the disk surface from dust or fingerprints.
(2) Remove the paper feed roller belt.
Assembling Note: When setting the paper feed roller belt, first fit it over the motor gear and
then over the paper feed roller shaft.

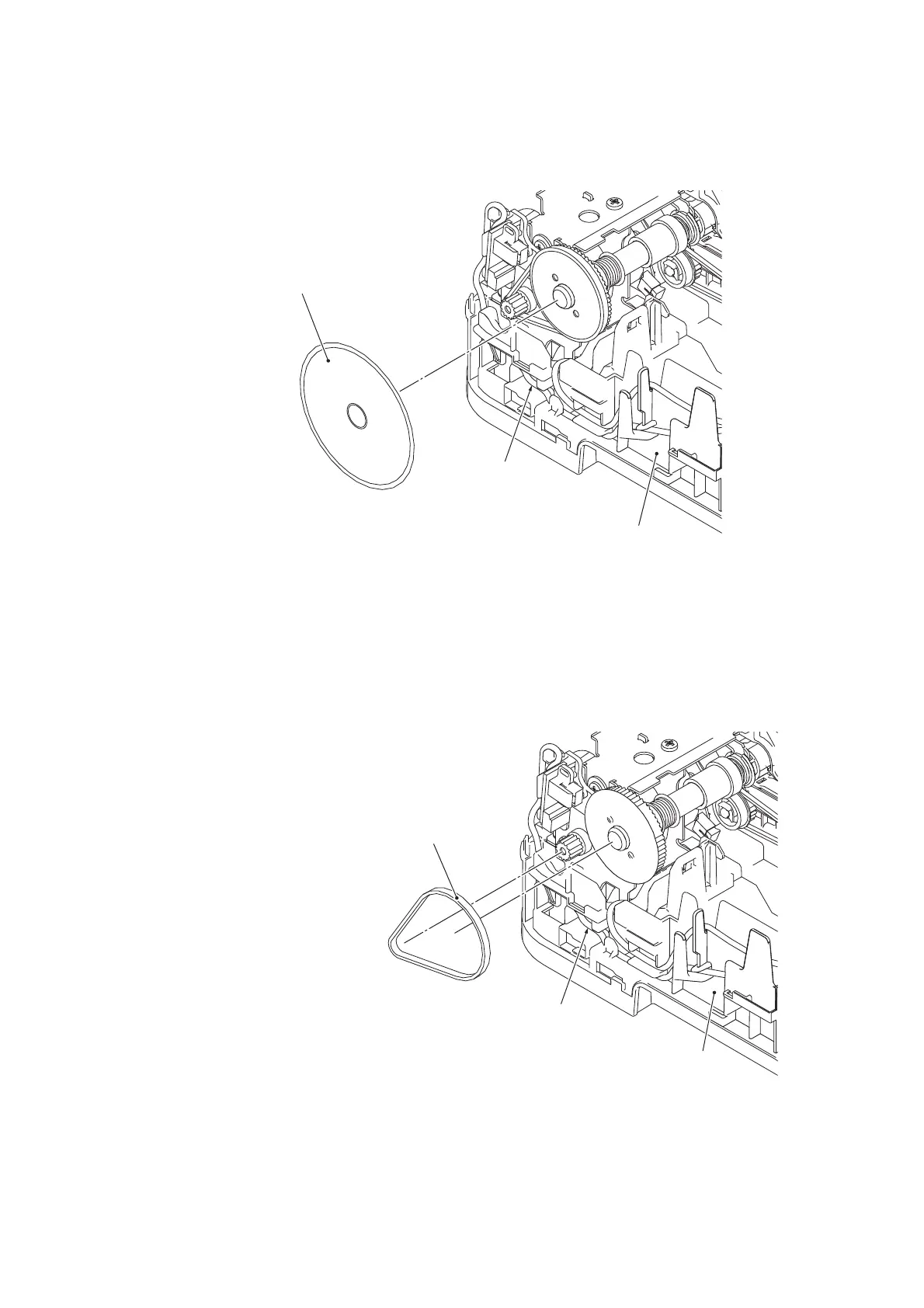

Lower cover
PF encoder harness
PF encoder disk
(3_095_E)
Lower cover
Paper feed roller belt
PF encoder harness
(3_096_1_E)
