Brother MFC-J2310 Service Manual

Confidential
2-9

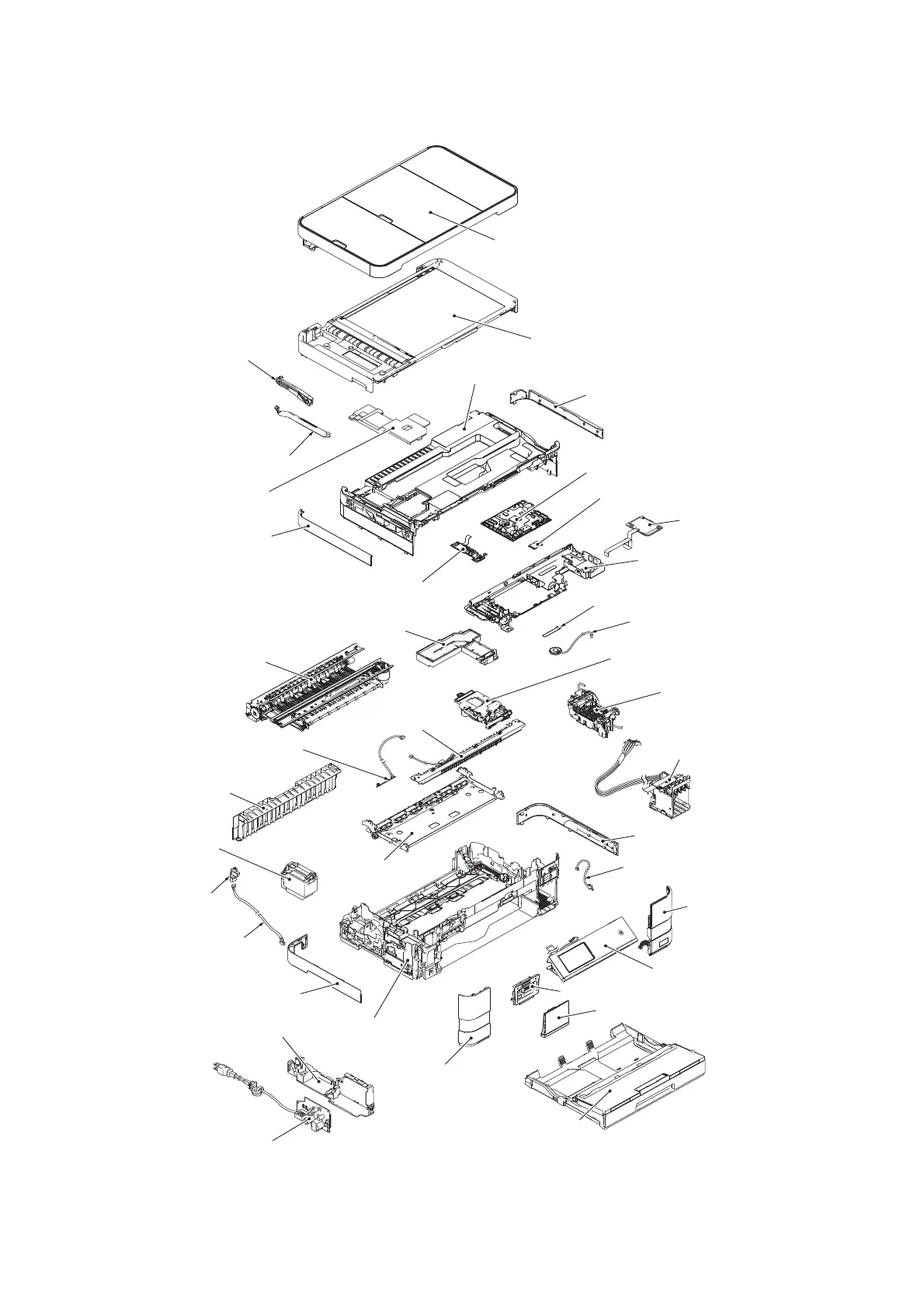

2.5 Components
(BHS13_COMPONENTS_1_E)
ADF unit
Document scanner unit
PF encoder
harness
Lower power
supply frame
Media module cover
Inner media module cover
Ink cartridge
cover
Ink cartridge cover
sensor ASSY
Maintenance unit
Upper side cover R
Upper side cover L
Sensor relay PCB ASSY
Lower side cover L
Lower side cover R
Jam clear cover
Harness cover
Scanner cover support
Scanner cover damper
Registration sensor
PCB ASSY
PF encoder
PCB ASSY
Control panel ASSY
Speaker spring
Speaker
Flushing box
Power supply PCB ASSY
MJ PCB ASSY
Front cover
Wireless LAN PCB ASSY
Paper tray ASSY
Ink refill ASSY
Main PCB frame
Ink absorber box
Engine unit
Switchback
frame ASSY
Frame base
Lower cover
Upper cover
Head/carriage unit
Main PCB ASSY
