Brother MFC-J2310 Service Manual

3-100
Confidential
9.25 CR Encoder Strip
(1) Release the lock of the encoder strip spring and remove the CR encoder strip and the
spring.
Note: Take care not to scratch the CR encoder strip. If it is stained or scratched, replace it with
a new one.
Assembling Note: Set the CR encoder strip so that the -marked end is to the right (carriage
motor side) and the mark points upwards.

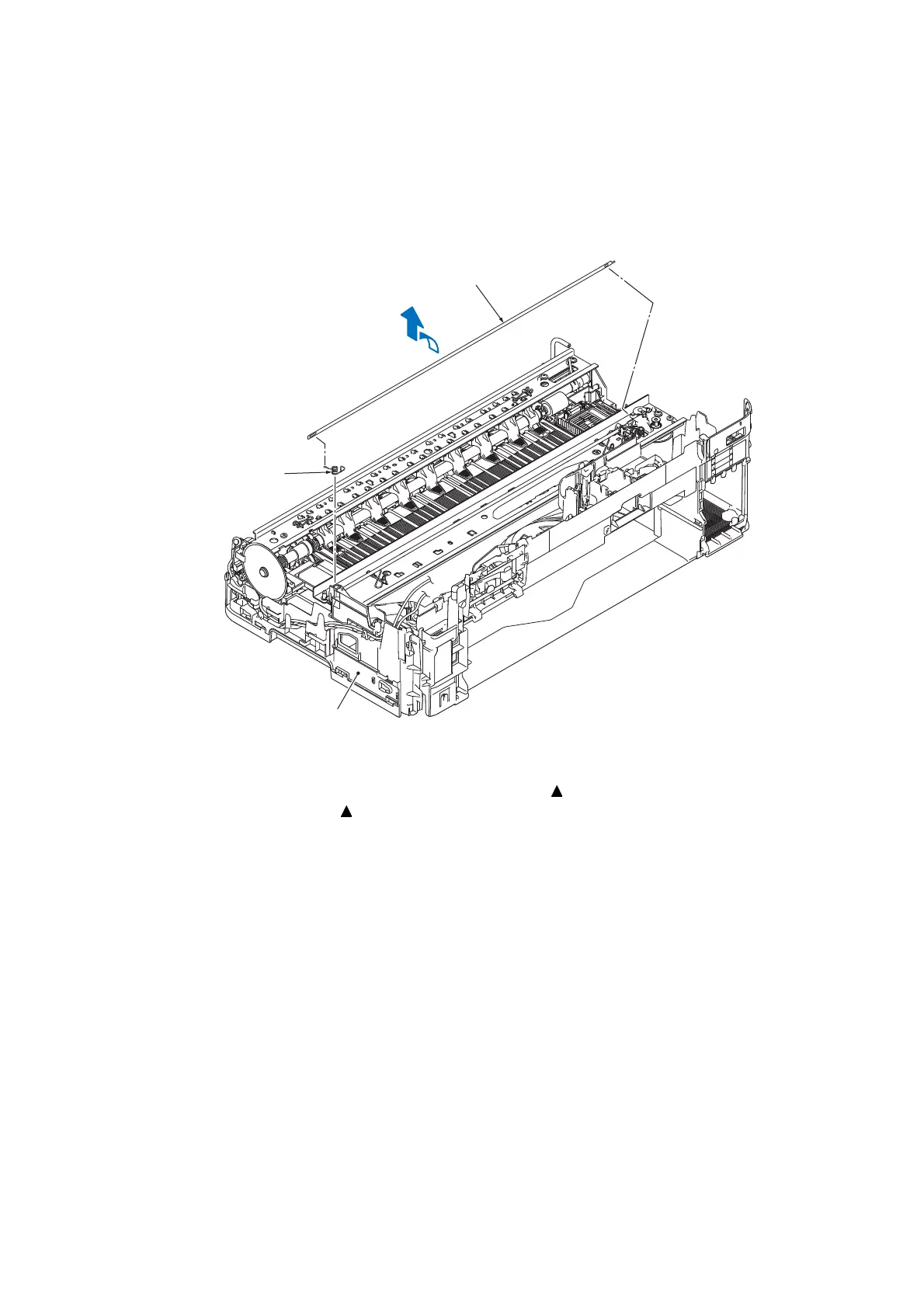

(Rear)
(Front)
Lower cover
CR encoder strip
Encoder strip
spring
(3_082_E)
