3-102
Confidential
9.27 Ink Cartridge Cover Sensor ASSY
(1) Release the wiring of the ink cartridge cover sensor ASSY.
(2) Release the hook and remove the ink cartridge cover sensor ASSY.
Assembling Note: When mounting the ink cartridge cover sensor ASSY, be careful with the
mounting direction.

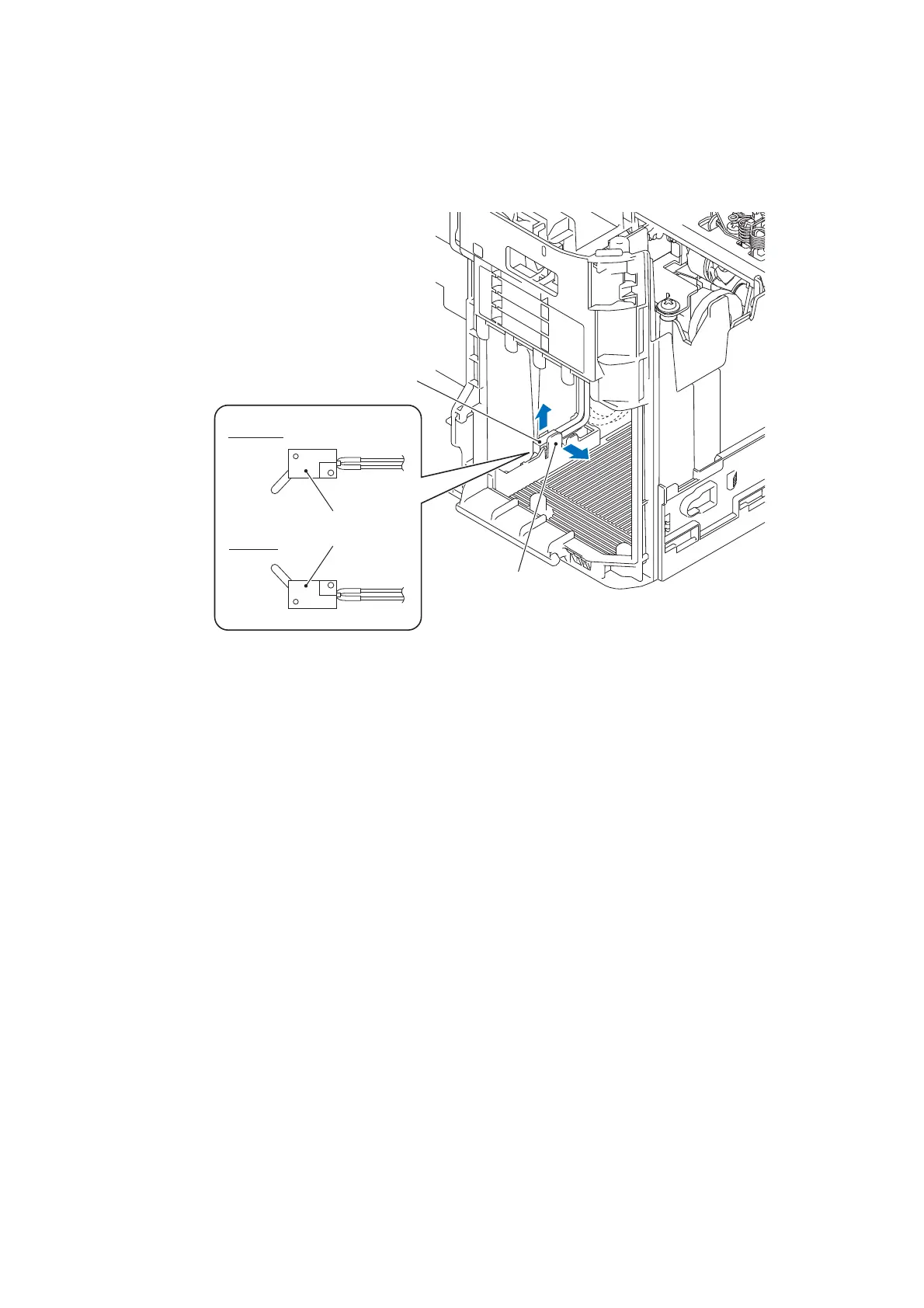

Hook
Ink cartridge cover sensor ASSY
Ink cartridge cover
sensor ASSY
Correct
Wrong
(3_084_E)
