3-119
Confidential
9.37 Maintenance Unit

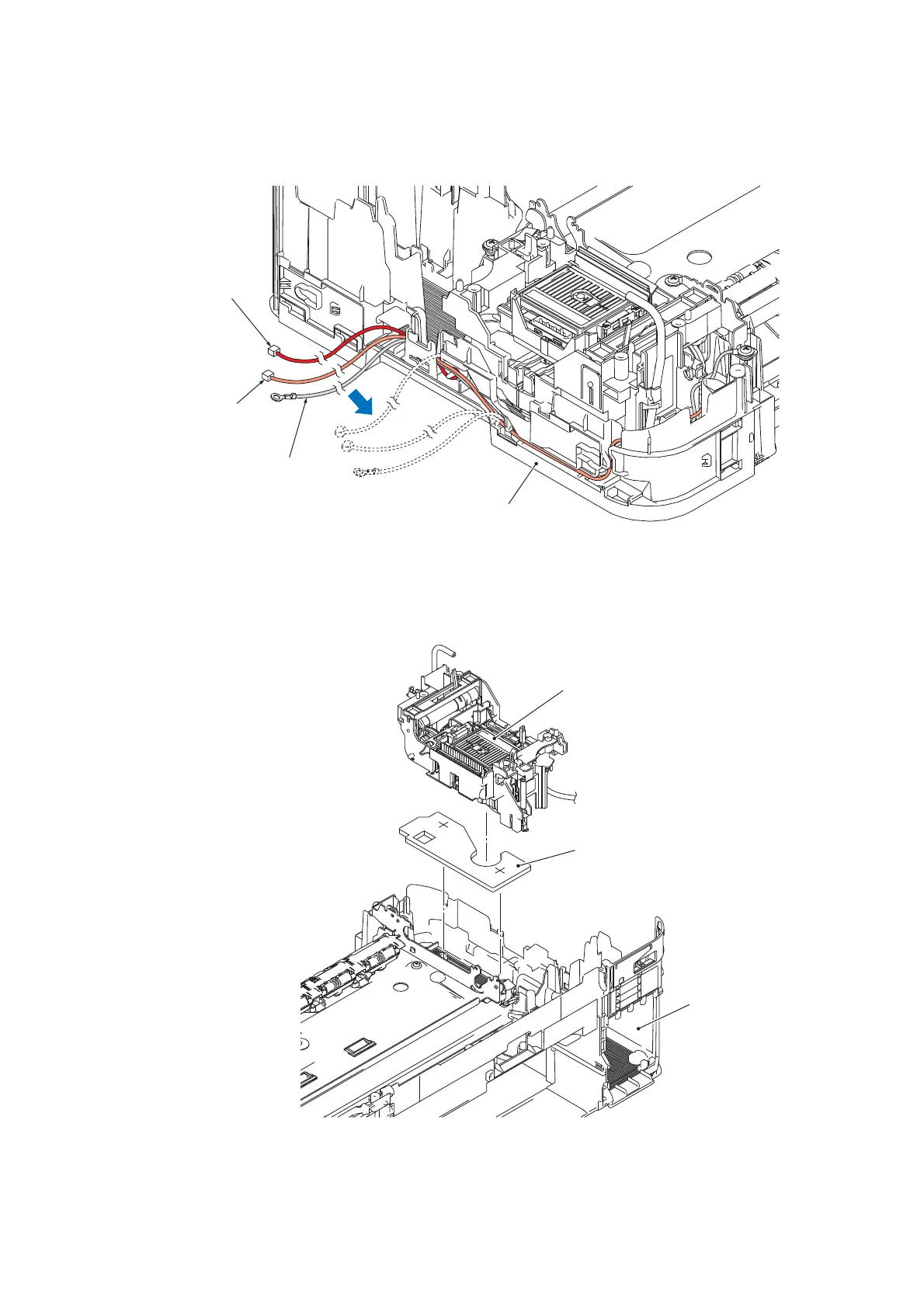

(1) Release the wiring of the harnesses.
(2) Remove the maintenance unit.
(3) Remove the ink absorber felt (for maintenance unit).

(Rear)
Lower cover
Purge cam
sensor harness
Registration
sensor harness
FG wire
(3_107_E)
(Rear)
(Front)
Lower cover
Ink absorber felt
(for maintenance unit)
Maintenance unit
(3_108_E)
