3-93
Confidential

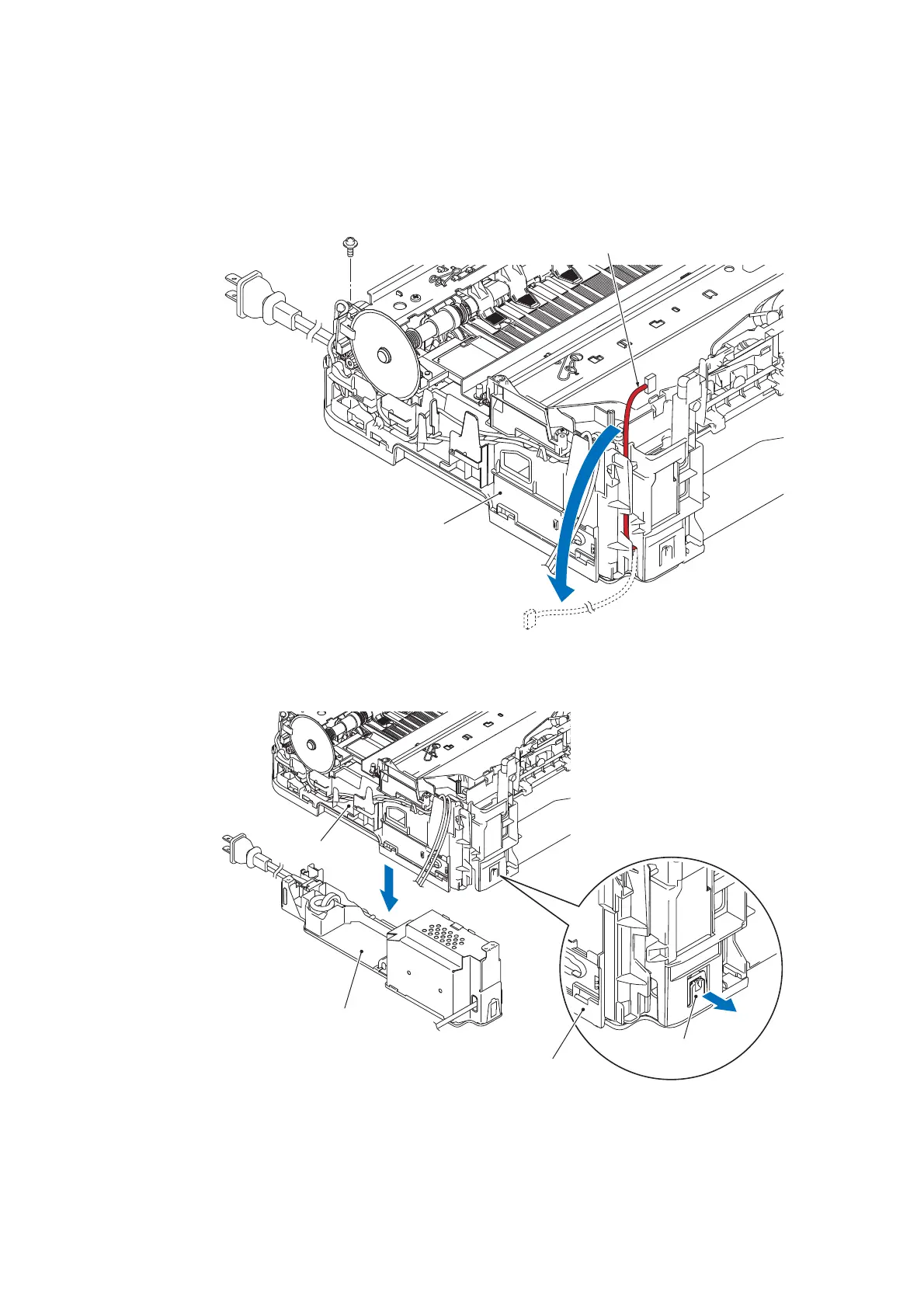

9.22 Power Supply PCB ASSY
(1) Release the wiring of the power supply PCB ASSY.
(2) Remove the screw (TAPTITE CUP S M3x6).
(3) Release the hook and remove the power supply unit from the bottom of the lower cover.
TAPTITE CUP S M3x6
Power supply harness
(Rear)
(Front)
Lower cover
(3_072_E)
(Rear)
(Front)
Lower cover
Power supply unit
Hook
Lower cover
(3_073_E)
