Brother MFC-J2310 Service Manual

3-44
Confidential

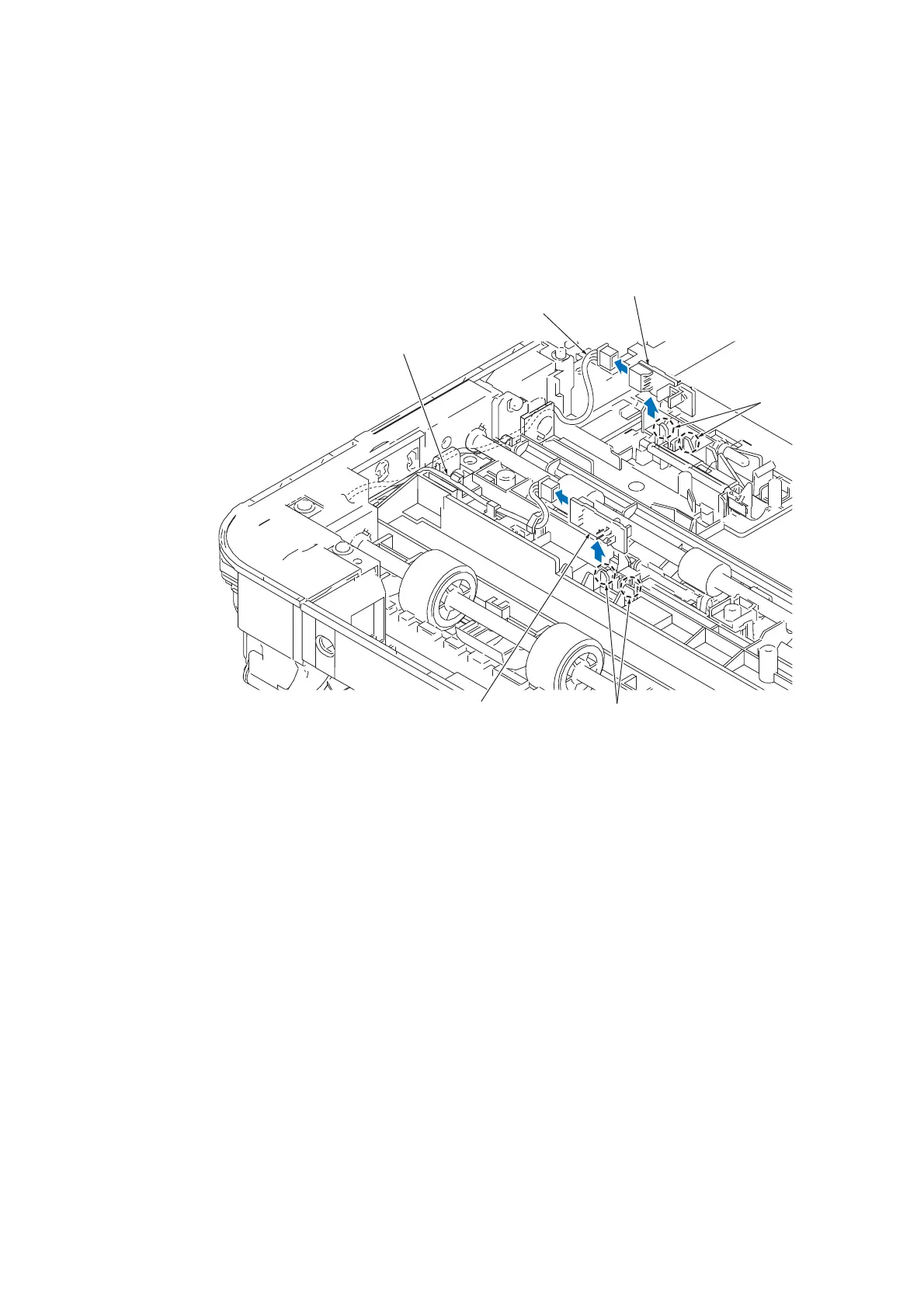

9.3.8 Document Detection Sensor PCB and Document Scanning Position Sensor PCB
(1) Disconnect the document detection sensor harness from the document detection sensor
PCB and the document scanning position sensor harness from the document scanning
position sensor PCB.
(2) Open the two hooks and remove the document detection sensor PCB.
(3) Open the two hooks and remove the document scanning position sensor PCB.
Assembling Note: Mount the document detection sensor PCB and the document scanning
position sensor PCB to the holders by pressing the sensor section of each PCB.
Document scanning position sensor harness
Document detection sensor PCB
Document scanning position sensor PCB
Hooks
Hooks
Document detection sensor harness
(3_020_1_E)
