Confidential
2-4
2OVERVIEW

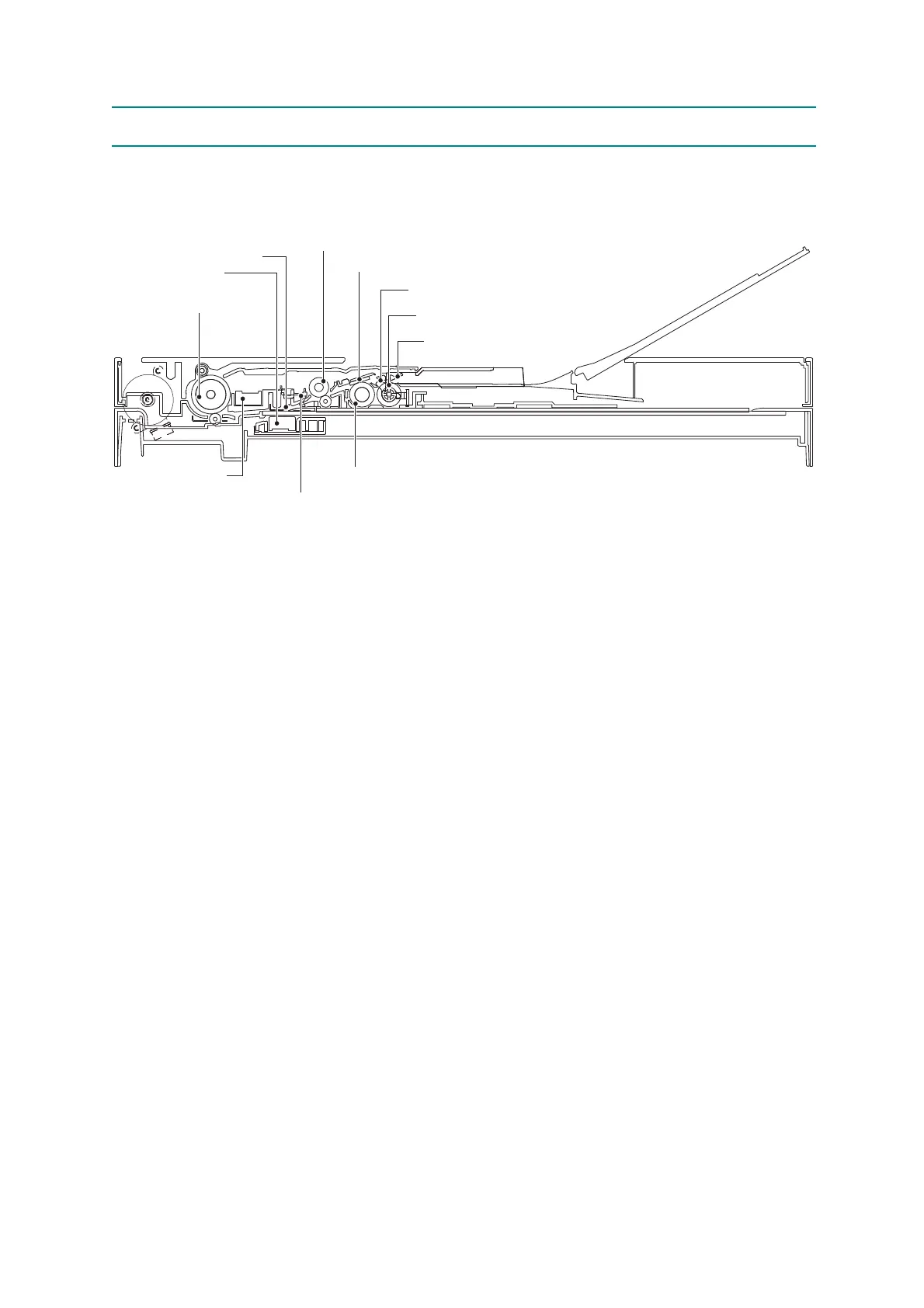

2.1 Cross-section Drawings
2.1.1 Document scanning
Document feed roller 2
Second side CIS
unit
Document scanning position actuator
Document separation roller
First side CIS unit
Document feed roller 1
ADF separation pad
Document detection actuator
Document pick-up roller
Document nip piece
Document pressure bar
