3-78
Confidential
9.20 Head/Carriage Unit and CR Timing Belt

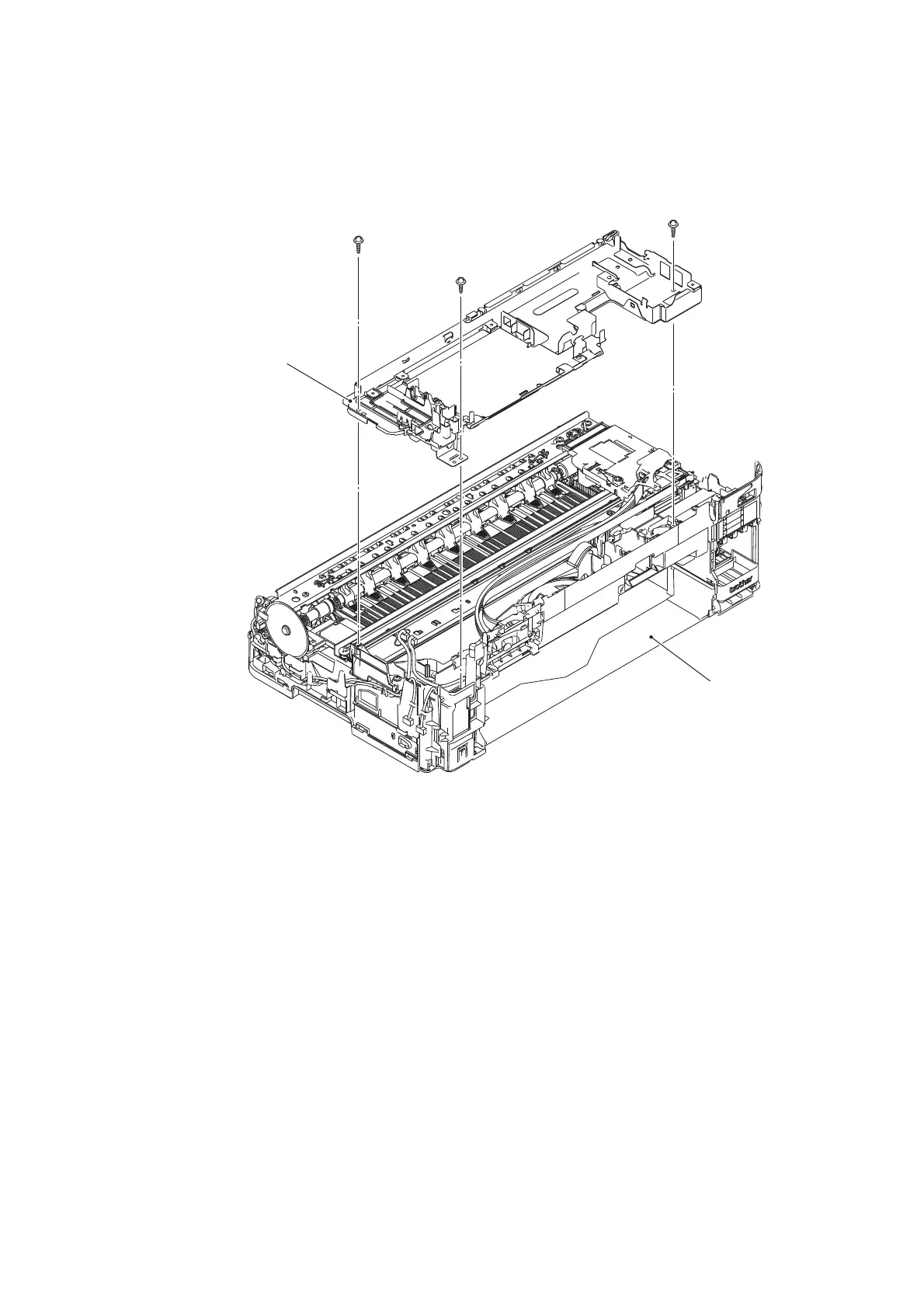

(1) Remove two screws (TAPTITE CUP B M3x10) and one screw (TAPTITE CUP S M3x6)
and take off the main PCB frame.
TAPTITE CUP B M3x10
TAPTITE CUP S M3x6
TAPTITE CUP B M3x10
Lower cover
(Front)
(Rear)
Main PCB frame
(3_058_E)
