9.9 Lower Side Covers R and L
(1) Open the jam clear cover.
(2) Release the hook on the lower side cover R and slide the cover R to the rear.

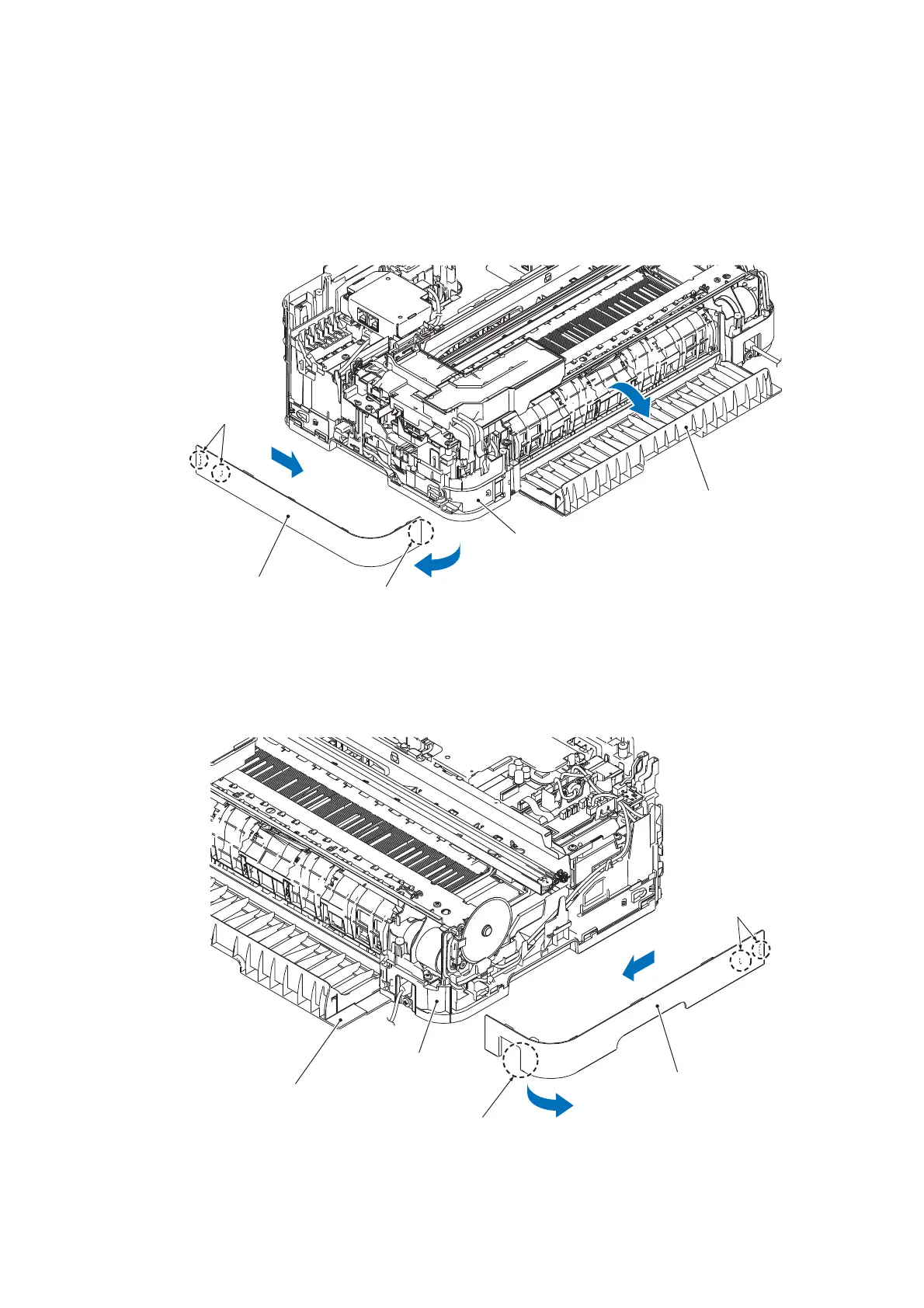

(3) Put your fingers on the lower side cover R at the section indicated in the illustration below,
pull the lower side cover R to the rear and slide it off outwards.
(4) Release the hook on the lower side cover L and slide cover L to the rear.
(5) Put your fingers on the lower side cover L at the section indicated in the illustration below,
pull the lower side cover L to the rear and slide it off outwards.
Put your fingers here.
(Rear)
(Front)
Lower cover
Lower side cover R
Jam clear cover
Hook
(3_040_E)
Put your fingers here.
(Rear)
(Front)
Lower cover
Hook
(3_041_E)
Lower side cover L
Jam clear cover
