3-11
Confidential

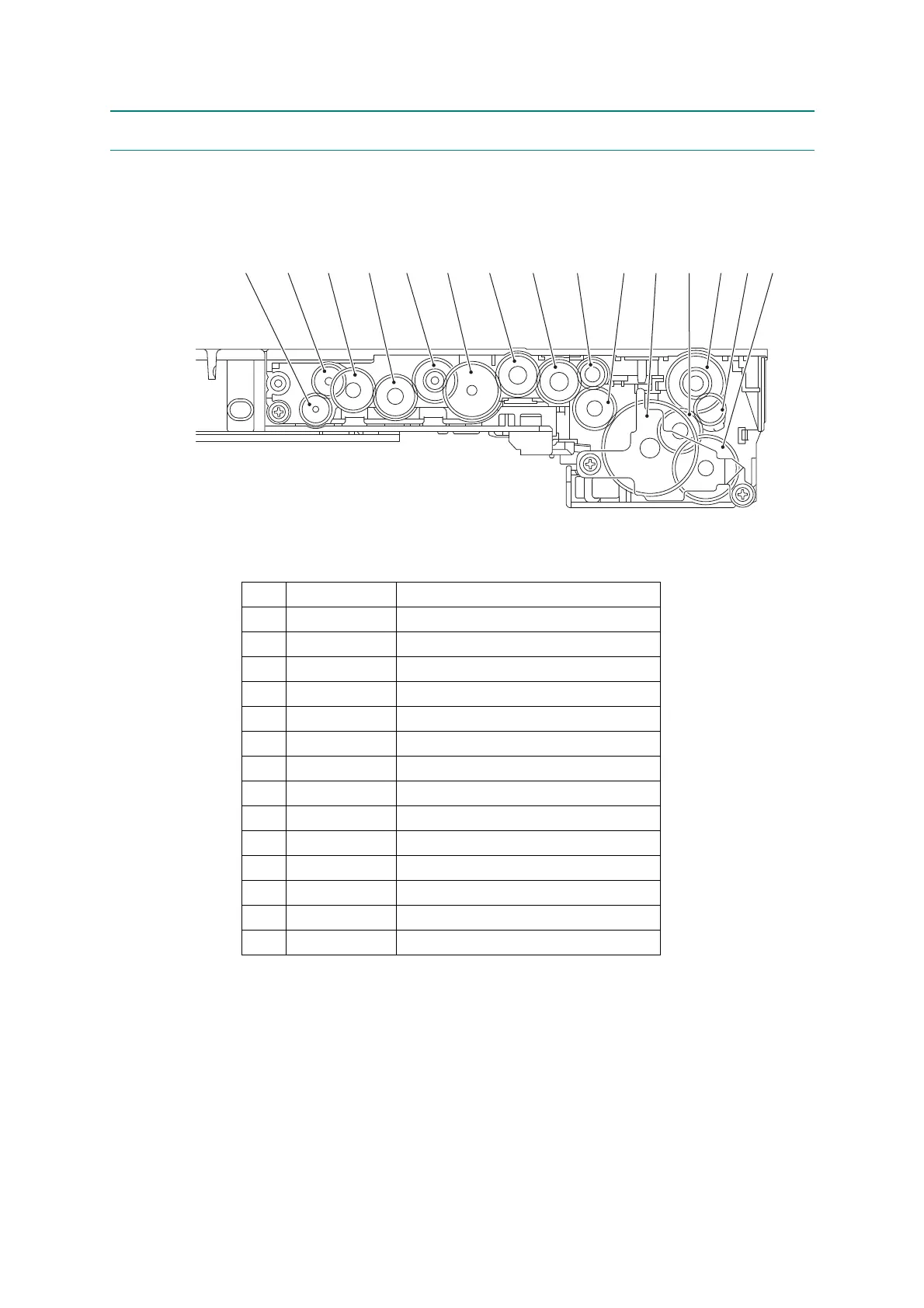

6 OVERVIEW OF GEARS
ADF
1 LED198001 GEAR 23
2 LED197001 GEAR 16/32
3 LED200001 LF ROLLER GEAR 31
4 LED197001 GEAR 16/32
5 LED199001 GEAR 41
6 LED196001 GEAR 31
7 LED196001 GEAR 31
8 LED195001 GEAR 20
9 LED200001 LF ROLLER GEAR 31
10 LED194001 GEAR 70
11 LP1410001 PLANET ARM ASSY
12 LED192001 GEAR 20/31
13 LED193001 GEAR 18/48
14 LED201001 SEPARATE ROLLER GEAR
15 LED191001 GEAR 20/54
114 2 3 4 5 6 7 8 9 10 12 11 1315
(3_119_E)
