3-39
Confidential
9.3.5 ADF Separation Pad Holder ASSY

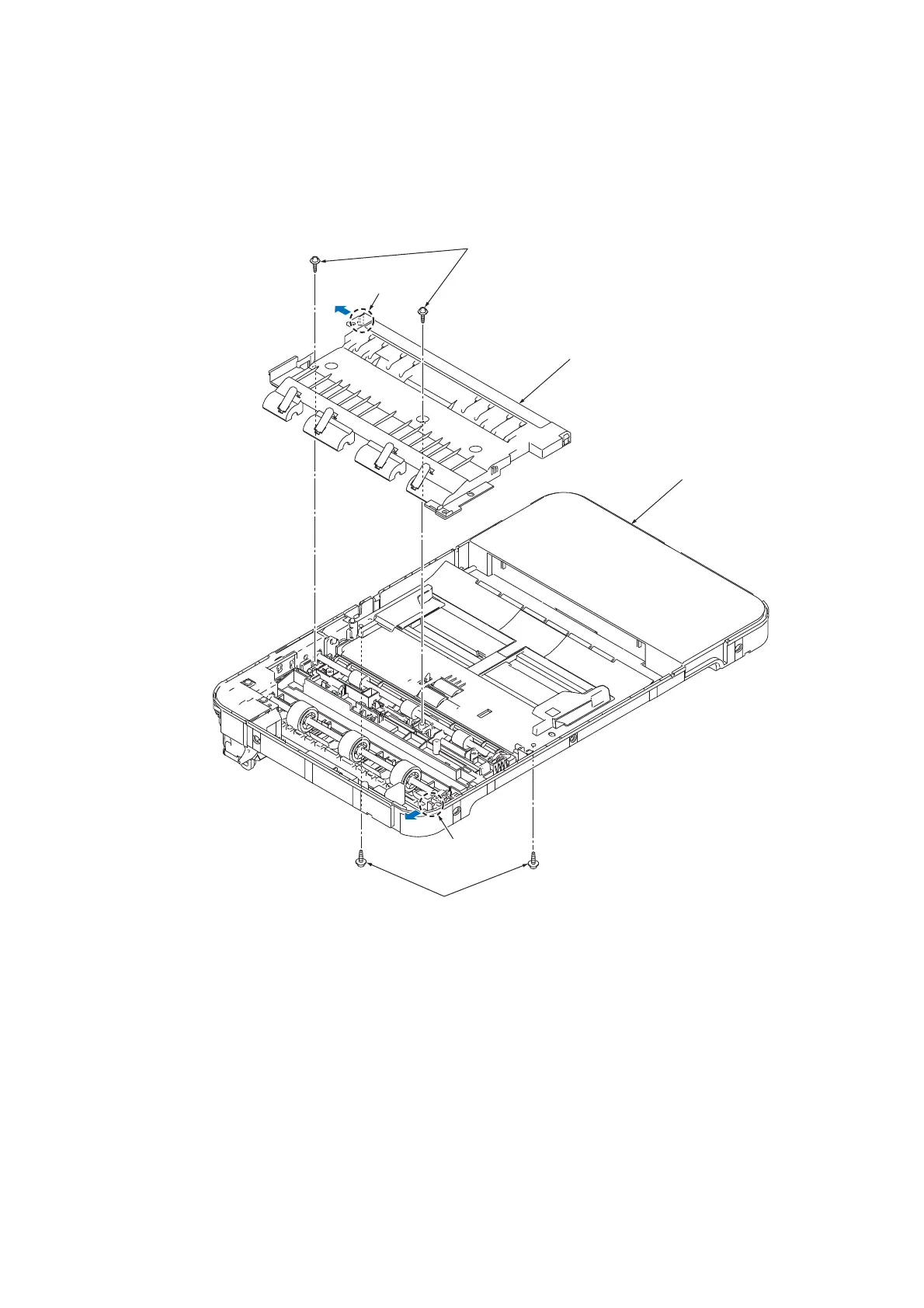

(1) Remove the four screws (TAPTITE CUP B M3x10), two screws each from the bottom and
top of the ADF unit.
(2) Release the two hooks and remove the upper document chute.
TAPTITE CUP B M3x10
ADF unit
TAPTITE CUP B M3x10
Upper document chute
Hook
Hook
(3_014_E)
