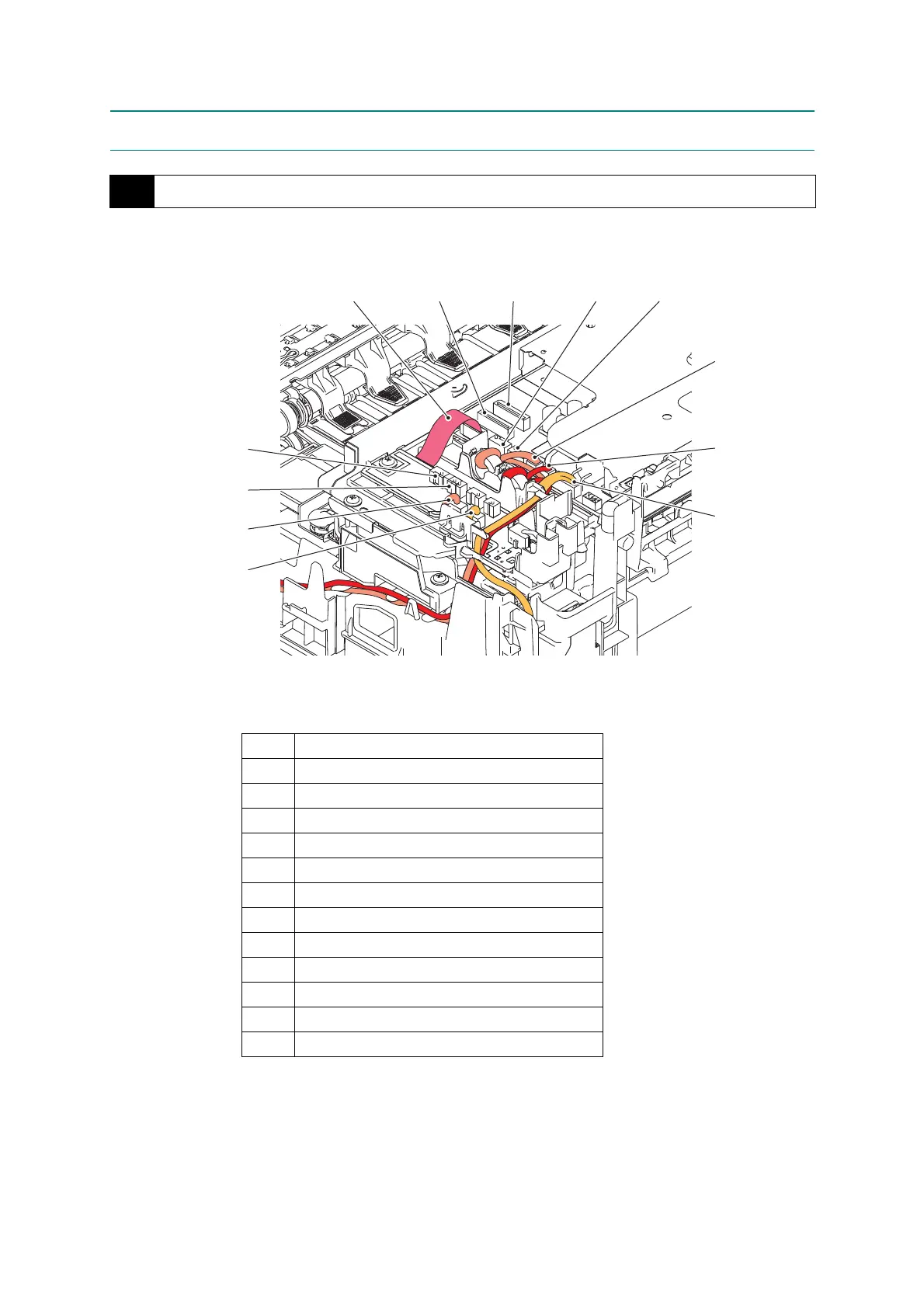

7 ROUTING OF HARNESSES AND INK SUPPLY TUBES
1 Sensor relay PCB ASSY and main PCB ASSY
No. Harness name
1 Sensor relay PCB flat cable
2 Document scanning position sensor harness
3 Document detection sensor harness
4 PF encoder sensor harness
5 Switchback sensor harness
6 Power supply PCB harness
7 Second side CIS flat cable
8 First side CIS flat cable
9 Scanner motor harness
10 ADF motor harness
11 Carriage motor harness
12 Paper feed motor harness
1
2
3
4
5
78 910
11
12
6
(3_120_E)
