3-60
Confidential

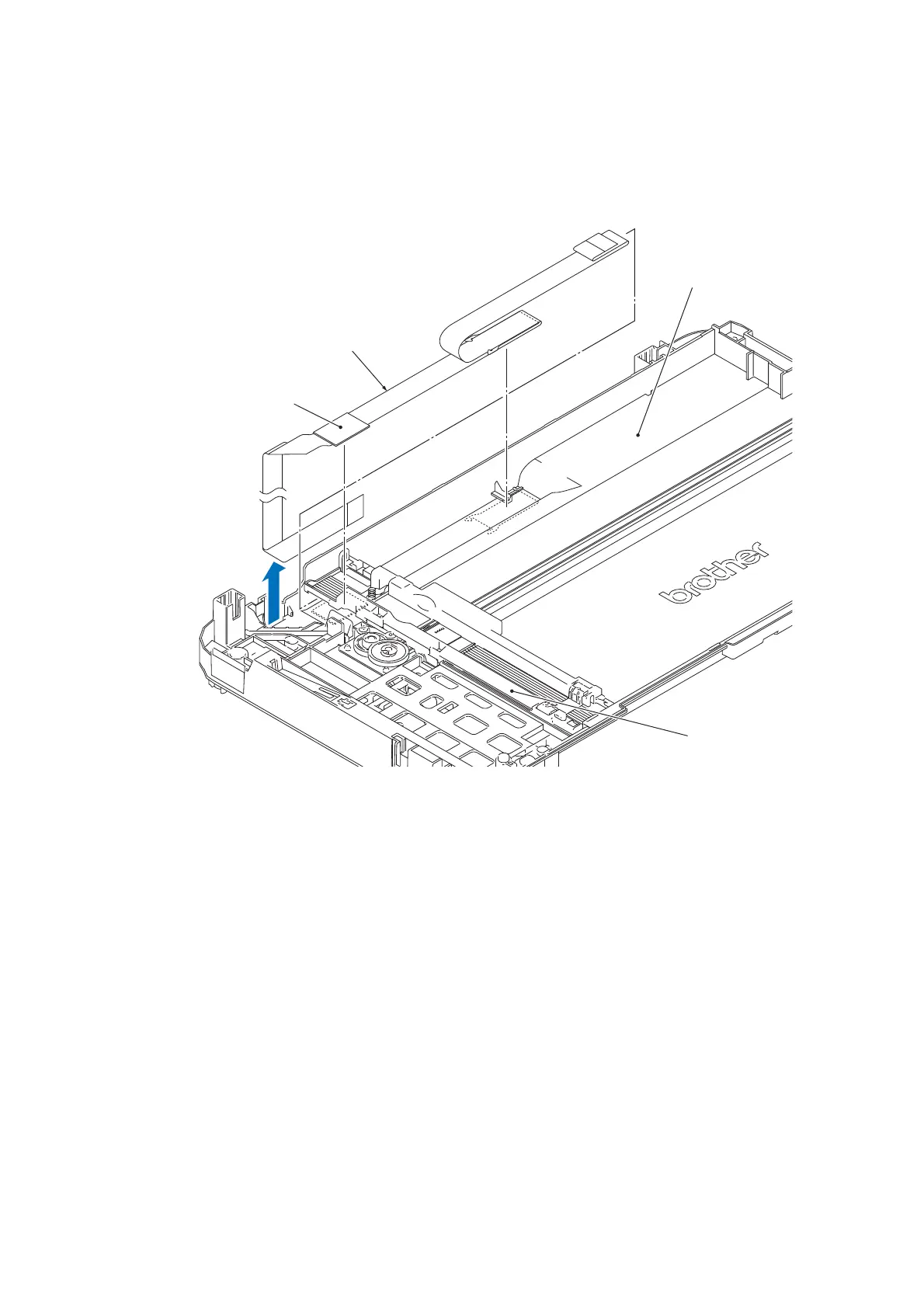

9.5.2 First Side CIS Flat Cable
(1) Release the wiring of the first side CIS flat cable from the scanner harness holder.
(2) Pull the first side CIS flat cable out of the CIS carriage, peel off the FFC rubber and FFC
tension film, and remove the CIS flat cable from the document scanner bottom cover.
CIS carriage
Document scanner
bottom cover
First side CIS flat cable
FFC rubber
(3_033_E)
