Confidential
2-47

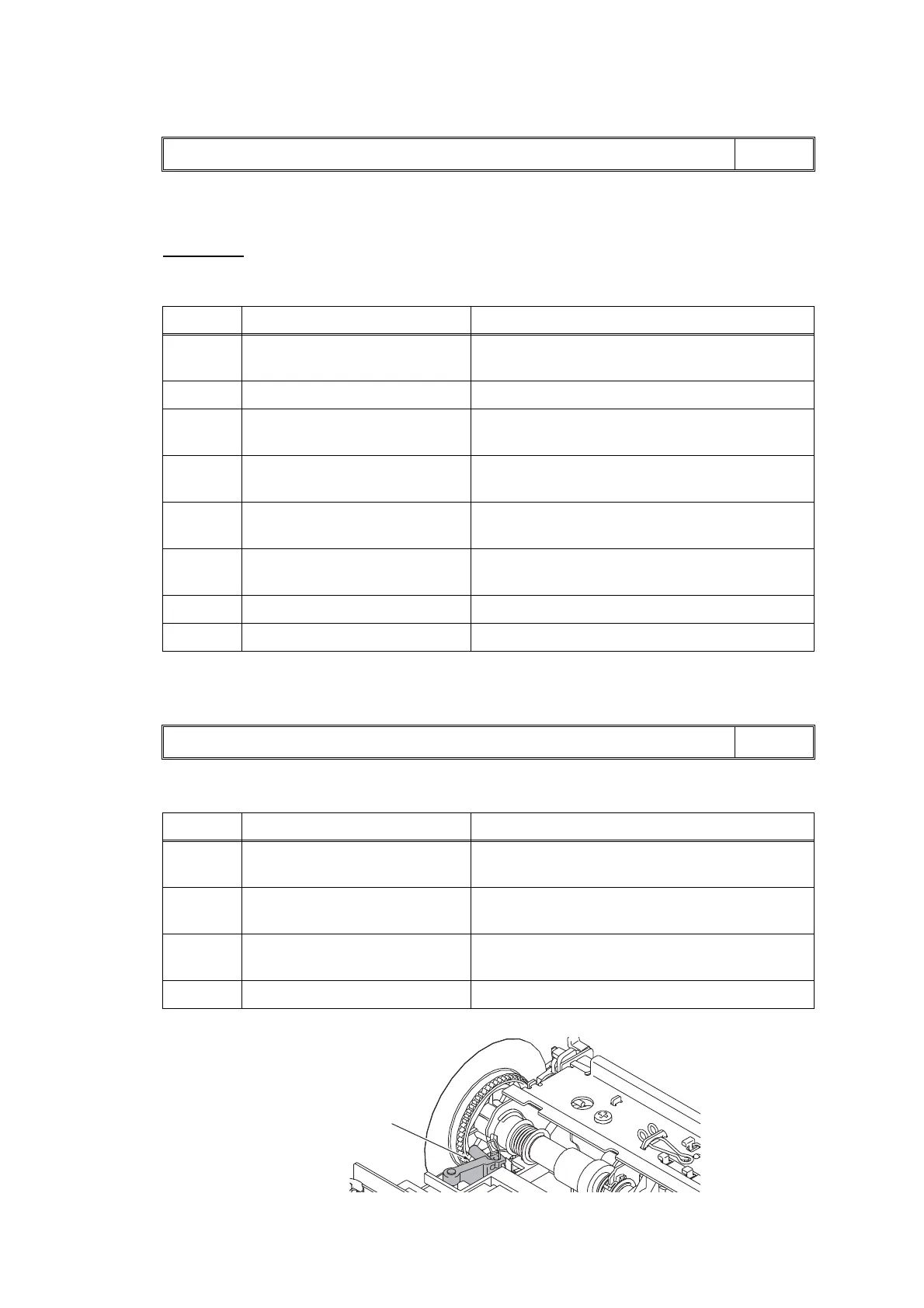

Error Code 88
Recording paper jam, switchback sensor cannot detect paper feeding state even papers are fed
during printing.
User Check
- Remove the jammed paper in platen part and front part.
Error Code 89
Recording paper width sensor cannot detect origin specified on the recording paper feed roller.
Paper Jam
LCD
Step Cause Solution
1 Foreign materials in the feeding
path
Remove foreign materials.
2 Switchback actuator out of place Set the switchback frame ASSY into place.
3 Switchback paper sensor harness
connection failure
Reconnect the switchback paper sensor harness.
4 Sensor relay PCB harness
connection failure
Reconnect the sensor relay PCB harness.
5 Paper feed roller, paper ejection
roller stained
Clean the related rollers.
6 Paper feed roller, paper ejection
roller defective
Replace related rollers.
7 Sensor relay PCB defective Replace the sensor relay PCB ASSY.
8 Main PCB defective Replace the main PCB ASSY.
Unable to Print 89
LCD
Step Cause Solution
1 PF encoder disk stained Clean the PF encoder disk and flushing guide (refer
to Chapter 3, Section 1.)
2 PF home position detection lever
out of place
Set the PF home position detection lever into place.
3 Paper width sensor or carriage
PCB defective
Replace the carriage PCB ASSY.
4 Main PCB defective Replace the main PCB ASSY.
PF home position detection lever
(2_001_E)
To Next Page
