9.14 Ink Absorber Box
Note: Do not remove the ink absorber box unless it needs to be replace.
(1) Release the wiring of the ink absorber full sensor PCB ASSY and disconnect the ink
absorber full sensor harness from the PCB ASSY.
(2) Pull out the drain tube and air vent tube from the ink absorber box.
Note: Pinch the end of each tube with a clip in order to prevent drained ink from leaking and the
machine from getting stained with leaked ink.

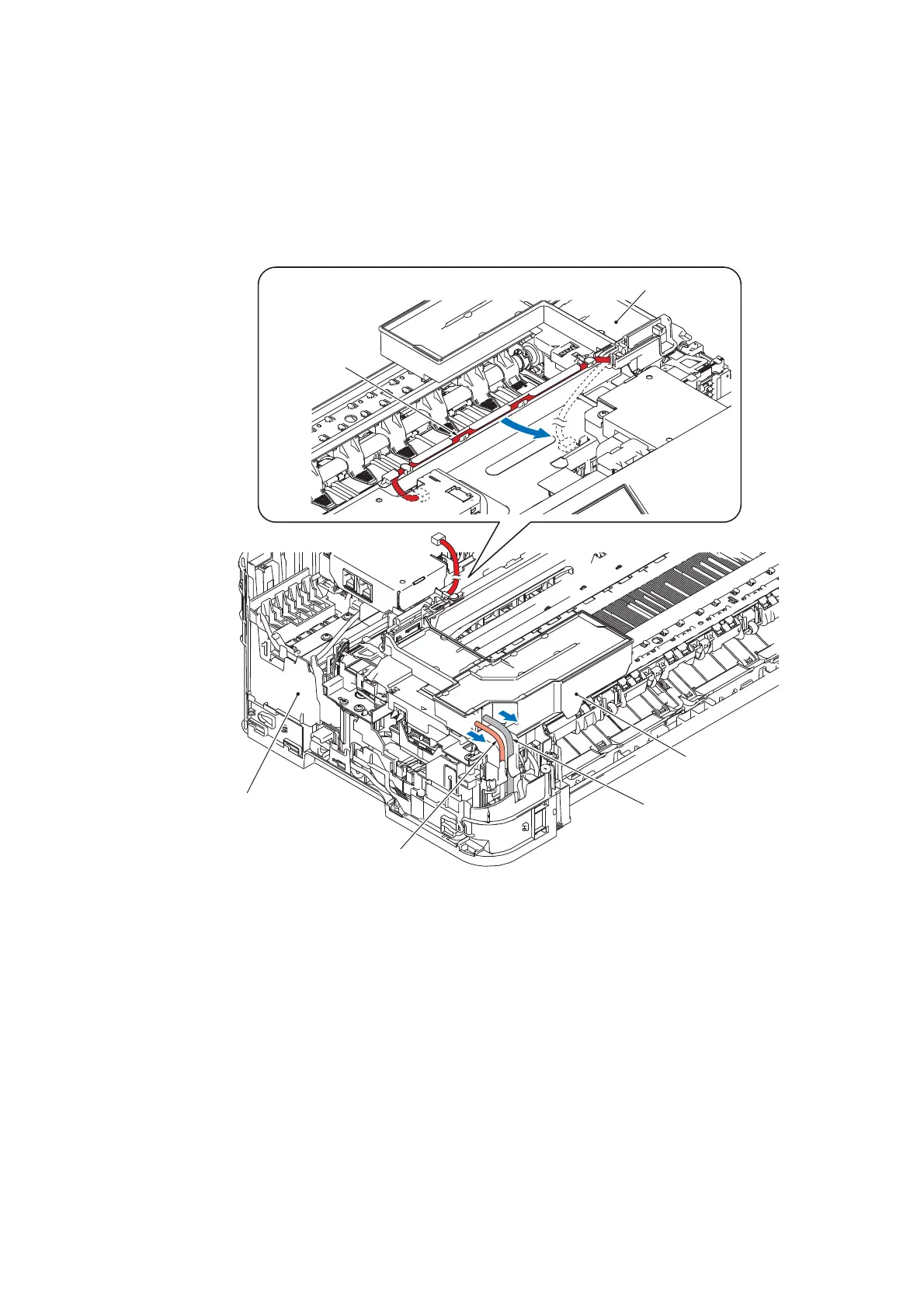

(Rear)
Lower cover
Ink absorber box
Ink absorber
full sensor harness
Ink absorber box
Drain tube
Air vent tube
(3_046_E)
