3-76
Confidential
9.18 Sensor Relay PCB ASSY

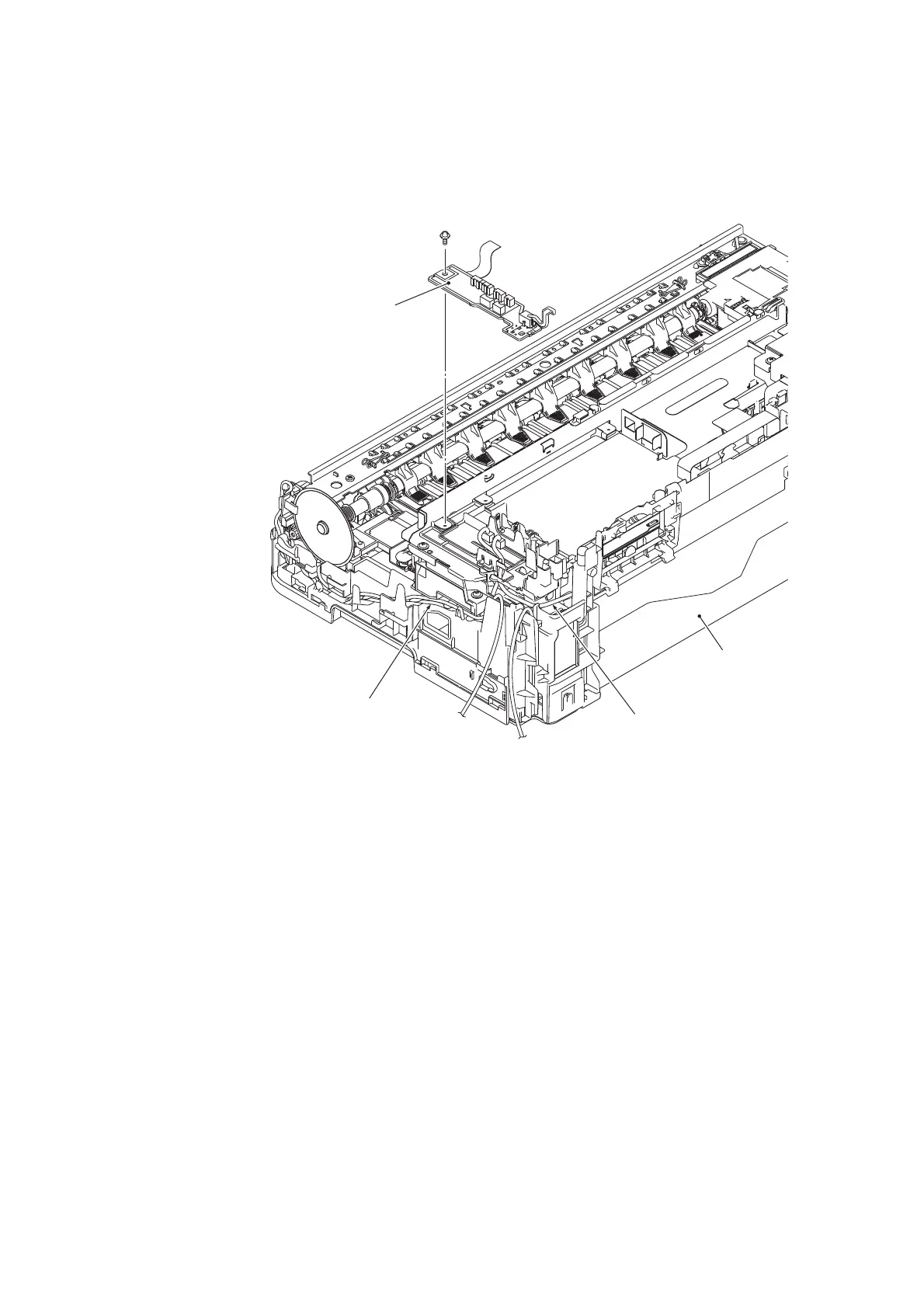

(1) Disconnect all harnesses connected to the sensor relay PCB ASSY.
(2) Remove the screw (TAPTITE CUP S M3x6) and take off the sensor relay PCB ASSY.
TAPTITE CUP S M3x6
(Rear)
Sensor relay PCB ASSY
PF encoder sensor harness
Switchback sensor harness
(Front)
Lower cover
(3_056_E)
