3-47
Confidential
9.3.10 ADF Motor

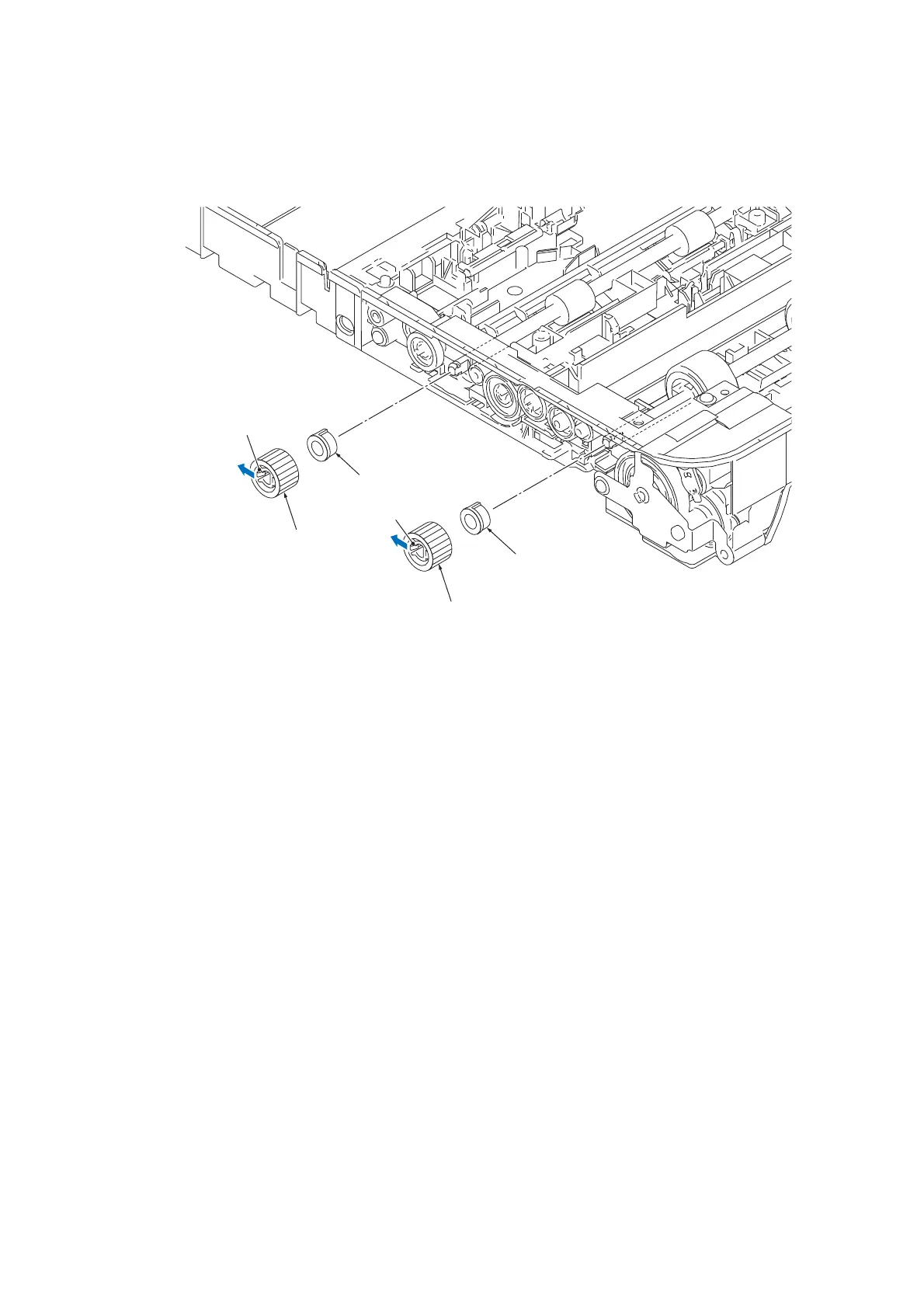

(1) Release the hook and remove the document feed roller 2 gear and the bushing.
(2) Release the hook and remove the document feed roller 1 gear and the bushing
Document feed roller 2 gear
Document feed roller 1 gear
Bushing
Bushing
Hook
Hook
(3_023_E)
