3-57
Confidential
9.5 Document Scanner Top Cover

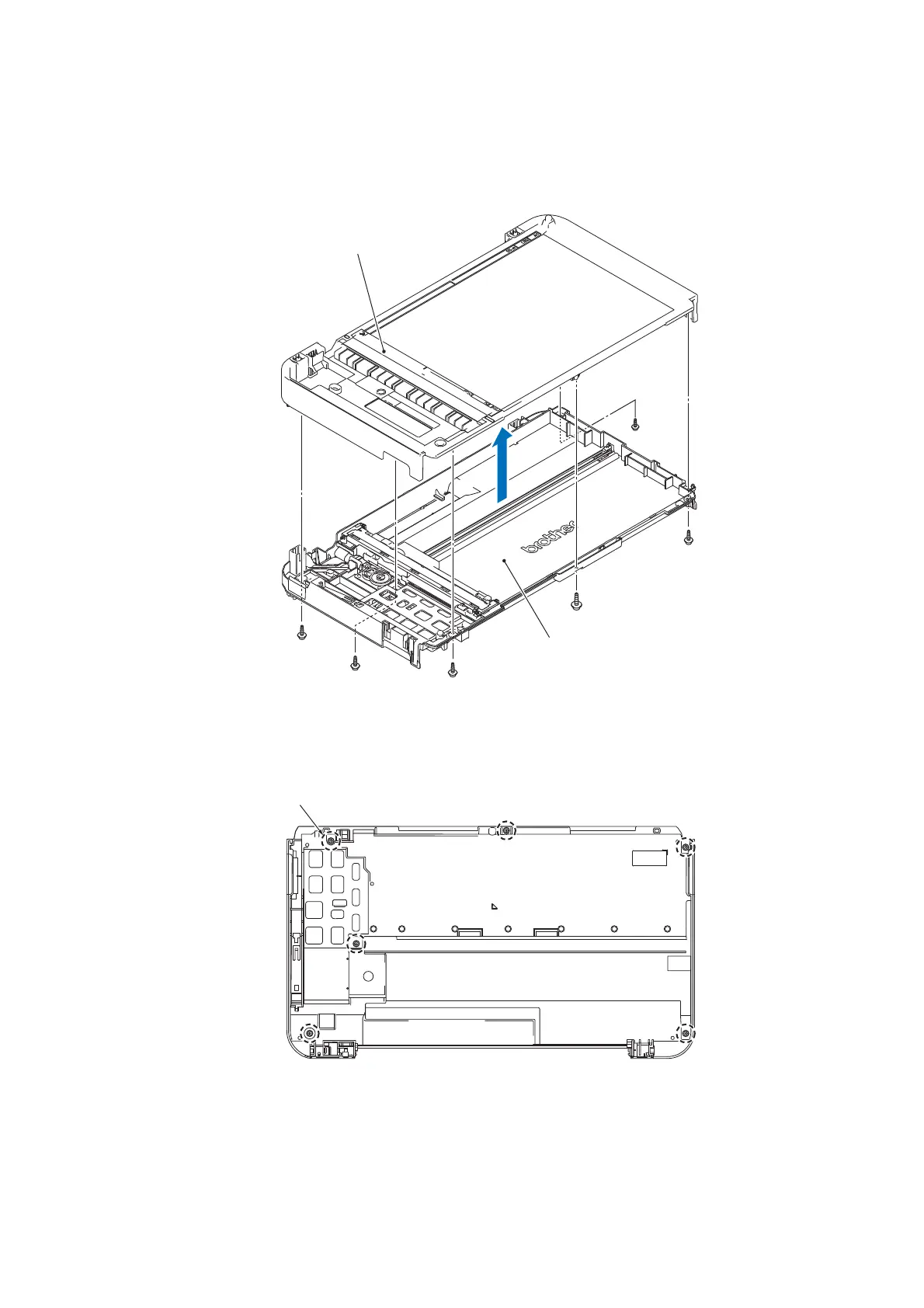

(1) Remove the six screws (TAPTITE CUP B M3x10) and remove the document scanner top
cover.
Assembling Note: When mounting the document scanner top cover, tighten the left front screw
first.
TAPTITE CUP B M3 x 10
Document scanner top cover
Document scanner bottom cover
(3_030_E)
Tighten this screw first.
(Right)
(Rear)
(Left)
(Front)
(3_030_1_E)
