3-120
Confidential

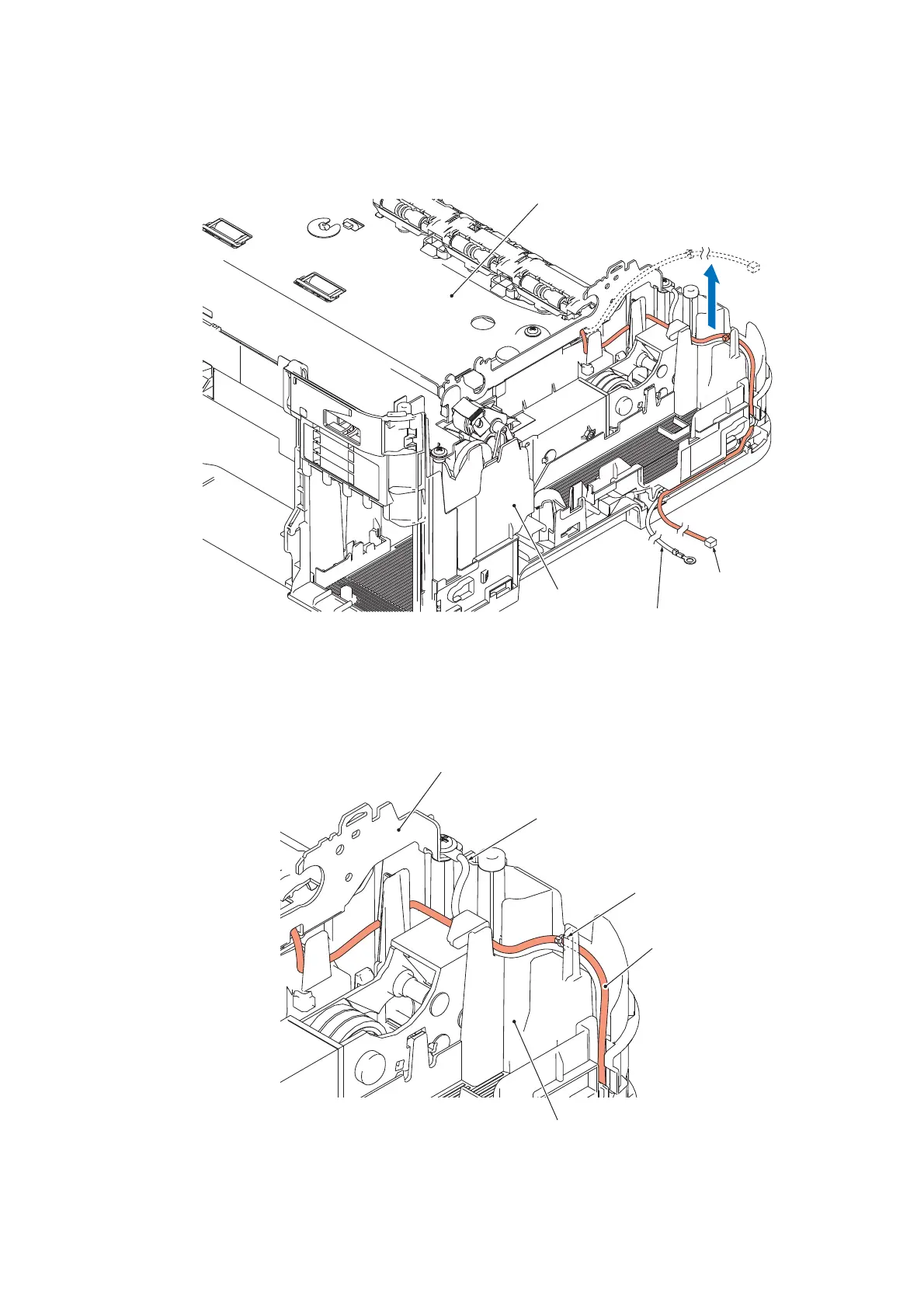

9.38 Registration Sensor PCB ASSY
(1) Release the wiring of the registration sensor PCB ASSY.
Assembling Note: In wiring of the registration sensor harness, set the cable tie on the left side
of the rib of the lower cover.
(Rear)
(Front)
Lower cover
Frame base
Registration
sensor harness
FG wire
(3_109_E)
(Rear)
(Front)
Lower cover
Frame base
Registration
sensor harness
Cable tie
FG wire
(3_109_1_E)
