2.7 Nameplate description
See Figure 2-2 for location of rating labels.

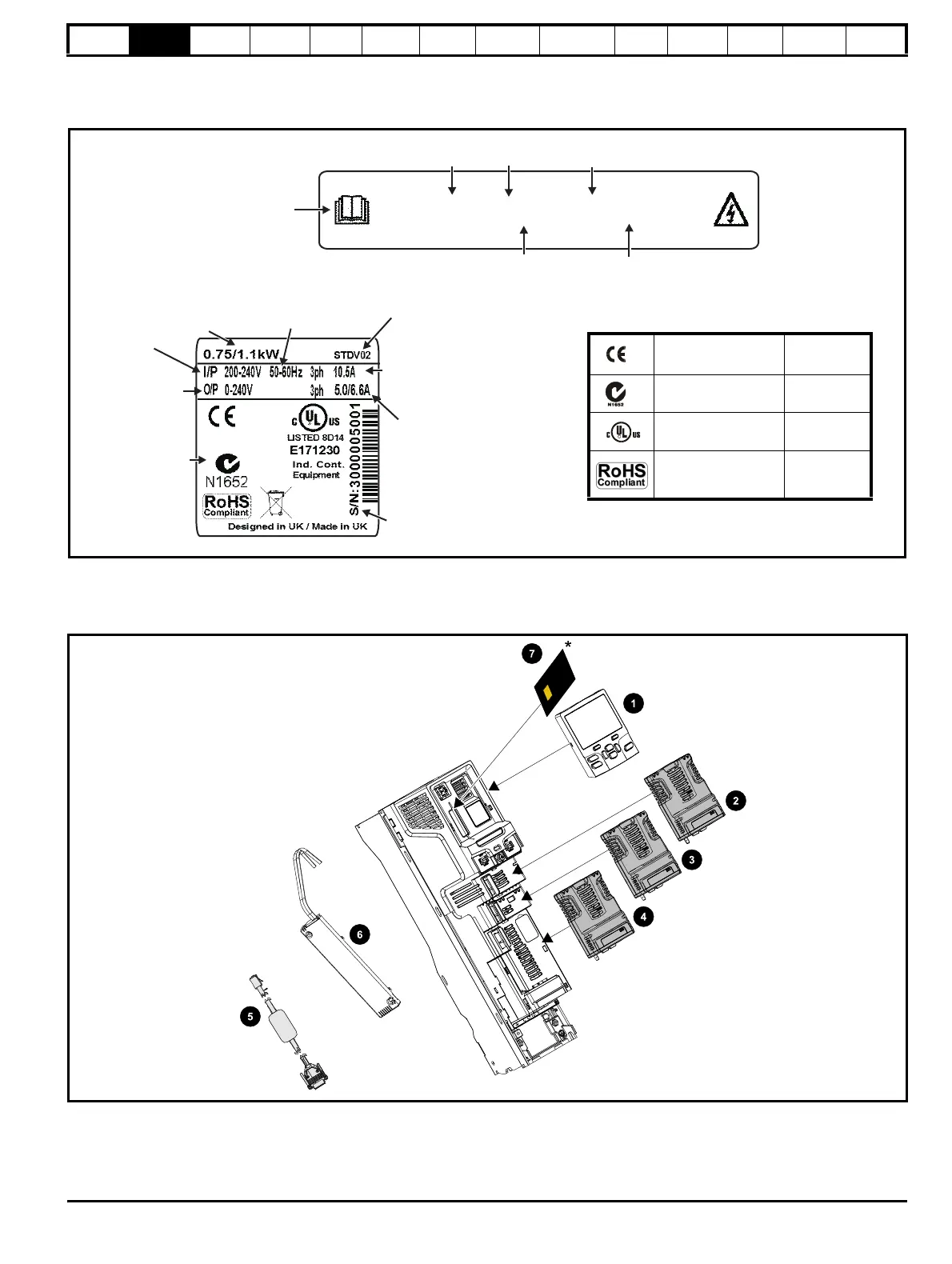

Figure 2-3 Typical drive rating labels
Refer to Figure 2-1 Model number on page 10 for further information relating to the labels.
2.8 Options
Figure 2-4 Options available with the drive
1. Keypad
2. Option module slot 1
3. Option module slot 2
4. Option module slot 3
5. CT Comms cable
6. Internal braking resistor
7. NV media card
* For further information, refer to Chapter 9 NV Media Card Operation on
page 130.
Refer to
User Guide
Model
Frame
size
Voltage
Heavy Duty
current rating
Drive format
M702-032-00050-A
Key to approvals
CE approval Europe
C Tick approval Australia
UL / cUL approval
USA &
Canada
RoHS compliant Europe
R
Approvals
Input voltage
Output
voltage
Heavy Duty /
Normal Duty
power rating
Customer and
date code
Serial
number
Input
frequency
No.of phases &
Typical input current for
Normal Duty rating
Heavy Duty /
Normal Duty rating
output current
