Unidrive M702 User Guide 41
Issue Number: 3

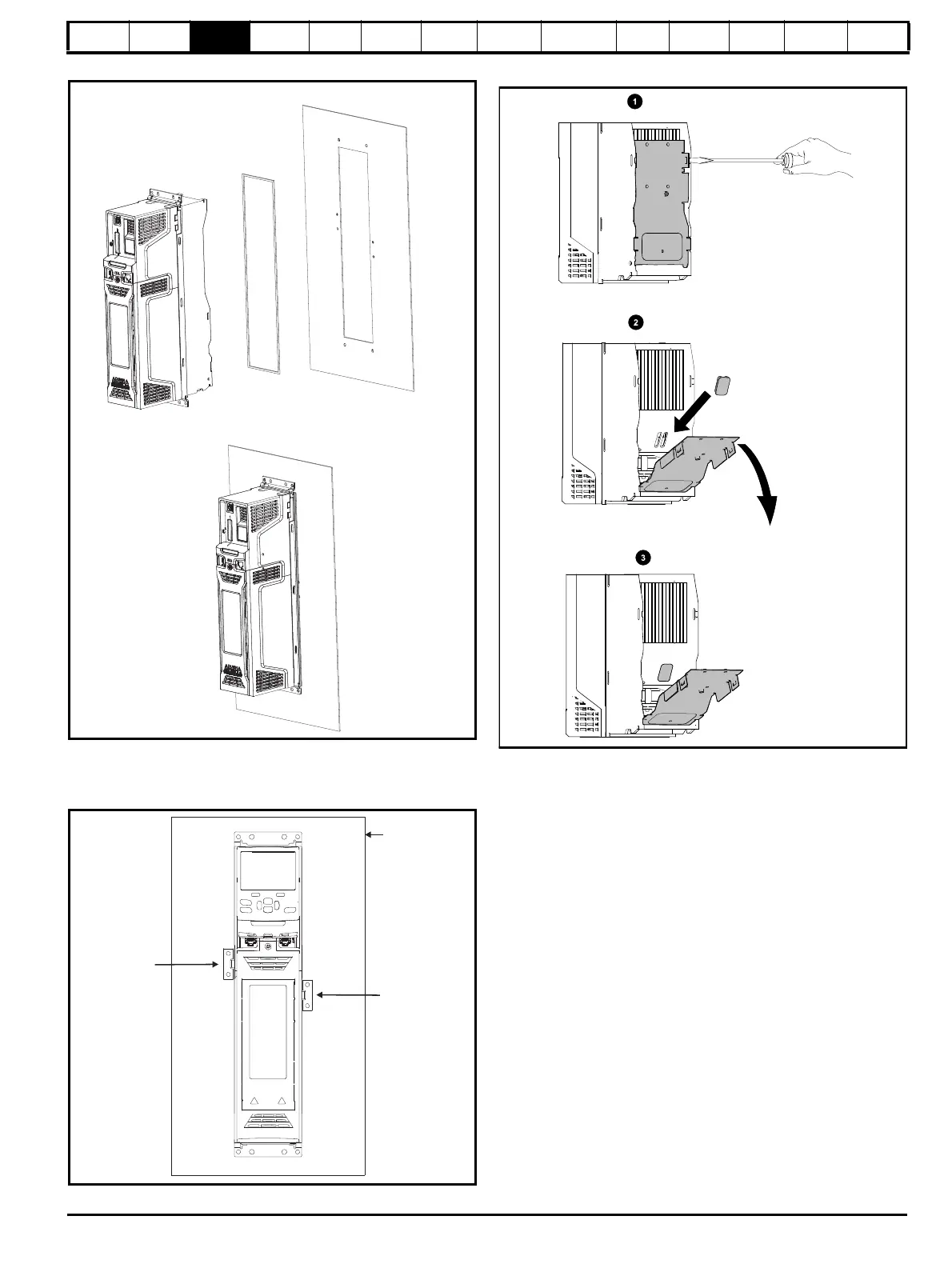

Figure 3-31 Installing the gasket
To seal the space between the drive and the backplate, use two sealing
brackets as shown in Figure 3-32. The sealing brackets are included in
the accessories kitbox supplied with the drive.
Figure 3-32 Through panel mounting
Figure 3-33 Installation of high IP insert for size 3
1. To install the high IP insert, firstly place a flat head screwdriver into
the slot highlighted (1).
2. Pull the hinged baffle down to expose the ventilation hole, install the
high IP insert into the ventilation hole in the heatsink (2).
3. Ensure the high IP insert is securely installed by firmly pressing it
into place (3).
4. Close the hinged baffle as shown (1).
To remove the high IP insert, reverse the above instructions.
The guidelines in Table 3-5 should be followed.
Drive
Gasket
Enclosure
rear wall
Through panel
securing bracket
Enclosure
rear wall
Through panel
securing bracket
