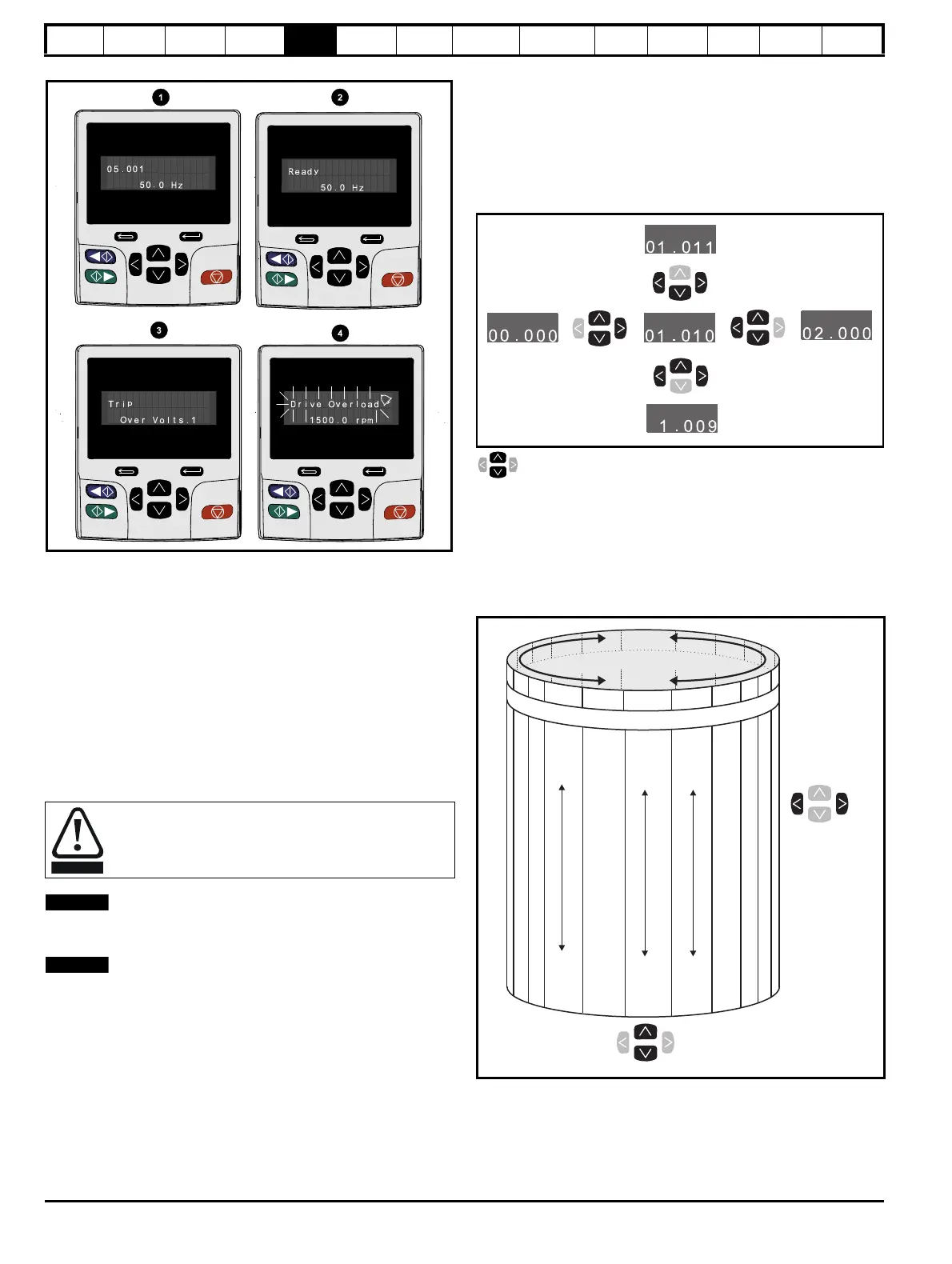

Figure 5-4 Mode examples
1. Parameter view mode: Read write or Read only
2. Status mode: Drive OK status
If the drive is ok and the parameters are not being edited or viewed, the
upper row of the display will show one of the following:
• ‘Inhibit’, ‘Ready’ or ‘Run’.
3. Status mode: Trip status
When the drive is in trip condition, the upper row of the display will
indicate that the drive has tripped and the lower row of the display will
show the trip code. For further information regarding trip codes. refer to
Table 13-4 Trip indications on page 249.
4. Status mode: Alarm status
During an ‘alarm’ condition the upper row of the display flashes between
the drive status (Inhibit, Ready or Run, depending on what is displayed)
and the alarm.
When changing the values of parameters, make a note of the new
values in case they need to be entered again.
For new parameter-values to apply after the line power supply to the
drive is interrupted, new values must be saved. Refer to section
5.7 Saving parameters on page 93.
5.3 Menu structure
The drive parameter structure consists of menus and parameters.
The drive initially powers up so that only Menu 0 can be viewed. The up
and down arrow buttons are used to navigate between parameters and
once Pr 00.049 has been set to 'All Menus' the left and right buttons are
used to navigate between menus. For further information, refer to
section 5.9 Parameter access level and security on page 93
Figure 5-5 Parameter navigation
* Can only be used to move between menus if all menus have
been enabled (Pr 00.049). Refer to section 5.9 Parameter
access level and security on page 93.
The menus and parameters roll over in both directions.
i.e. if the last parameter is displayed, a further press will cause the
display to rollover and show the first parameter.
When changing between menus the drive remembers which parameter
was last viewed in a particular menu and thus displays that parameter.
Figure 5-6 Menu structure
* The option module menus (S.mm.ppp) are only displayed if option
modules are installed. Where S signifies the option module slot number
and the mm.ppp signifies the menu and the parameter number of the
option module's internal menus and parameter.
Do not change parameter values without careful
consideration; incorrect values may cause damage or a
safety hazard.
Menu 0
....MM.000....
00.050
00.049
00.048
00.047
00.046
00.001
00.002
00.003
00.004
00.005
Moves
between
parameters
Menu 41
Menu 1
Menu 2
Moves between Menus
41.029
41.028
41.027
41.026
41.025
41.001
41.002
41.003
41.004
41.005
01.001
01.002
01.003
01.004
01.005
01.050
01.049
01.048
01.047
01.046
Option module menus (S.mm.ppp)*
