3.5.3 Mounting brackets

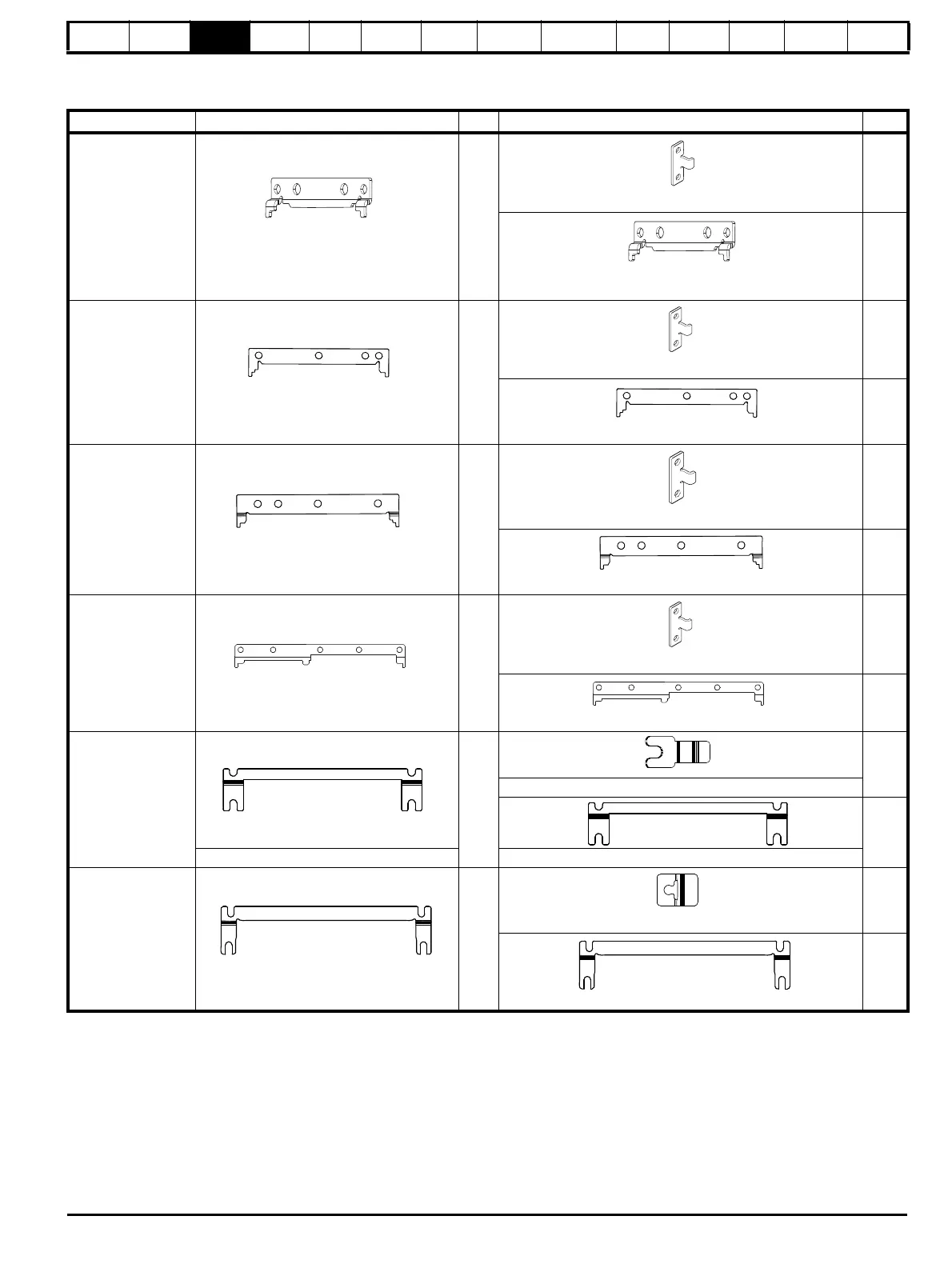

Table 3-2 Mounting brackets
Frame size Surface Qty Through-panel Qty
3 x 2
x 2
Hole size: 5.5 mm (0.22 in)
x 2
Inner hole size: 6.5 mm (0.26 in)
Outer hole size: 5.5 mm (0.22 in)
Inner hole size: 6.5 mm (0.26 in)
Outer hole size: 5.5 mm (0.22 in)
4 x 2
x 3
Hole size: 5.2 mm (0.21 in)
x 2
Hole size: 6.5 mm (0.26 in) Hole size: 6.5 mm (0.26 in)
5 x 2
x 2
Hole size: 5.2 mm (0.21 in)
x 2
Hole size: 6.5 mm (0.26 in) Hole size: 6.5 mm (0.26 in)
6 x 2
x 3
Hole size: 5.2 mm (0.21 in)
x 2
Hole size: 6.5 mm (0.26 in) Hole size: 6.5 mm (0.26 in)
7 x 2
x 2
Hole size: 9 mm (0.35 in)
x 2
Hole size: 9 mm (0.35 in) Hole size: 9 mm (0.35 in)
8 x 2
x 6
Hole size: 5.3 mm (0.21 in)
x 2
Hole size: 9 mm (0.35 in) Hole size: 9 mm (0.35 in)
