88 Unidrive M702 User Guide
Issue Number: 3
5 Getting started
This chapter introduces the user interfaces, menu structure and security
levels of the drive.
5.1 Understanding the display
The keypad can only be mounted on the drive.
5.1.1 KI-Keypad
The KI-Keypad display consists of two rows of text. The upper row
shows the drive status or the menu and parameter number currently
being viewed. The lower row of the display line shows the parameter
value or the specific trip type. The last two characters on the first row
may display special indications. If more than one of these indications is
active then the indications are prioritized as shown in Table 5-2.
When the drive is powered up the lower row will show the power up
parameter defined by Parameter Displayed At Power-Up (11.022).

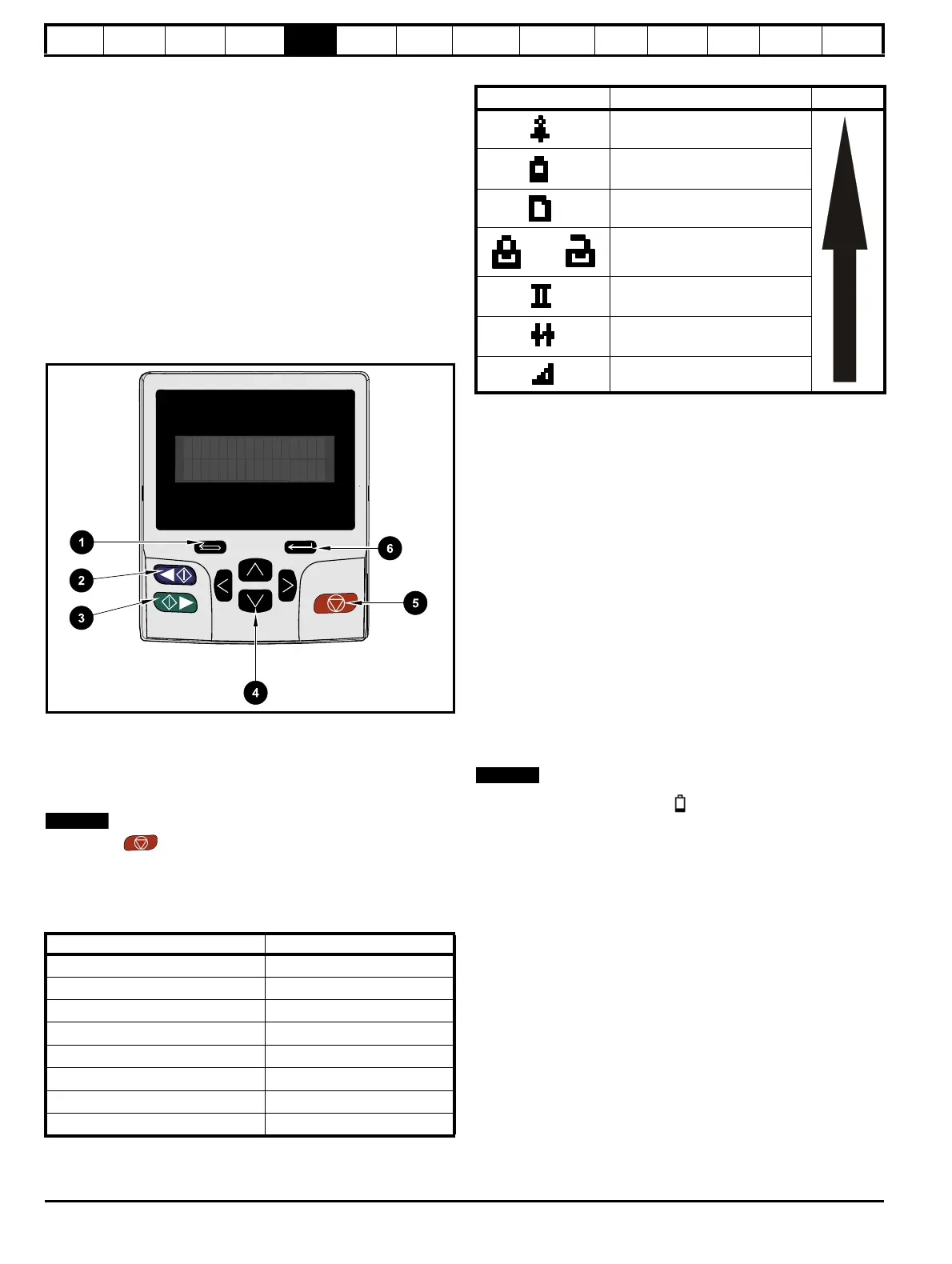

Figure 5-1 KI-Keypad
1. Escape button
2. Start reverse (Auxiliary button)
3. Start forward
4. Navigation keys (x4)
5. Stop / Reset (red) button
6. Enter button
The red stop button is also used to reset the drive.
The parameter value is correctly displayed in the lower row of the
keypad display, see table below.
Table 5-1 Keypad display formats
Table 5-2 Active action icon
5.2 Keypad operation
5.2.1 Control buttons
The keypad consists of:
• Navigation Keys - Used to navigate the parameter structure and
change parameter values.
• Enter / Mode button - Used to toggle between parameter edit and
view mode.
• Escape / Exit button - Used to exit from parameter edit or view
mode. In parameter edit mode, if parameter values are edited and
the exit button pressed the parameter value will be restored to the
value it had on entry to edit mode.
• Start forward button - Use to provide a 'Run' command if keypad
mode is selected.
• Start reverse button - Used to control the drive if keypad mode is
selected and the reverse button is activated. If Enable Auxiliary Key
(06.013) =1, then the keypad reference is toggled between run
forward and run reverse each time the button is pressed. If Enable
Auxiliary Key (06.013) = 2, then the button functions as a run
reverse key.
• Stop / Reset button - Used to reset the drive. In keypad mode can be
used for 'Stop'.
Low battery voltage is indicated by low battery symbol on the keypad
display. Refer to section 3.13.1 Real time clock battery replacement on
page 49 for information on battery replacement.
Figure 5-2 overleaf shows an example on moving between menus and
editing parameters.
Display formats Value
IP Address 127.000.000.000
MAC Address 01ABCDEF2345
Time 12:34:56
Date 31-12-11 or 12-31-11
Version number 01.02.02.00
Character ABCD
32 bit number with decimal point 21474836.47
16 bit binary number 0100001011100101
NOTE
Active action icon Description Priority
Alarm active
Keypad real-time clock battery
low
Accessing non-volatile media
card
or
Drive security active and locked
or unlocked
Motor map 2 active
User program running
Keypad reference active
NOTE
