6.8 How to Measure the Range and Bearing from
Your Ship to a Target
You can measure the range or bearing to a target by the following four methods.
6.8.1 How to display the range rings
The range rings are the concentric solid circles about your ship. Use the fixed range
rings to get a rough estimate of the range to a target.
To show or hide the range rings, open the [Layers] menu then turn [Radar Rings] on
or off.
To measure the range with the range rings, count the number of rings between the
center of the screen and the target. Check the range ring interval and estimate the dis-
tance of the echo from the inner edge of the nearest ring.

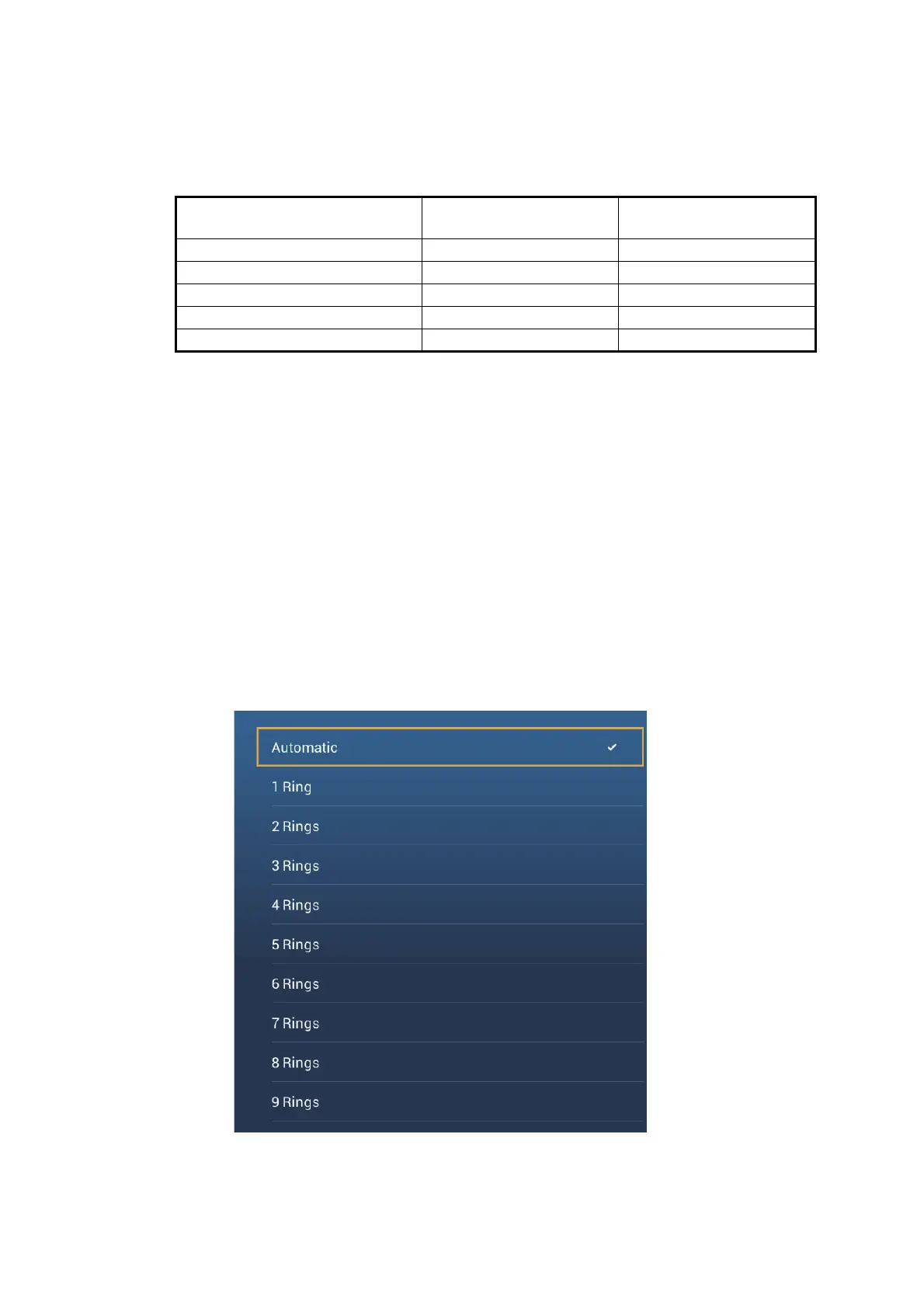

6.8.2 How to set the number of the range rings to show
1. Open the home screen, then tap [Settings] - [Radar].
2. Tap [Rings Interval].
3. Tap a number. [Automatic] automatically selects the number of rings according to
the range scale.
4. Tap the close button to finish.
Range
measurement
Bearing
measurement
EBL (Electronic Bearing Line) No Yes
Fixed range rings Yes No
Ruler Yes Yes
Tap Yes Yes
VRM (Variable Range Marker) Yes No
To Next Page
