9.2 Video Signal Type

There are two types of video signals connected to this equipment.

• Analog: Images from a video player, on-board camera or DVD player

• FLIR: Images from a FLIR brand infrared camera

9.3 How to Set the Video Display

9.3.1 How to set the video signal

FLIR camera

Images from an infrared camera allow you to navigate easily at night or in bad weath-

er. Open the home screen, then [Settings] - [Camera] - [FLIR Installation].

Note: To use the PTZ function of the FLIR camera with the NavNet TZtouch2, a set-

ting (Nexus CGI Interface, port: 8090) is required at the FLIR camera. See the opera-

tor’s manual of the FLIR camera for details.

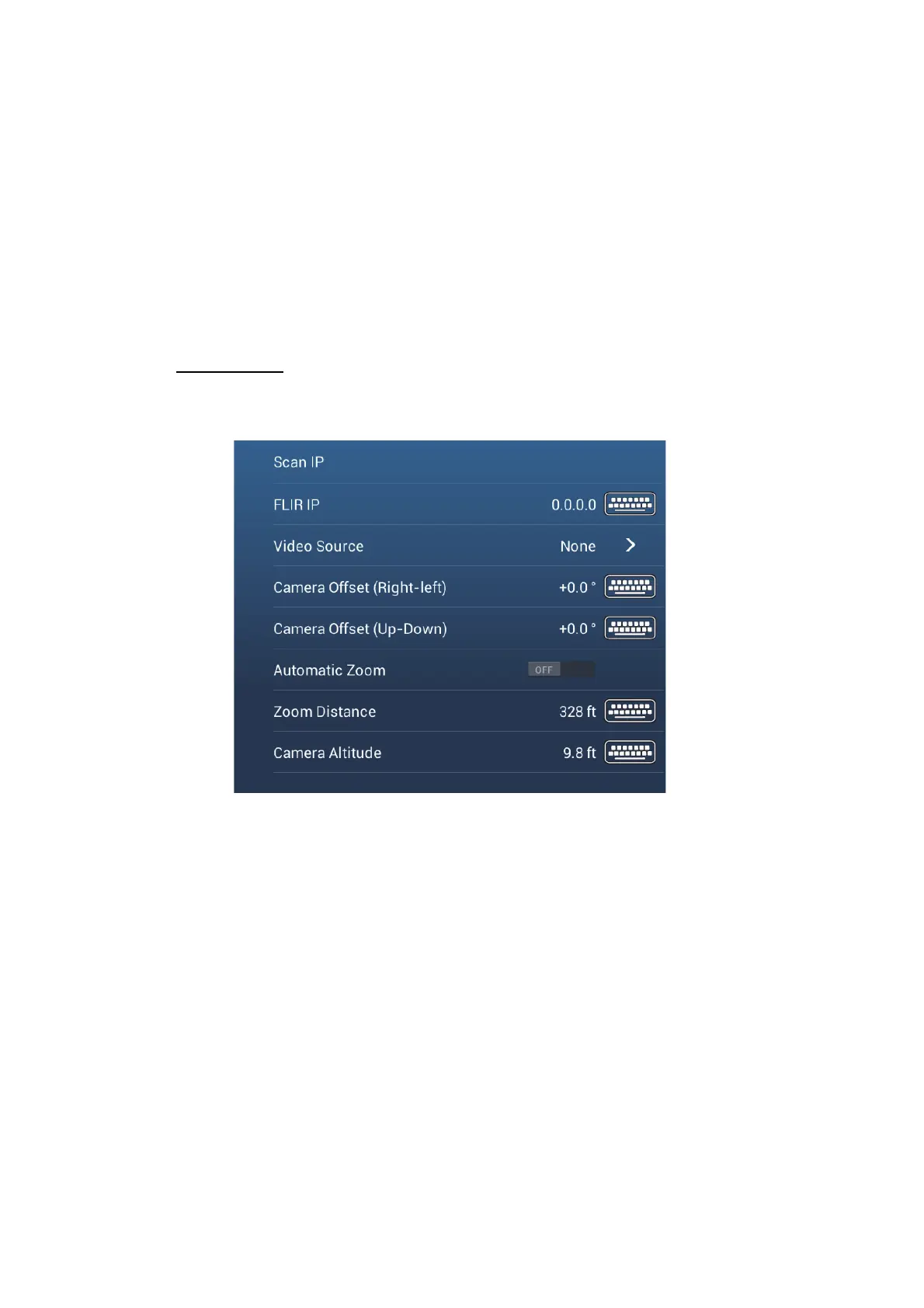

[Scan IP]: Tap [Scan IP] to scan the IP address automatically when connecting an

FLIR camera.

[FLIR IP]: Enter the IP address manually with the software keyboard then tap .

[Video Source]: Select the input source for the FLIR.

[Camera Offset (Right-left)]: Adjust the side position of the FLIR camera.

[Camera Offset (Up-Down)]: Adjust the up-and down position of the FLIR camera.

[Automatic Zoom]: Turn on to turn on the automatic zoom.

[Zoom Distance]: Set the distance to zoom automatically.

[Camera Altitude]: Set the altitude for the FLIR camera.
