6.23 Radar Menu
This section provides the descriptions for the radar menu items not mentioned earlier.

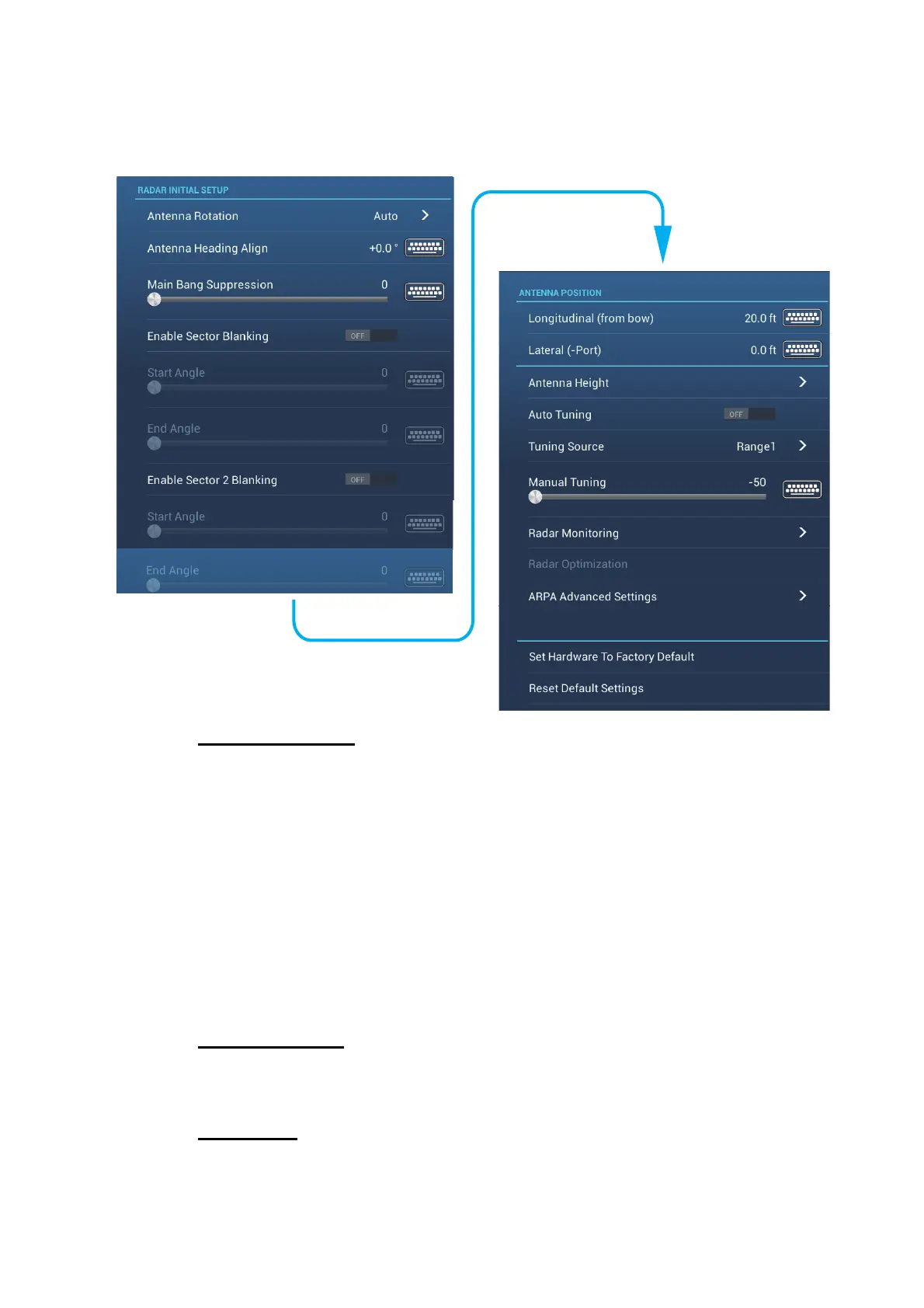

Radar Initial Setup
[Antenna Rotation]: Starts or stop antenna rotation. For the serviceman. See the in-
stallation manual.
[Antenna Heading Align]: Compensates for error in positioning of the antenna unit
at installation. See the installation manual for the adjustment procedure.
[Main Bang Suppression]: Reduces main bang, the clutter appearing at the screen
center. See the installation manual for the adjustment procedure.
[Enable Sector Blanking]: Sets the area(s) where to prevent transmission. For ex-
ample, set the area where an interfering object at the rear of the antenna would pro-
duce a dead sector (area where no echoes appear) on the display. See the installation
manual for the procedure.
Antenna position
[Longitudinal (from bow)], [Lateral (-Port]: Set the position of the radar antenna in
relation to the bow and port.
Other items
[Antenna Height]: Set the height of the radar antenna above the waterline.
To Next Page
