1. SYSTEM INTRODUCTION

1-18

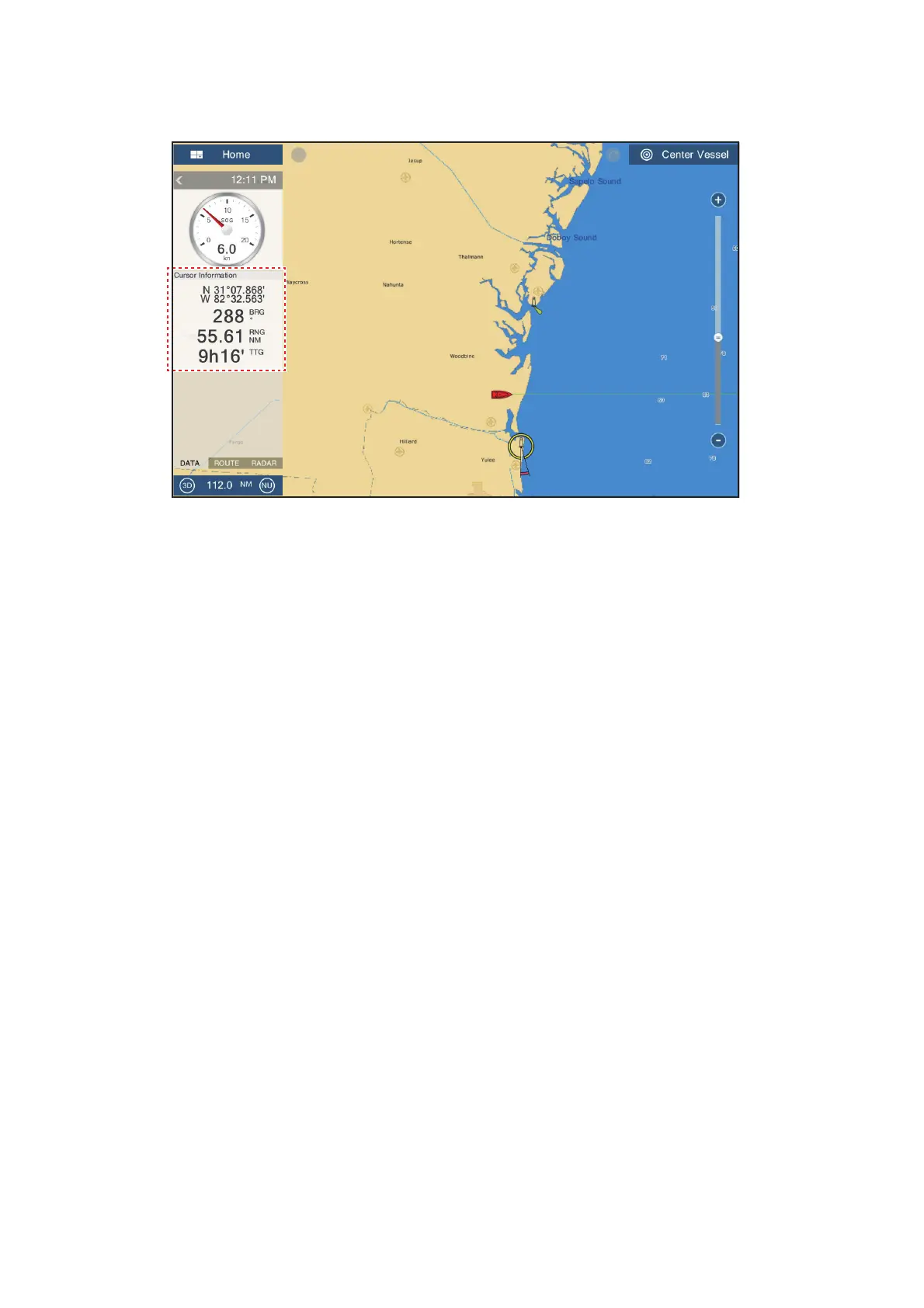

2. Tap the data to add, on the pop-up menu. For example, tap [Cursor].The added

data appears in the data area.

1.9.4 How to delete a data box

Tap the data box to delete, then tap [Remove] on the [Modify NavData] pop-up menu.
