1. SYSTEM INTRODUCTION
1-2
1.1 Controls
The TZTL12F and TZTL15F are operated by a power switch and touch controls.
You operate the plotter, radar, fish finder, etc. with
Your unit has one key on its front panel, a power/brilliance controlling button. The mi-
cro SD card slot, which is used for chart data, is on the rear panel.

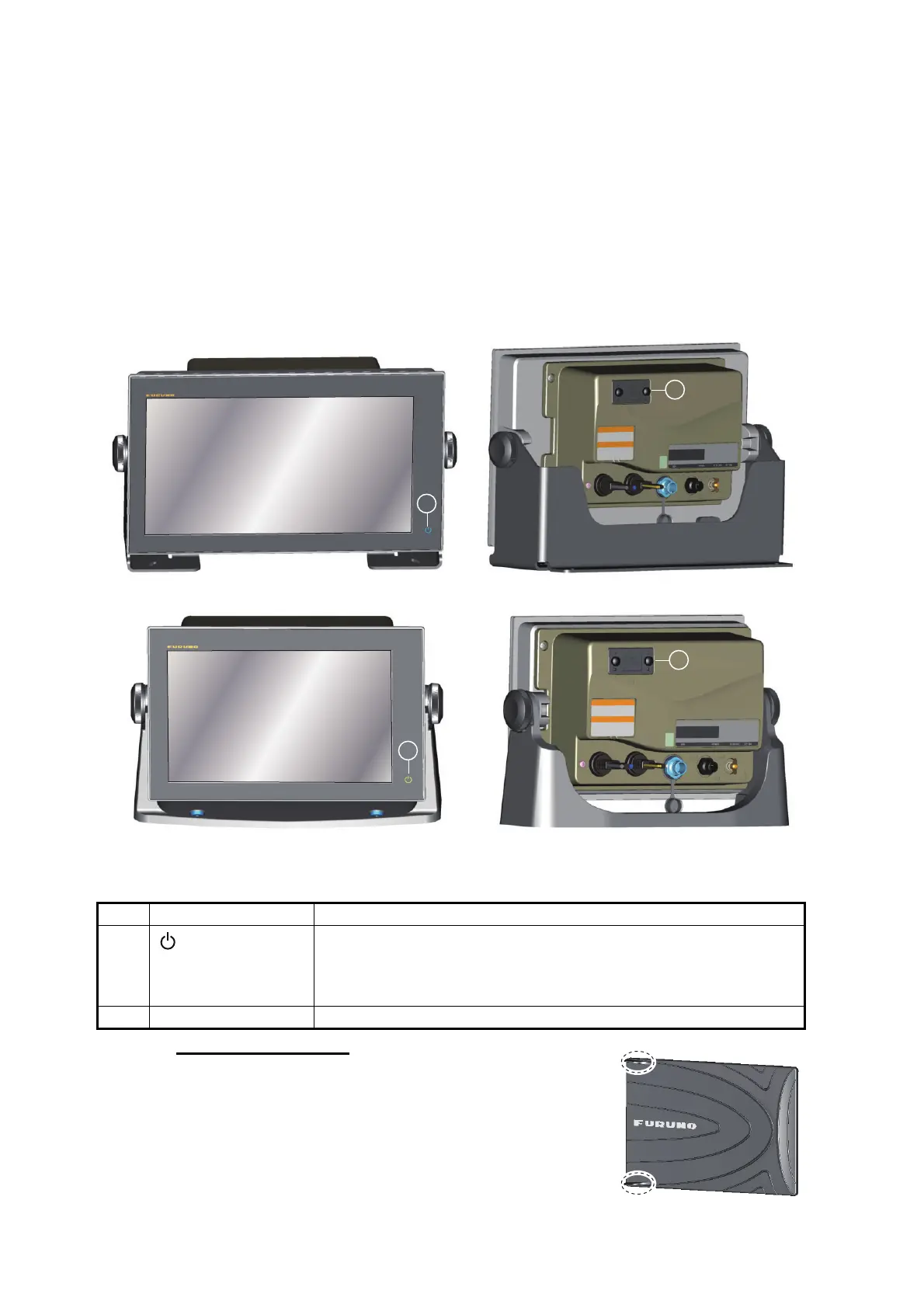

TZTL multi function display units (shown in optional hanger)
About the soft cover
The supplied soft cover protects the LCD when the dis-
play unit is not in use. To remove the cover, grasp the
cover at the locations circled in the right figure and pull
forward.
• Touch control • pop-up menus and hidden functions, where
you select options
• Menus, where you select options • Lists, where you can edit items
No. Item Function
1
(Power switch)
• Turns the power on.
• Adjust the brilliance and hue of the display.
• Turns the power off (device or network).
• Locks, unlocks the touch screen.
2 Micro SD card slot This slot is exclusively for use with chart cards.
