11. SIRIUS/XM SATELLITE WEATHER RECEIVER (BBWX3) OPERATIONS

11-13

Method 2: From the home screen

Open the slide-out menu, then tap the [Sirius Audio] icon to show or hide the audio

control bar. See the next page.

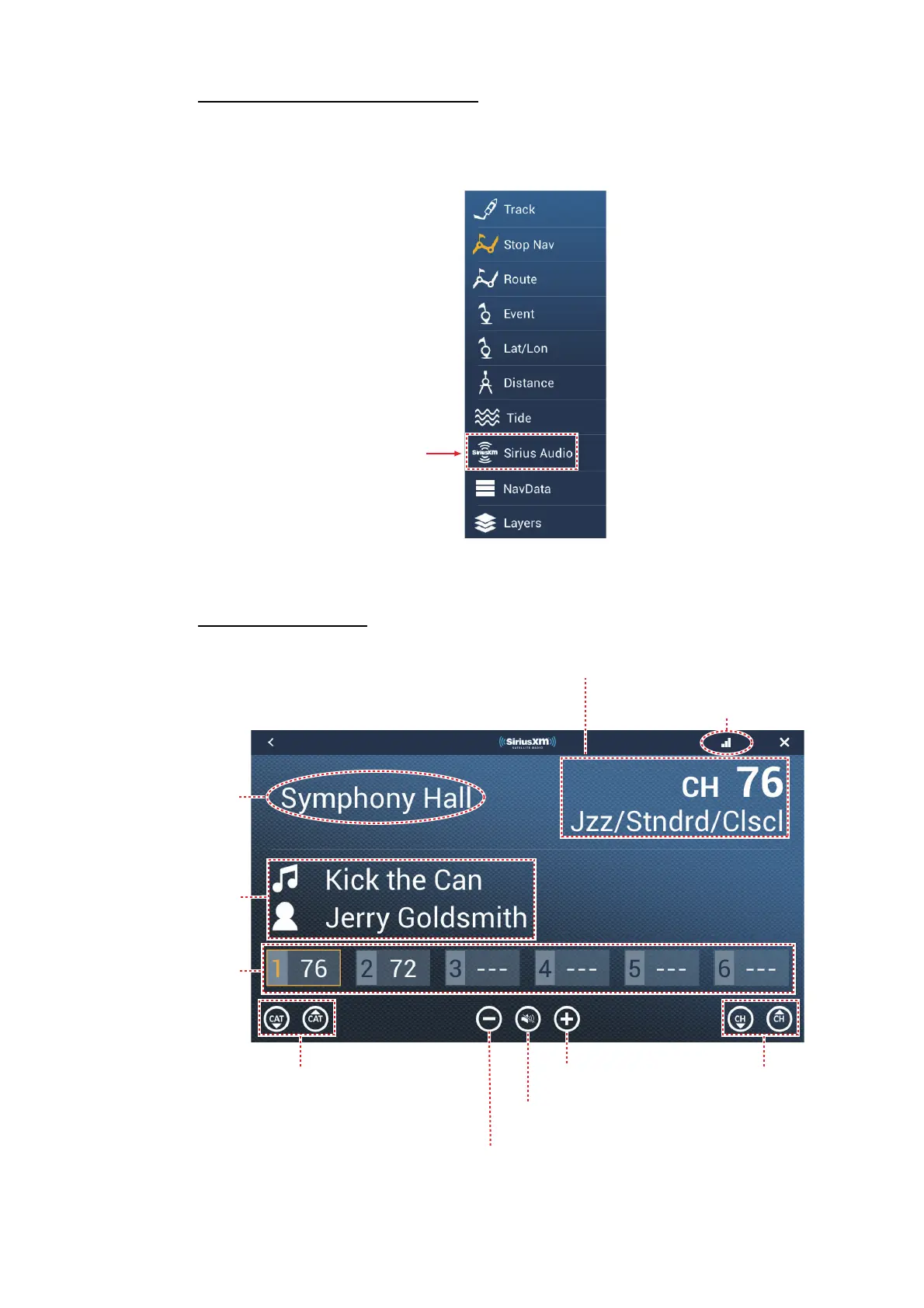

11.6.2 How to operate the radio controls

Full screen controls

Sirius Audio

icon

Raise

volume.

Mute,

unmute.

Channel, music genre

Sound

setting

Title,

artist

Preset

channels

Signal strength

Lower

volume.

Select

channel.

Select

CAT.
