2. PLOTTER
2-9
2.8 Multiple Plotter Displays
Three plotter displays can be shown on one screen. With three plotter displays, you
can see the conditions around your ship on both short and long ranges. Also, you can
see how your ship moves toward your destination from more than one angle. For ex-
ample, you can show one display in 3D and the other two in 2D.
The following features can be adjusted individually.
• AIS • ARPA • Display range
• Chart orientation • Chart type • Scroll the chart
• Overlays (radar, sat photo, depth shading, tide icon, tidal current, ACCU-FISH&
™
(see section 7.12), points, routes, tracks)
• 2D and 3D: Independent orientation (2D, 3D) and view point (3D) are possible.

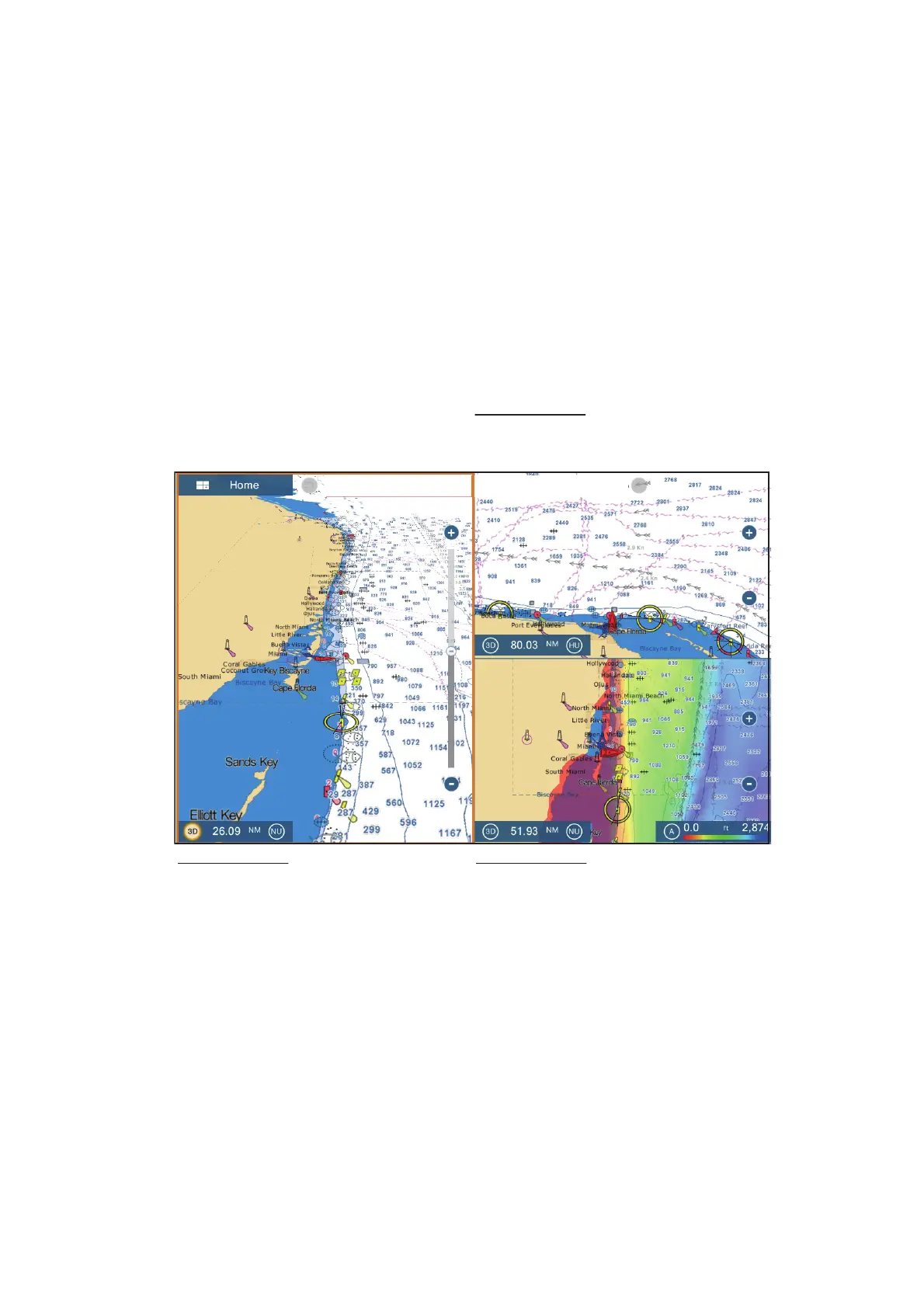

Plotter display 1
Display range: 26.09 NM
Orientation: North-up
Perspective: 3D
Plotter display 3
Display range: 51.93 NM
Orientation: North-up
Perspective: 2D
Overlay: Depth shading
Plotter display 2
Display range: 80.03 NM
Orientation: Head-up
Perspective: 2D
