GE Multilin T60 Transformer Protection System 4-7
4 HUMAN INTERFACES 4.2 EXTENDED ENERVISTA UR SETUP FEATURES
4
Viewing the settings in template mode also modifies the settings tree, showing only the settings categories that contain
editable settings. The effect of applying the template to a typical settings tree view is shown below.
Figure 4–5: APPLYING TEMPLATES VIA THE VIEW IN TEMPLATE MODE SETTINGS COMMAND
Use the following procedure to display settings available for editing and settings locked by the template.
1. Select an installed device or a settings file from the tree menu on the left of the EnerVista UR Setup main screen.
2. Apply the template by selecting the Template Mode > View All Settings option.
3. Enter the template password then click OK to apply the template.
Once the template has been applied, users are limited to edit the settings specified by the template, but all settings are
shown. The effect of applying the template to the phase time overcurrent settings is shown below.
Figure 4–6: APPLYING TEMPLATES VIA THE VIEW ALL SETTINGS COMMAND
e) REMOVING THE SETTINGS TEMPLATE
It can be necessary at some point to remove a settings template. Once a template is removed, it cannot be reapplied and it
is necessary to define a new settings template.
1. Select an installed device or settings file from the tree menu on the left of the EnerVista UR Setup main screen.
2. Select the Template Mode > Remove Settings Template option.
3. Enter the template password and click OK to continue.

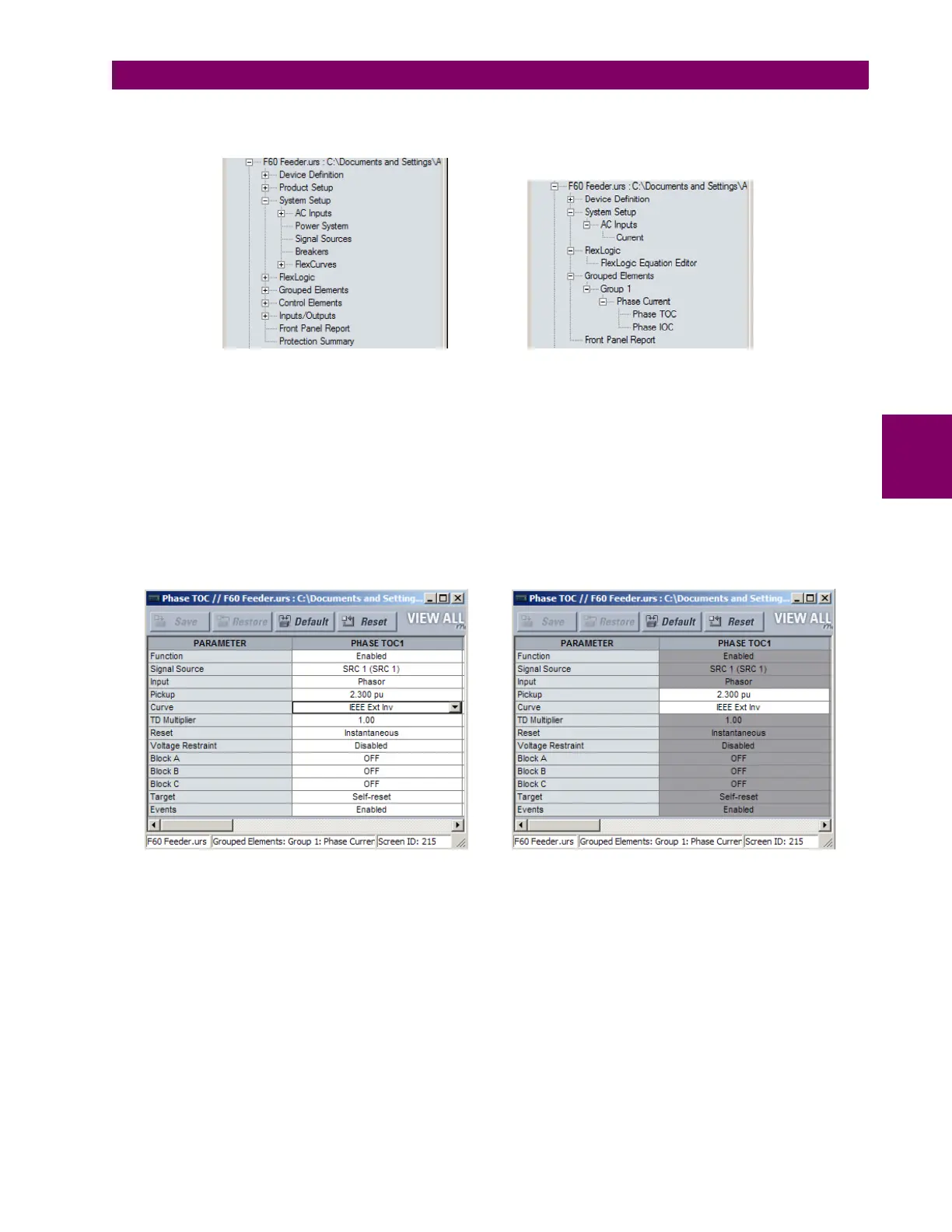

Typical settings tree view without template applied. Typical settings tree view with template applied via
the
command.
Template Mode > View In Template Mode
842860A1.CDR
Phase time overcurrent settings window without template applied. Phase time overcurrent window with template applied via
the command.
The template specifies that only the and
settings be available.
Template Mode > View All Settings
Pickup Curve
842859A1.CDR
