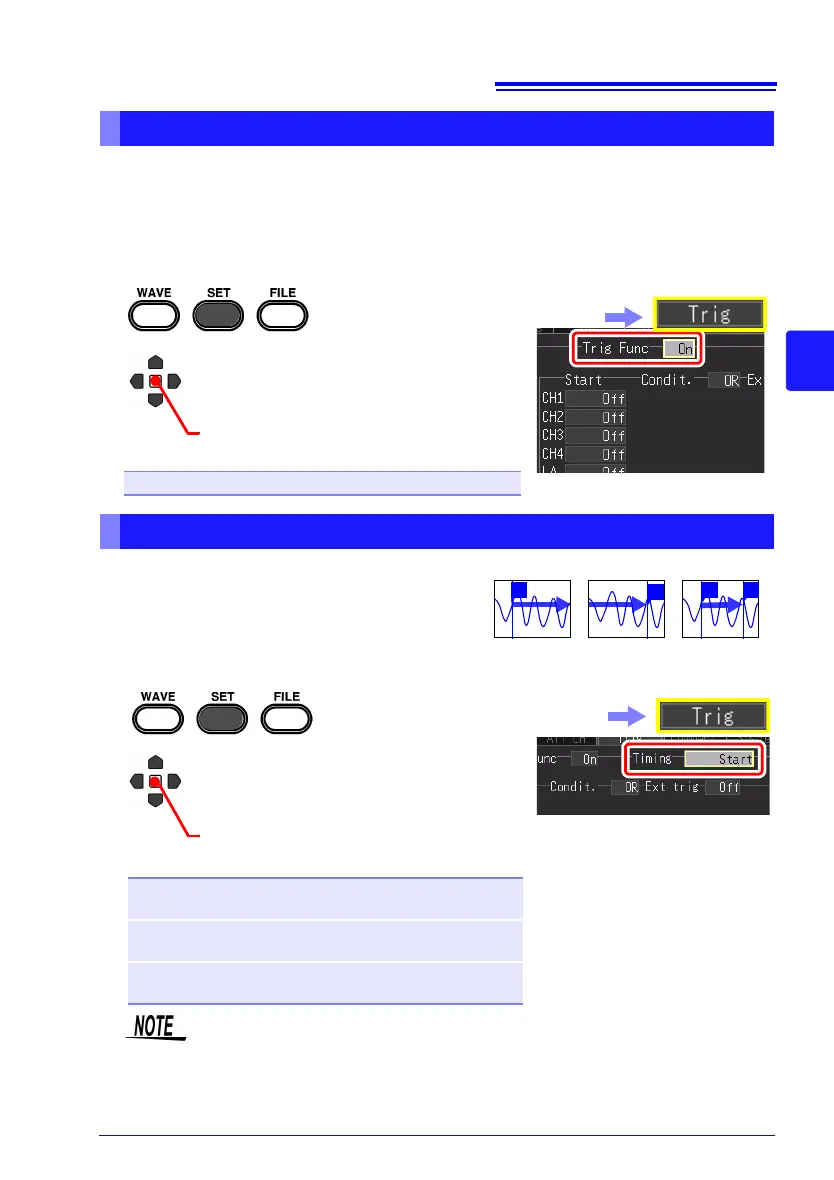

4.9 Recording Using Specific Conditions (Trigger Function)
111
Chapter 4 Setting the Measurement Conditions (When you want to customize the settings)
4
The trigger function is disabled (Off) when the instrument is shipped from the factory
or the settings are restored to the default settings. Before setting trigger conditions,
enable the trigger function (On).
The trigger can be enabled in the [Wave+Trg] display, [CH] screen, and [Trig]
screen.
You can set the timing (starting and stopping of
measurement) for enabling the trigger. This can
be set only for the Real-time Function.
This can be set on the [Trig] screen and
[Wave+Trg] display.
Enabling the Trigger Function
1
2
(Open/confirm the setting information.)
Select from the setting options of
[Trig Func] ([Trig] screen).
Setting options (∗. default setting)
Off∗, On
Select the [Trig] screen.
Setting the Trigger Timing
Recording
T
Start Stop Start/Stop
T
T T
1
2
(Open/confirm the setting information.)
Select the trigger timing from the set-
ting options of [Timing] ([Trig]
screen).
Setting options (∗. default setting)
Start∗
Use a trigger as the condition for starting
measurement.
Stop
Use a trigger as the condition for stopping
measurement.
Start/Stop
Use a trigger as the condition for starting
and stopping measurement.
Set the start/stop condition for
each input signal.
Only the start/stop condition se-
lected for the timing is enabled.
See: "Types of trigger for
which [Timing] can be
set" (p. 112)
Select the [Trig] screen.
If you selected [Start & Stop] for the trigger timing, there will be a dead time
from when the start trigger is accepted until when the stop trigger is accept-
ed. The dead time will be whichever is the longer of 1 ms and a two sample
portion.
