Hioki MEMORY HiCORDER MR8880 User Manual

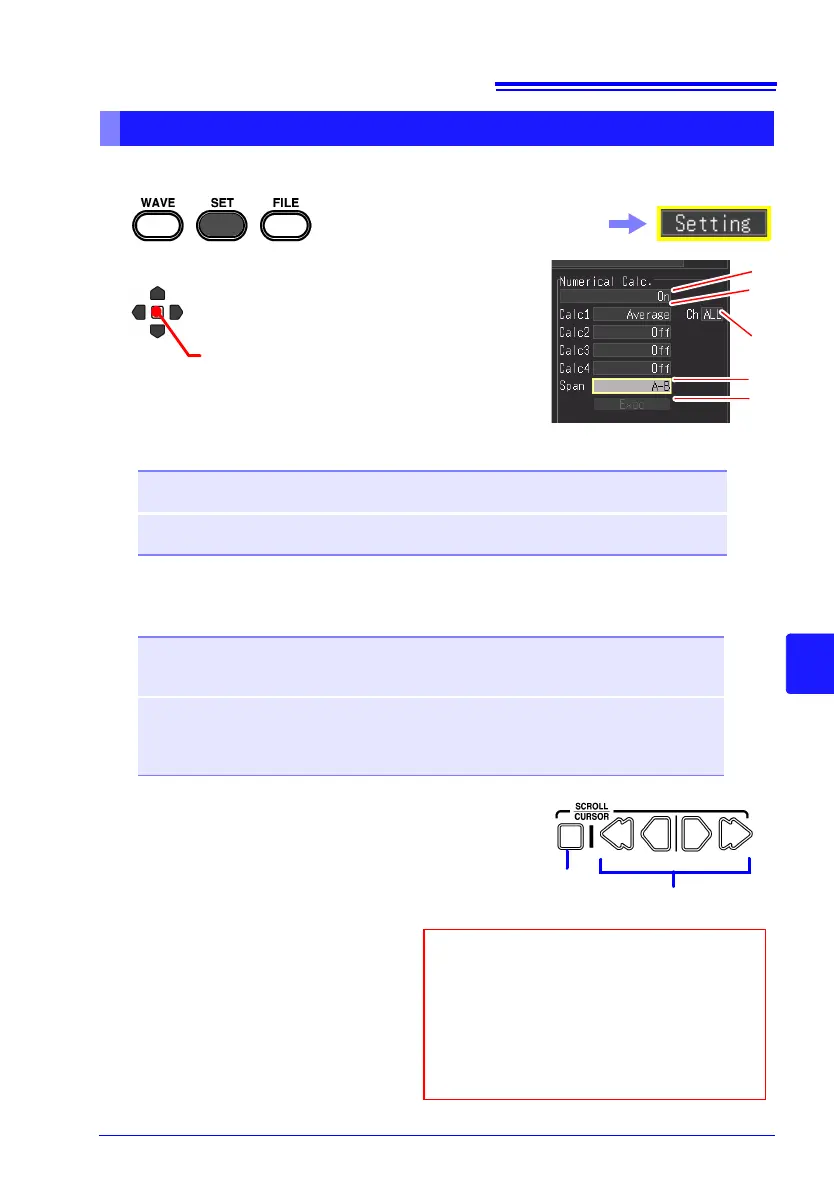

8.3 Calculating after Measurement (Manual Calculation)
183
Chapter 8 Numerical Calculations
8
Apply Calculations to a Specific Time Span
2
3
Set [Numerical Calc.] to [On].
4 Select the calculation type for each of calculations 1 to 4.
Setting options (∗. default setting)
(*1). This cannot be set when [Envelope: On].
5 Select each of the calculation targets for the [Ch] setting items.
Setting options (∗. default setting)
6 Select [A-B] from [Range].
7 Switch to [Cursor] display.
8 Use the left and right scroll keys to move
cursor A or B to specify the
range to calculate.
To select which cursor to move
(p. 140)
9 Select [Exec] to execute the
calculation.
The numerical calculation results
appear.
[Highspeed]
Average, P-P, Maximum, Minimum, Time To Max,
Time To Min, RMS, Period, Frequency, Area, X-Y Area, Off∗
[Realtime]
Average (*1), P-P, Maximum, Minimum, Time To Max,
Time To Min, Off∗
Calculation item
other than X-Y
area value
CH1, CH2, CH3, CH4, ALL∗
X-Y area value In the case of calculating the X-Y area, you can set each of the X
axis and Y axis.
X: CH1∗, CH2, CH3, CH4
Y: CH1, CH2, CH3, CH4, ALL∗
In the following steps, use the cursor keys in the same way
to configure settings.
1
Start and finish measuring.
(Open/confirm the setting information.)
8
7
Select the [Setting] screen.
3
4
5
6
9
This can also be set in the waveform
[Wave+Calc] screen. However, the items
that can be set are limited.
Settable items:
Numeric calculation: On/Off, Calculation
range selection: All data/Between A and B,
Execute calculation
