5.3 Synthesizing Waveforms (X-Y Synthesis)
145
Chapter 5 Waveform Analysis
5
Up to four measured waveform data can be synthe-
sized in any channel combination ([Highspeed] only).
You can also specify a waveform range and then per-
form synthesis (partial synthesis).
When you want to perform synthesis during measure-
ment, configure the settings on the setting screen before measurement (p. 94).

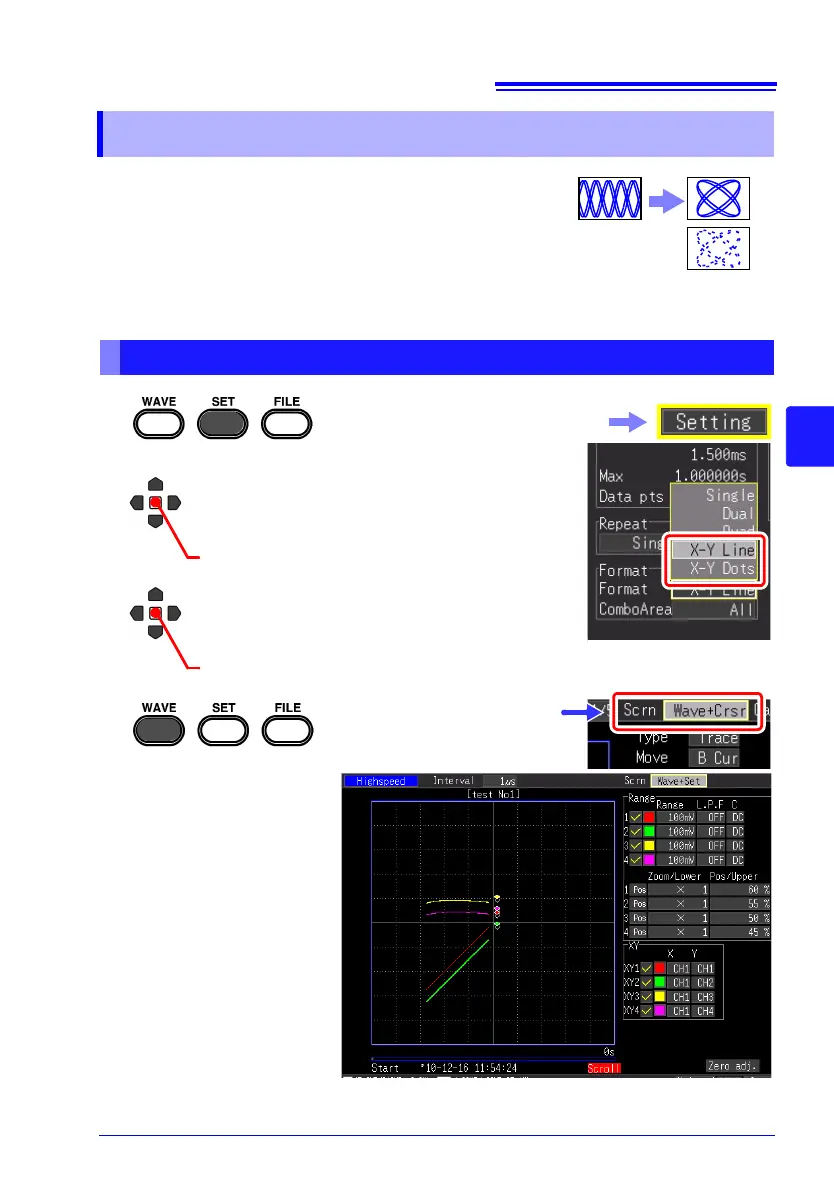

5.3 Synthesizing Waveforms (X-Y Synthesis)
Synthesizing All Acquired Data
1
2
Select [X-Y Line] or [X-Y Dots] from
the setting options of [Format].
3
Select [All] from the setting options
of [ComboArea].
Apply
(Open/confirm the setting information.)
Select the [Setting] screen.
4
Select the [Wave+Crsr]
display.
Synthesis
example
If you select [X-Y Line] or
[X-Y Dots] for the display
format, the horizontal axis
(time base) direction set-
ting will automatically
switch to [Interval] selec-
tion.
