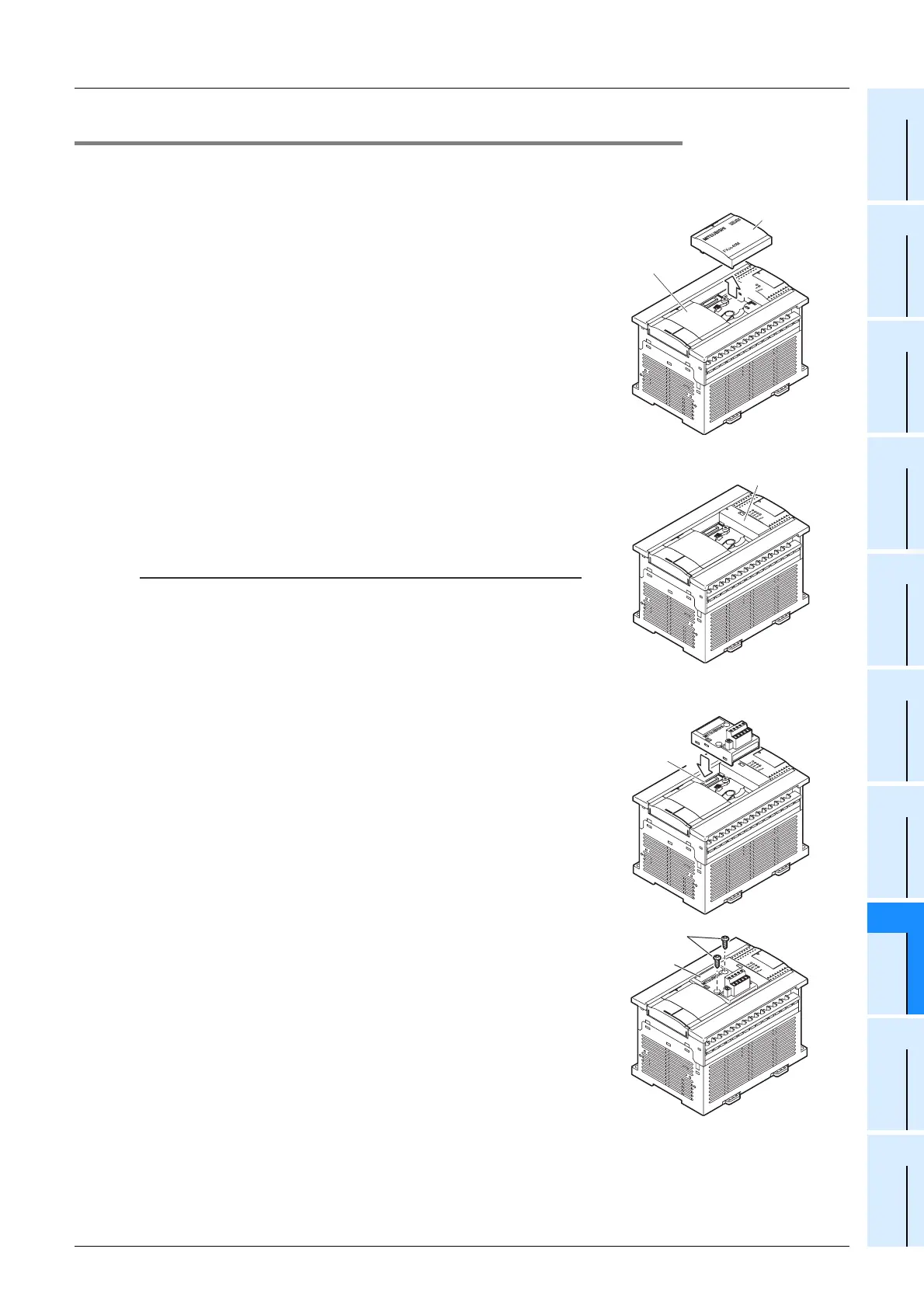

8.6.2 Connecting method A - connection of expansion board
This subsection explains how to connect the expansion board to the main unit.
The FX
3G-40MT/ES is used as the main unit in this example.
1 Remove the top cover (A in the right
figure) from the front face of the main
unit.
2 Attach the provided side cover (B in the right
figure) as shown in the right figure.
Caution
- Attachment of the side cover is not necessary when
connecting the expansion board only under the top cover (S)
of a 40/60-point type main unit.
-FX
3G-8AV-BD cannot attach in the top cover(S) side of a main
unit.
3 Connect the expansion board to the option
connector (C in the right figure).
4 Fix the expansion board (E in the right figure)
with provided M3 tapping screws (D in the
right figure) to the main unit.
• Tightening torque : 0.3 to 0.6 N•m
A
1
Top cover(S)
B
C
3
D
E
