18 Other Extension Devices and Optional Units (External Dimensions and

18.3 Expansion Board

264

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

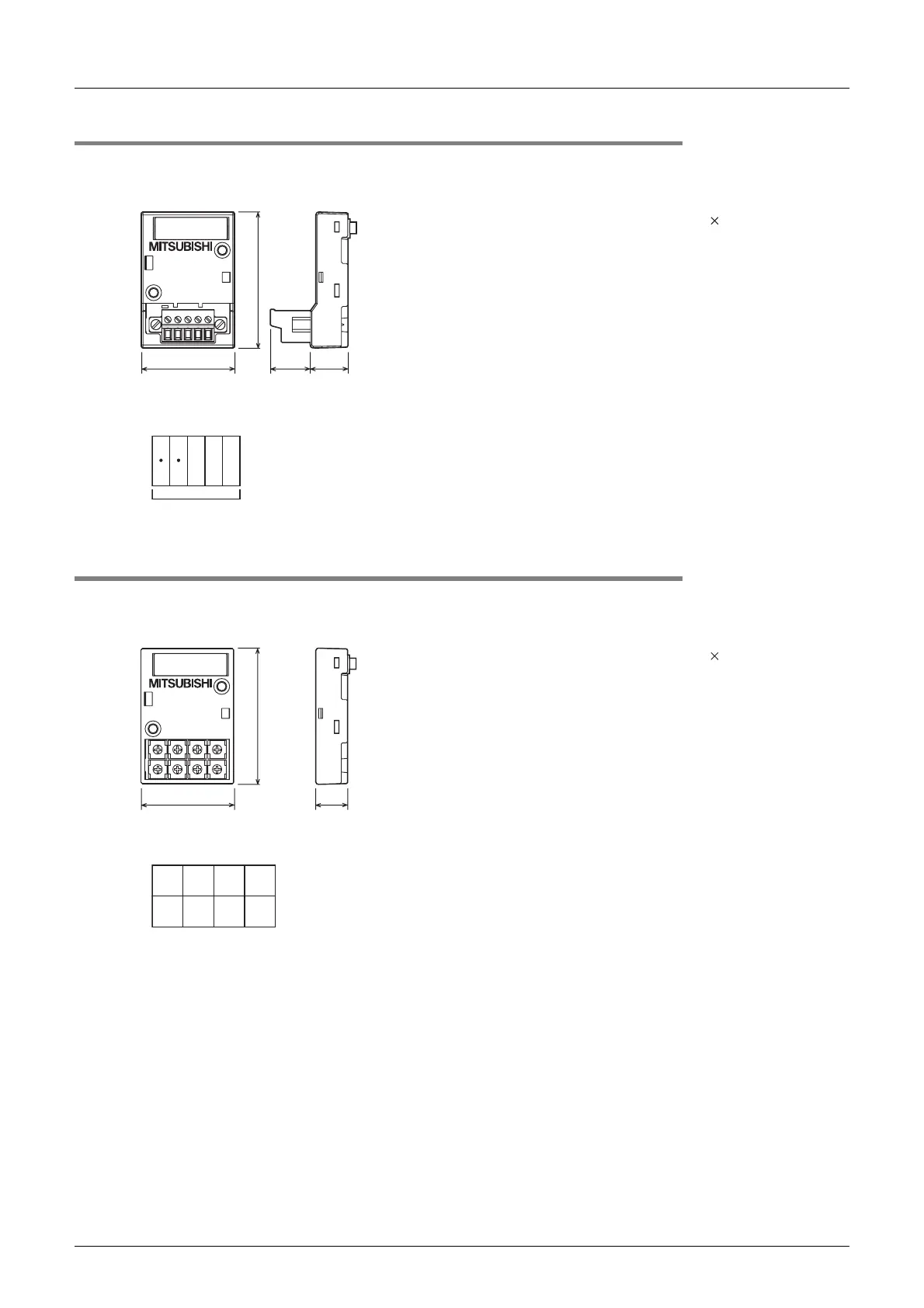

18.3.5 FX3G-1DA-BD

External Dimensions

• MASS(Weight): 20g (0.05lbs)

• Accessories: Two M3 8 tapping screws

(for installation of board),

Side cover,

Manual supplied with product

• Terminal block: European type

Terminal Layout

18.3.6 FX3G-8AV-BD

External Dimensions

• MASS(Weight): 20g (0.05lbs)

• Accessories: Two M3 8 tapping screws

(for installation of board),

Side cover,

Trimmer layout label,

Manual supplied with product

Trimmer Layout

Unit:mm (inches)

35(1.38")

14.1

(0.56")

15.1

(0.6")

51.2(2.02")

POW

V+

I+

VI-

5 poles

Unit: mm(inches)

35(1.38") 12

(0.48")

51.2(2.02")

VR0 VR3VR2VR1

VR4 VR7VR6VR5
