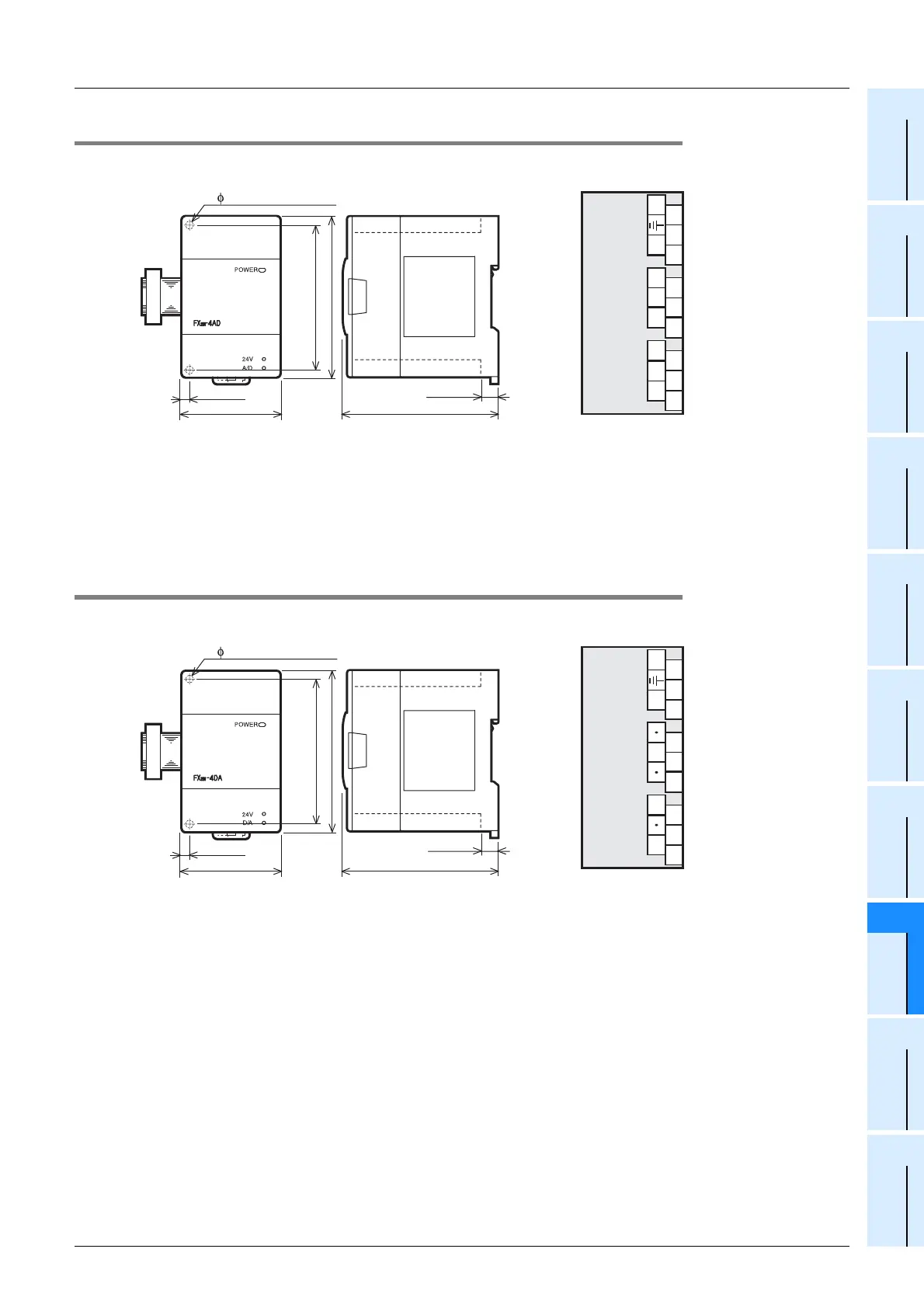

18.1.5 FX2N-4AD
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
18.1.6 FX2N-4DA
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24- V+ I+
VI- FG
V+ I+ V+
FGVI- VI-
I+ V+ I+
VI-FG
CH1 CH2 CH3 CH4
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24- V+ I+
VI-
V+ I+ V+
VI- VI-
I+ V+ I+
VI-
CH1 CH2 CH3 CH4
