Mitsubishi FX3G Series User Manual

12 Output Wiring Procedures
12.3 External Wiring for Triac (SSR) Output Type
151
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

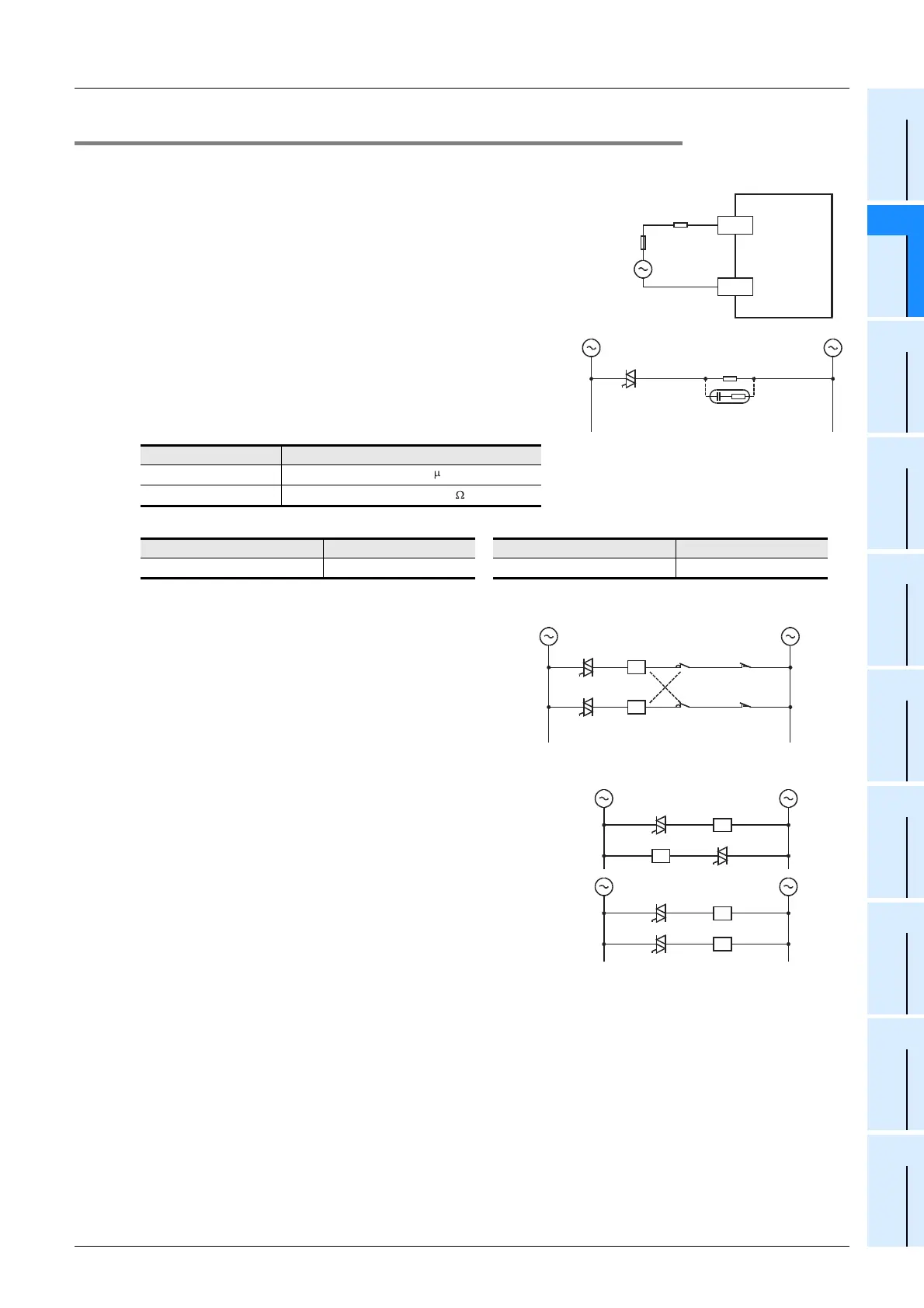

12.3.2 External wiring precautions
1. Protection circuit for load short-circuits
A short-circuit at a load connected to an output terminal could
cause burnout at the output element or the PCB. To prevent this,
a protection fuse should be inserted at the output.
2. Micro current load
The PLC's internal Triac output circuit is equipped with a turn-off
C-R absorber. When connecting a very low current load of
"0.4VA/100V AC or less, or 1.6VA/200V AC or less", please
connect a surge absorber parallel to the load.
Select the rated voltage of a surge absorber that is suitable for the
load being used. Refer to the table below for other specifications.
Reference
3. Interlock
For loads such as forward/reverse contactors, etc., where
a hazardous condition could result if switched ON
simultaneously, an external interlock should be provided
for interlocking the PLC's internal programs as shown to
the right.
4. In-phase
PLC output contacts (*) should be used in an "in-phase"
manner.
Item Guide
Static electricity capacity Approx. 0.1 F
Resistance value
Approx. 100 to 200
Manufacturer Model name Manufacturer Model name
Okaya Electric Industries Co., Ltd. CR-10201 Rubycon Corporation 250MCRA104100M B0325
PLC
COM1
Load
Fuse
Y
Micro current load
Surge
absorber
Inter-
lock
Normal
rotation
Reverse
rotation
Limit of normal
rotation
PLC output
element
Limit of reverse
rotation
Bad
*
*
*
*
Good
