18.3 Expansion Board

18.3.1 FX3G-232-BD

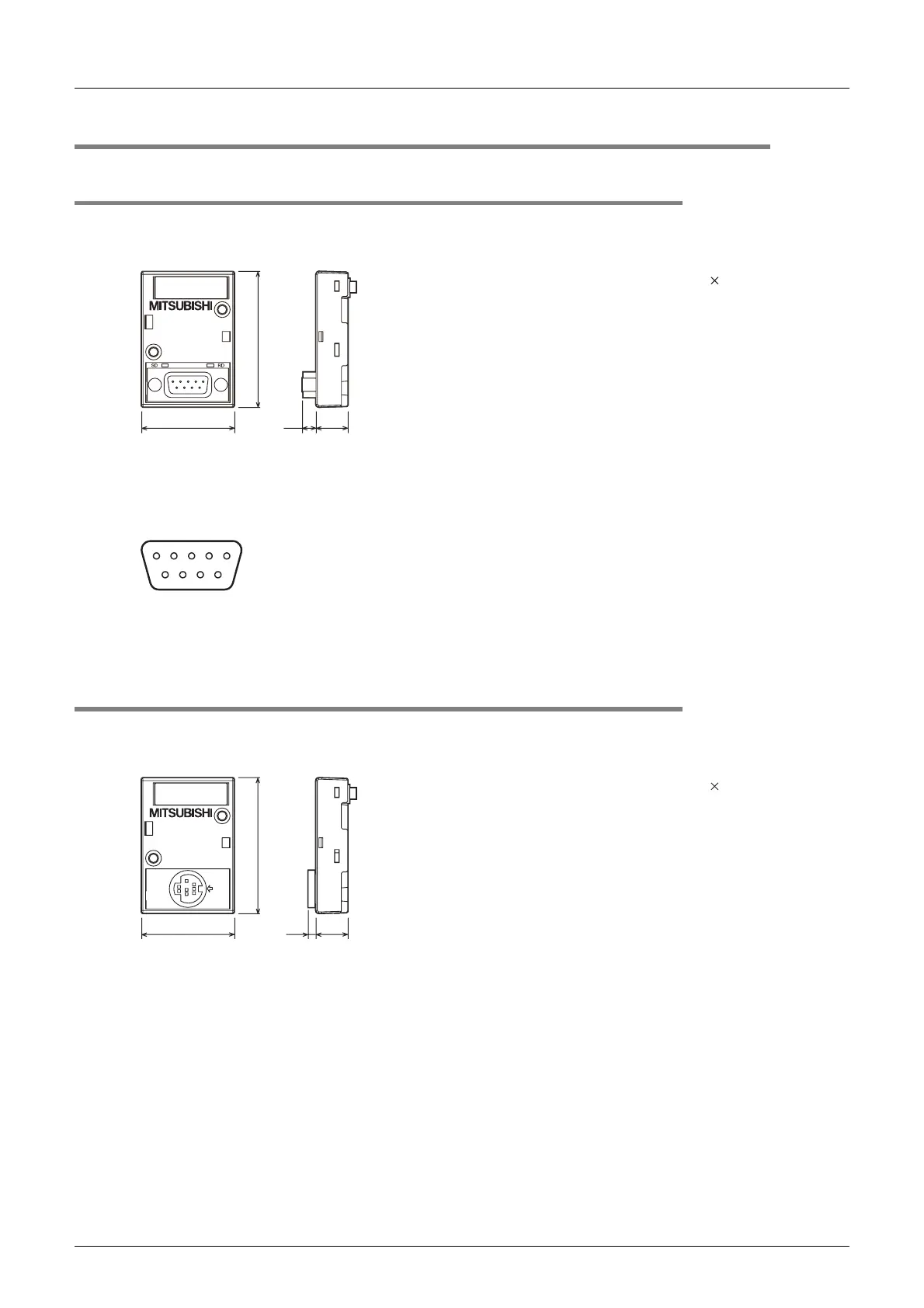

External Dimensions

• MASS(Weight): 20g (0.05lbs)

• Accessories: Two M3 8 tapping screws

(for installation of board),

Side cover,

Manual supplied with product

• Connector: RS-232C

(D-SUB 9-pin, male)

Terminal Layout

18.3.2 FX3G-422-BD

External Dimensions

• MASS(Weight): 20g (0.05lbs)

• Accessories: Two M3 8 tapping screws

(for installation of board),

Side cover,

Manual supplied with product

• Connector: RS-422

(MINI DIN 8-pin, female)

Unit:mm (inches)

35(1.38")

(0.48")

5.2

(0.21")

51.2(2.02")

1 CD(DCD)

2 RD(RXD)

3SD(TXD)

4 ER(DTR)

5 SG(GND)

6 DR(DSR)

7 Not used

Not used

12345

6789

Unit:mm (inches)

35(1.38")

(0.48")

2.9

(0.12")

51.2(2.02")
