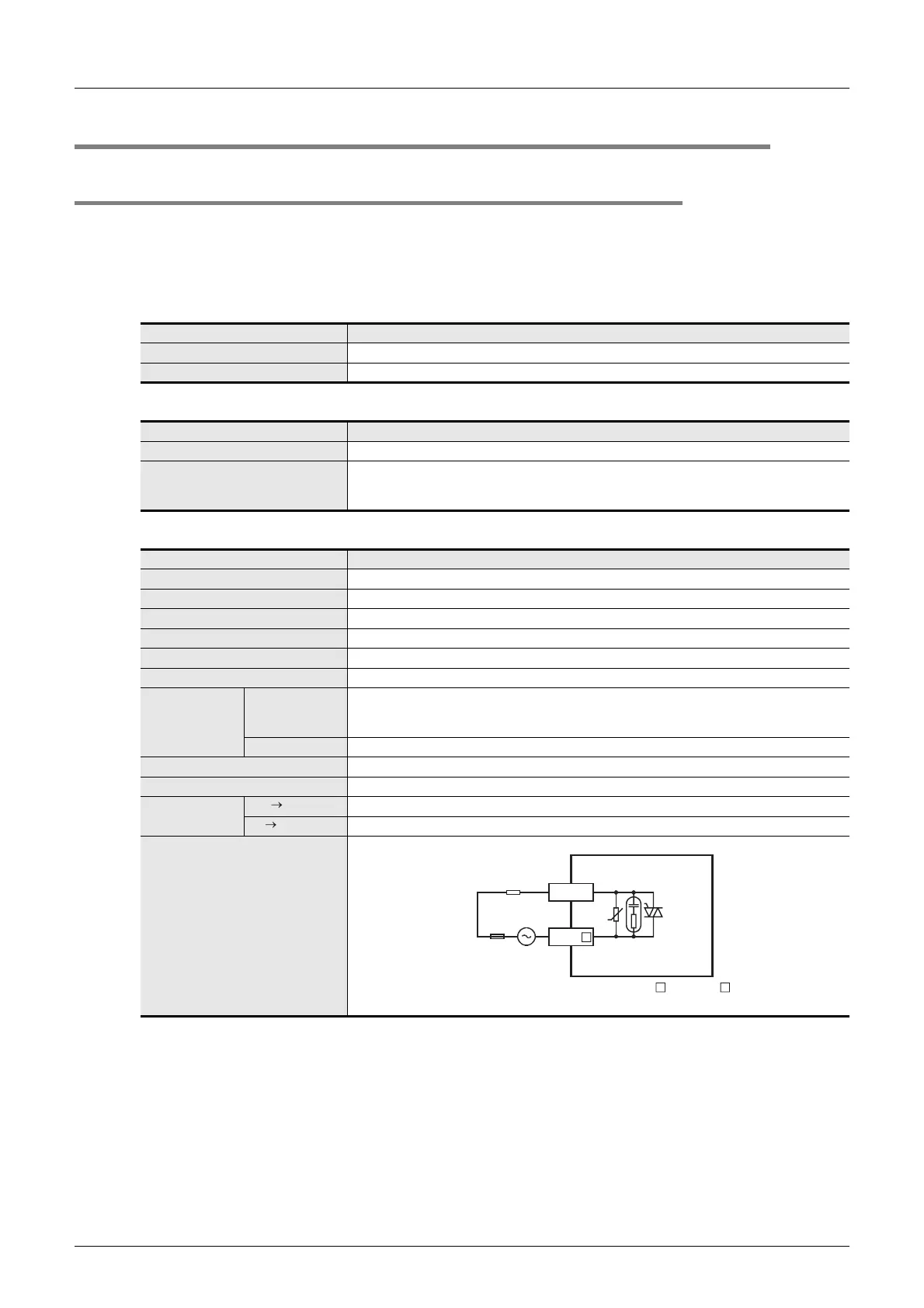

Mitsubishi FX3G Series User Manual

16 Input/Output Extension Blocks
16.13 FX2N-16EYS (Triac Output: 16 Points)
246
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
16.13 FX2N-16EYS (Triac Output: 16 Points)
16.13.1 Product specifications
The generic specifications are identical to the main unit specifications.
→ Refer to Section 4.1 for generic specifications.
For external wiring, refer to the following chapters.
→ Refer to Chapter 12 for output wiring.
1. Power supply specifications
2. Weight and Other specifications (External dimensions are described later.)
3. Output specifications (Triac output type)
Item FX2N-16EYS
Product type FX2N extension block
Rated voltage 24V DC (supplied from main unit and input/output powered extension unit)
Item FX2N-16EYS
MASS (Weight) 0.3kg (0.66lbs)
Other
• The extension cable is already connected to the extension block.
• Accessories: Label for indication of input/output number
• The DIN46277 rail (width: 35 mm (1.38")) or direct installation.
Item FX2N-16EYS
Output Points 16 points
Connection type Vertical terminal block (M3 screws)
Output type Triac output (SSR)
External power supply 85 to 242V AC
Output circuit insulation Photo-coupler insulation
Indication of output operation Activation of the photo-thyristor will light the LED indicator lamp on panel.
Max. load
Resistance load
0.3A/point
The total load current per common should be as follows:
• 8 output points/common: 0.8A or less
Inductive load 15VA/100V AC, 30VA/200V AC
Open circuit leakage current 1mA/100V AC, 2mA/200V AC
Min. load 0.4VA/100V AC, 1.6VA/200V AC
Response time
OFF ON 1ms or less
ON OFF 10ms or less
Output circuit configuration
A
common number applies to the of [COM ].
U
Load
Fuse
Y
COM
AC power
supply
