2 Features and Part Names
2.2 Names and Functions of Parts
27
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
1
Introduction
2
Features and Part Names
3
Product Introduction
4
Specifications
5
Version and Peripheral Devices
6
System Configuration
7
Input/Output Nos., Unit Nos.
8
Installation
9
Preparation and Power Supply Wiring
10
Input Wiring

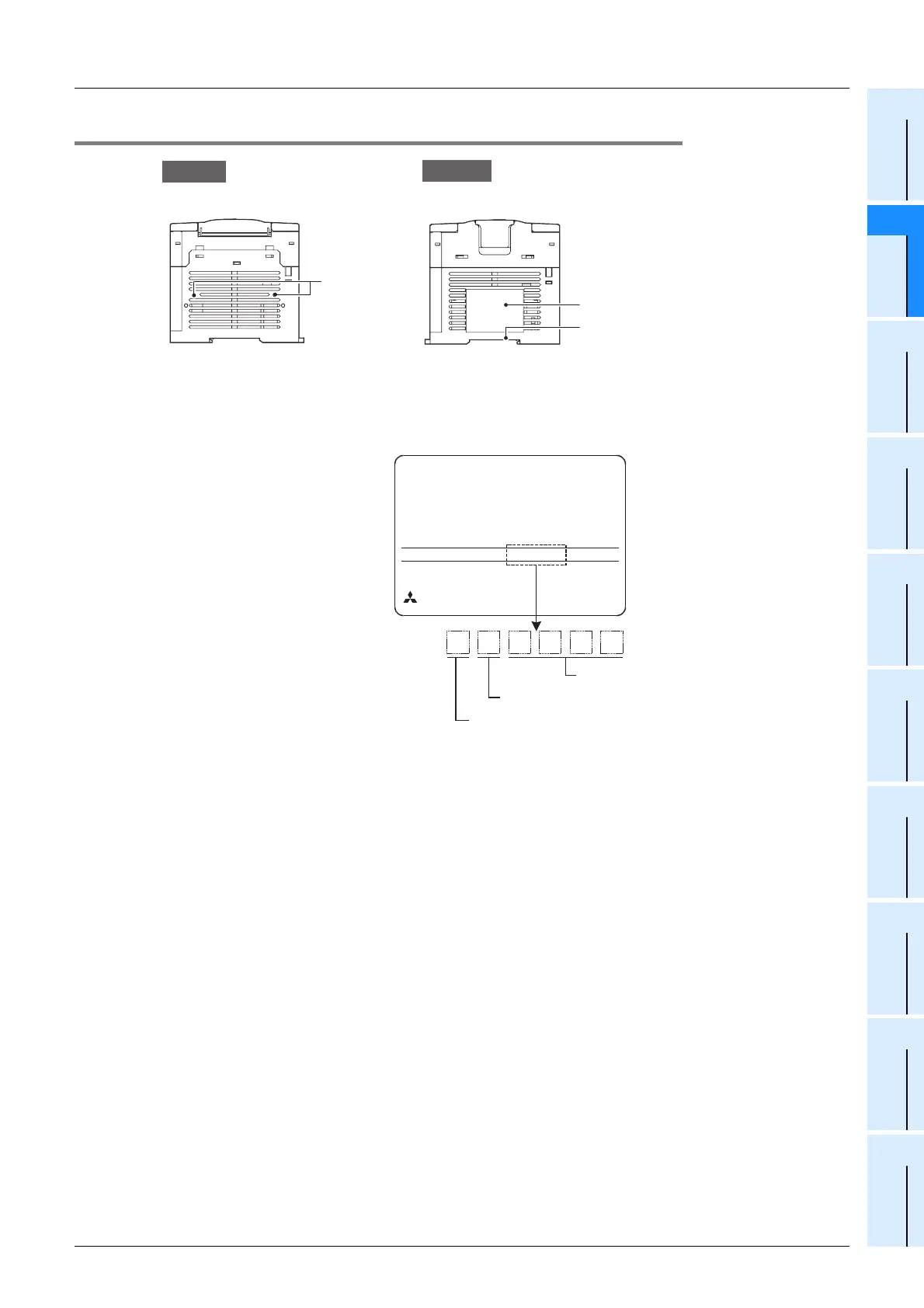

2.2.2 Sides
Left side
[1]
[2]
[3]
Right side
[1] Connector conversion adapter
connecting screw holes1 (2 places)
These holes are designed to secure the connector conversion adapter with screws.
[2] Nameplate The product model name, control number and power supply specifications are shown.
[3] DIN rail mounting groove The unit can be installed on DIN46277 rail (35 mm (1.38") wide).
OUT:5~30VDC 0.5A
8 X 0 0 0
Control number
Year (Example: 2008): Last digit of year
1
Month (Example: Oct.):(1 to 9 = January to September,
X = October, Y = November, Z = December)
MITSUBISHI
MODEL
100-240VAC 50/60Hz 37W
FX 3G -40MT/ES
PROGRAMMABLE
CONTROLLER
8X0001
MADE IN JAPAN
Example: FX 3G -40MT/ES (manufacturer's serial number: 8X0001)
SERIAL
MITSUBISHI ELECTRIC CORPORATION
