19 Display Module(FX3G-5DM)
19.2 Installation and Removal
270
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
19.2.2 Installation
(when the expansion board/connector conversion adapter is used together)
The FX3G-40MT/ES is used as the main unit and the expansion board is used together in this example.

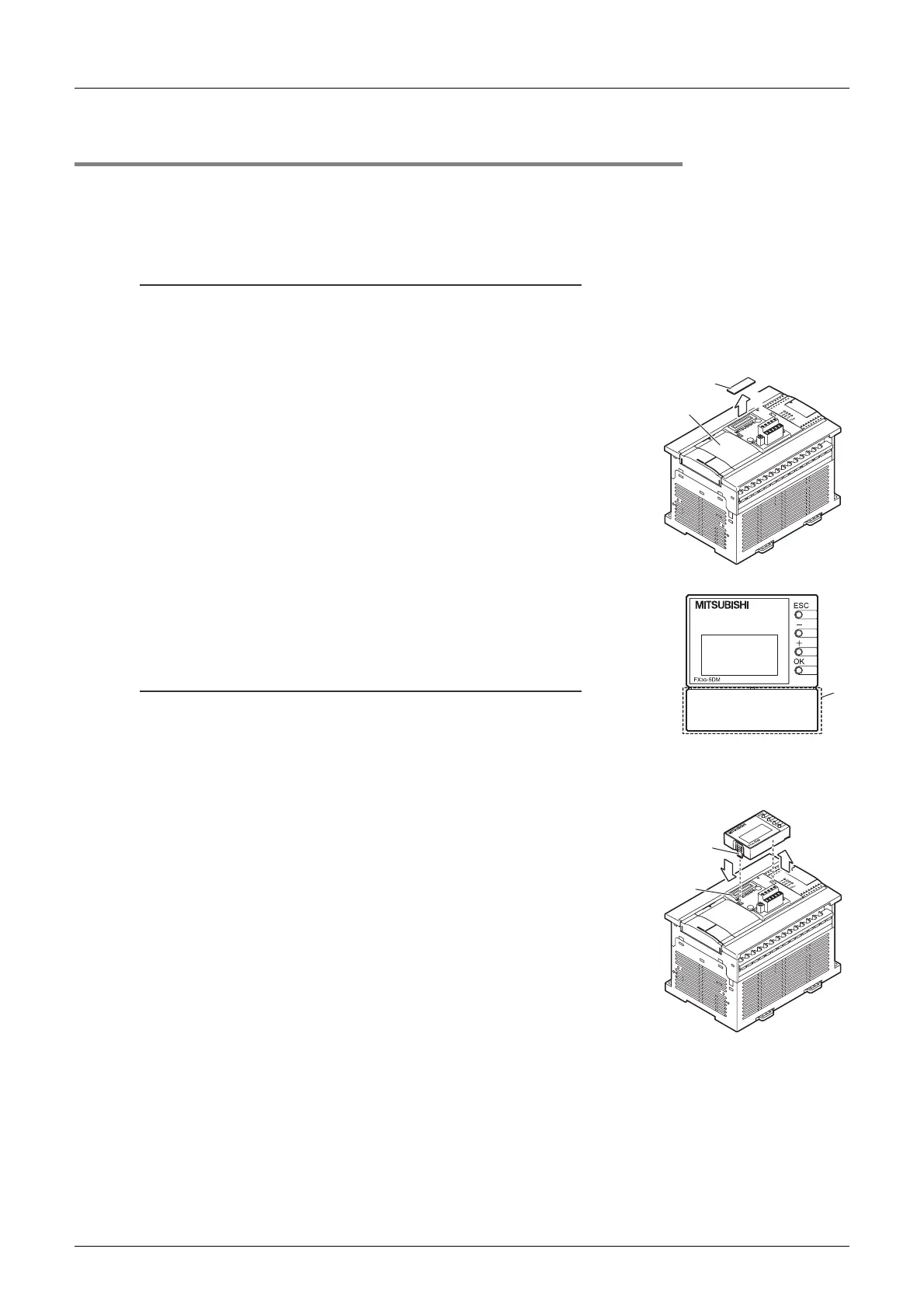

1 Attach the expansion board/connector conversion adapter to the main unit.
→ For the attachment method, refer to Chapter 8.
Caution:
- Make sure to attach the expansion board/connector conversion adapter before the display module.
- The display module cannot be attached to the expansion board/connector conversion adapter attached
on the top cover (S) side of the 40/60-point type main unit.
2 Remove the upper connector cover (A in the
right figure).
3 Remove the part B shown in the right figure
using a snipper, etc.
Caution:
Removal of the part B is not necessary when the connector
conversion adapter is used together and the main unit is the 14/24-
point type.
4 Attach the display module to the option
connector of the expansion board/connector
conversion adapter.
Attach the display module to the option connector (D in the
figure on the right) of the expansion board/connector conver-
sion adapter while pressing and holding the display module
fixing hook (C in the figure on the right) as shown in the right
figure (arrow 4).
Remove the display module while pressing and holding the
display module fixing hook (C in the figure on the right) as
shown in the right figure (arrow 4').
2
A
Top cover (S)
B
D
4
4'
C
