16 Input/Output Extension Blocks

16.12 FX2N-8EYT-H (Transistor Output)

245

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

High-Speed

Counters

Output Wiring

Wiring for

Various Uses

Test Run,

Maintenance,

Troubleshooting

Input/Output

Powered

Extension Units

Input/Output

Extension

Blocks

Extension

Power Supply

Unit

Other Extension

Units and

Options

Display Module

Terminal Block

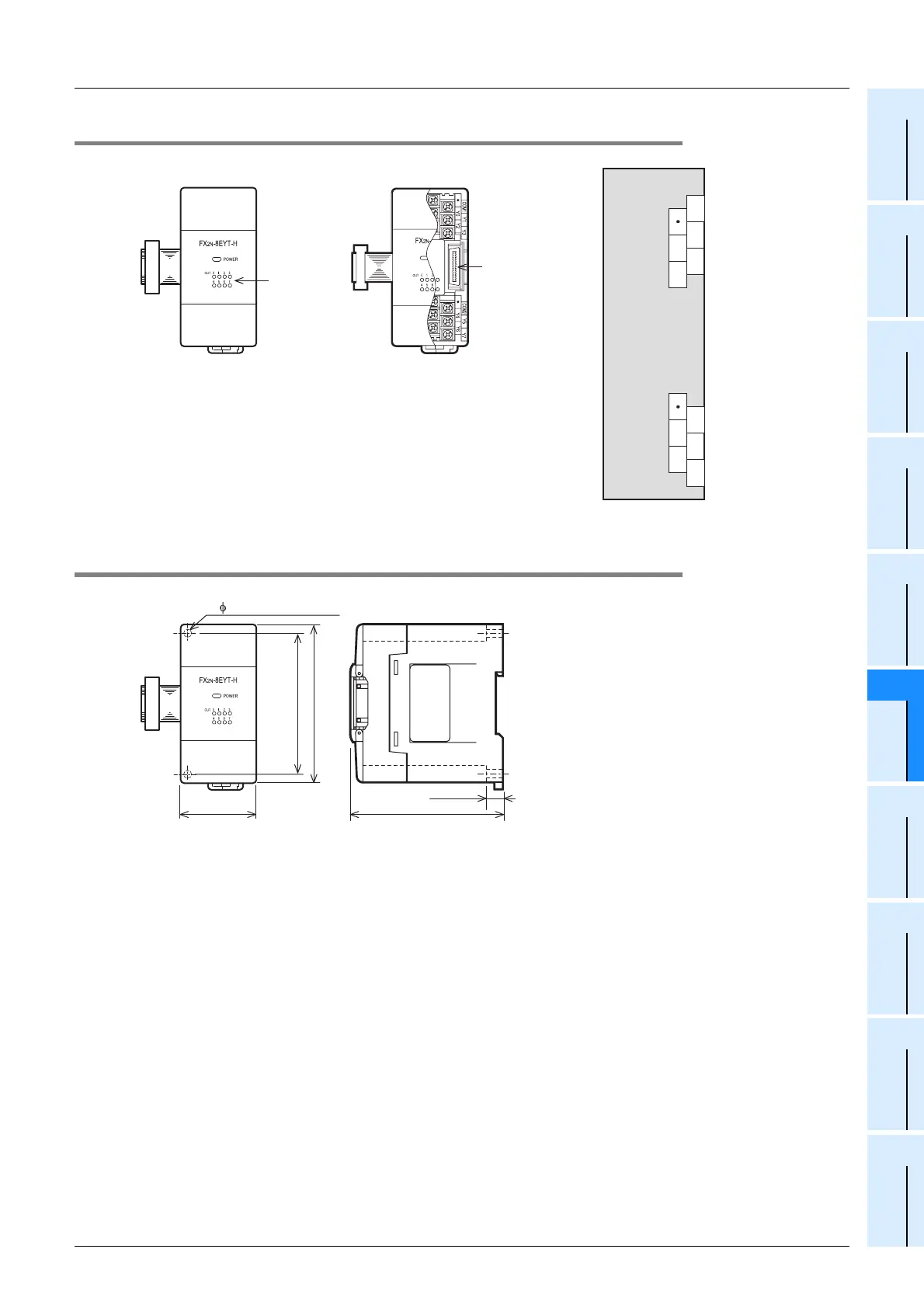

16.12.2 Parts identification and terminal arrangement

16.12.3 External dimensions

With cover

Output

indicator

lamps

(LED lamps)

Without cover

Rear line

extension

connector

Y2 Y4

COM1

COM2

43(1.7")

87(3.43")

80(3.15")

(mounting hole pitch)

90(3.55")

Unit:mm (inches)

9(0.36")

2- 4.5 mounting holes
